Scaffolding Handrail Post with Platform Protection – 100/73
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list

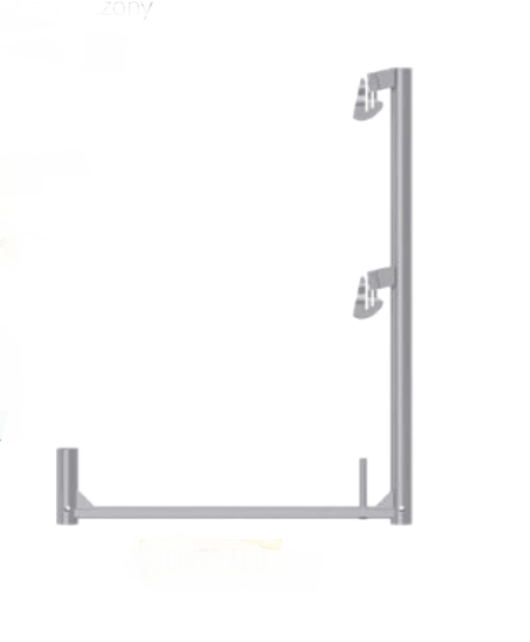

Scaffolding Handrail Post with Platform Protection – 100/73 (H1000 × W780 mm)
Secure Guardrail Installation for Top Scaffolding Levels
The Handrail Post with Platform Protection is a key safety component used to mount guardrails on the top scaffolding tier (excluding extreme fields). It is designed for direct installation on frame pins, ensuring fast setup and reliable stability for elevated work areas.
Key Features
- Designed for top-tier scaffolding guardrail installation
- Direct mounting on frame pins
- Integrated pockets with wedges for handrail fixing
- Crossbar with pin support for toe board (curb) installation
- Available in galvanized steel and aluminum
- Compatible with additional protective grating (versions 200/73 & 200/109)
Technical Specifications
Steel Galvanized Version (100/73)
| Specification | Value |
|---|---|
| System Height | 1000 mm |
| System Width | 732 mm |
| Overall Height | 1000 mm |
| Overall Width | 780 mm |
| Weight | 5.5 kg |
| Material | Galvanized Steel |
Aluminum Version (100/73)
| Specification | Value |
|---|---|
| System Height | 1000 mm |
| System Width | 732 mm |
| Overall Height | 1000 mm |
| Overall Width | 780 mm |
| Weight | 2.3 kg |
| Material | Aluminum |
Construction & Design
- Composed of:
- Vertical stand (post)
- Integrated sockets connected by a crossbar
- Stand includes wedge-lock pockets for secure handrail assembly
- Crossbar allows toe board (curb) installation via locking pin
Functional Advantages
- Provides safe edge protection on upper scaffold levels
- Enables quick and secure installation of handrails and toe boards
- Lightweight aluminum option for easy handling and transport
- Galvanized steel version ensures long-term corrosion resistance
- Enhances compliance with working-at-height safety standards

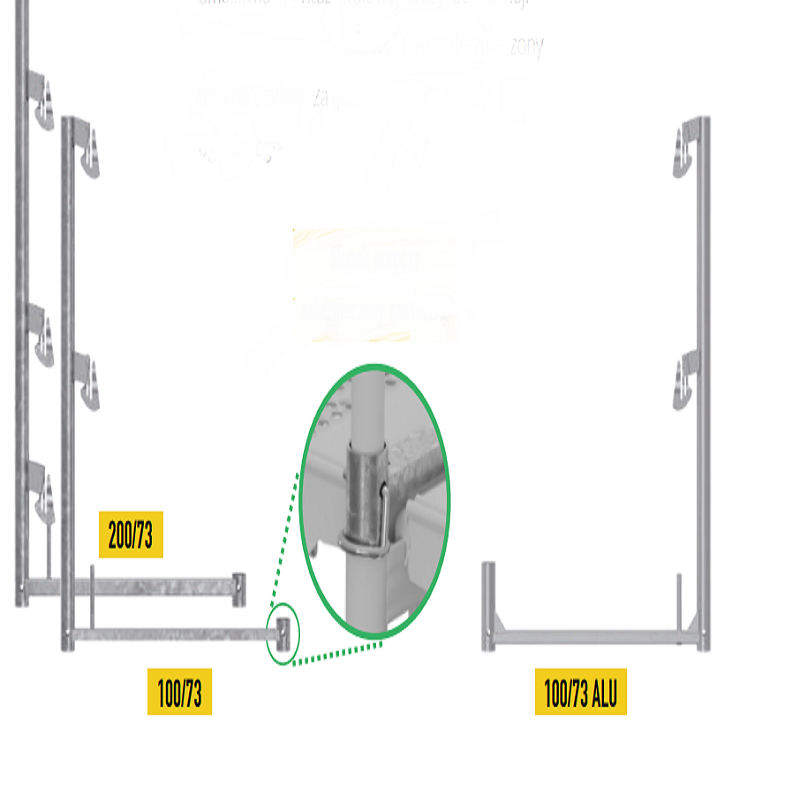

Optional / Extended Versions
- 200/73 and 200/109 versions
- Allow installation of steel protective grating
- Additional safety for high-risk working environments
Applications
- Construction scaffolding systems
- Building façade works
- Industrial maintenance at height
- Renovation and installation projects
- Temporary access and safety structures
Advantages
- Fast installation on standard scaffold frames
- High safety performance for top-level work
- Durable materials for indoor and outdoor use
- Flexible system compatibility
- Reduced installation time on-site
Contact Us for Orders & Technical Support
- Email: [email protected]
- Call: +971 44058154
- WhatsApp: +971543554679
SALESBRIDGES supplies reliable scaffolding safety components tailored to your project requirements. Contact us today for pricing and system compatibility.
| Brand | Salesbridges |
| Article code | SBSCT2409100 |
| SKU | SBSCT2409100 |
| EAN | 9501485389525 |
