Scaffolding Side Protection Handrail – Galvanized Steel
Galvanized side protection made of tubing 38 mm diameter , flattened at both ends. 3105mm overall length.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list

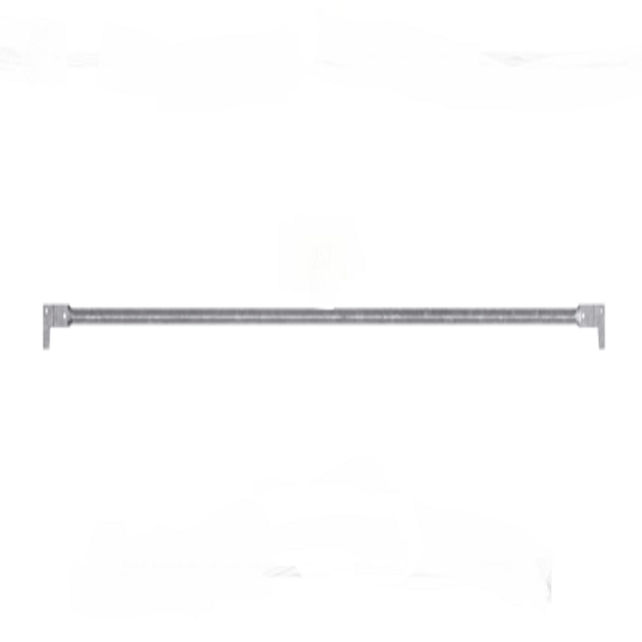

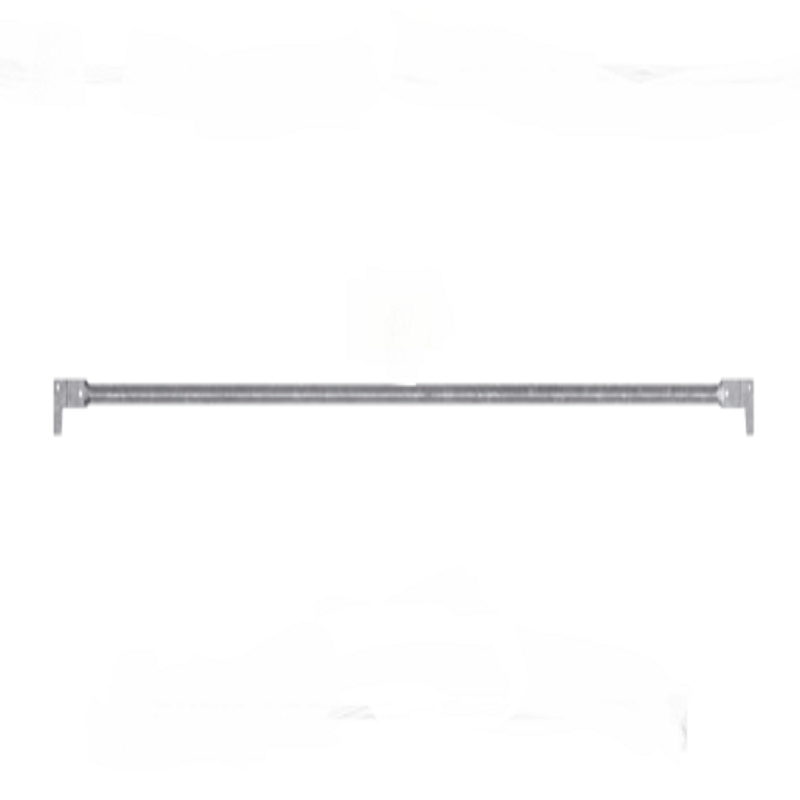

Scaffolding Side Protection Handrail – Galvanized Steel 3072 mm (Ø38 mm)
Reliable Edge Protection for Scaffolding Systems
The Scaffolding Side Protection Handrail is a critical safety component designed to form complete guardrail systems on scaffolding platforms. It functions as both the main railing and intermediate railing, ensuring maximum protection against falls.
Key Features
- Length: 3072 mm (System) / 3105 mm (Overall)
- Pipe diameter: 38 mm
- Lightweight yet durable (5.4 kg)
- Made from galvanized steel for corrosion resistance
- Compatible with standard scaffolding systems
- Quick installation using wedge-lock system
Technical Specifications
| Specification | Value |
|---|---|
| System Length | 3072 mm |
| Overall Length | 3105 mm |
| Pipe Diameter | 38 mm |
| Weight | 5.4 kg |
| Material | Galvanized Steel |
Construction & Design
- Manufactured from high-strength steel tubing
- Ends are flattened and fitted with welded plates
- Designed for insertion into pockets with wedge locking system
- Ensures secure and rigid connection to scaffold structures
Functional Role in Safety System

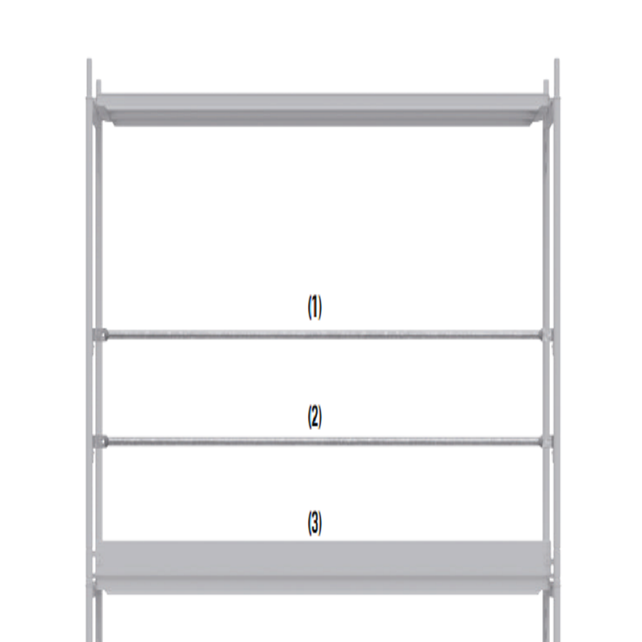

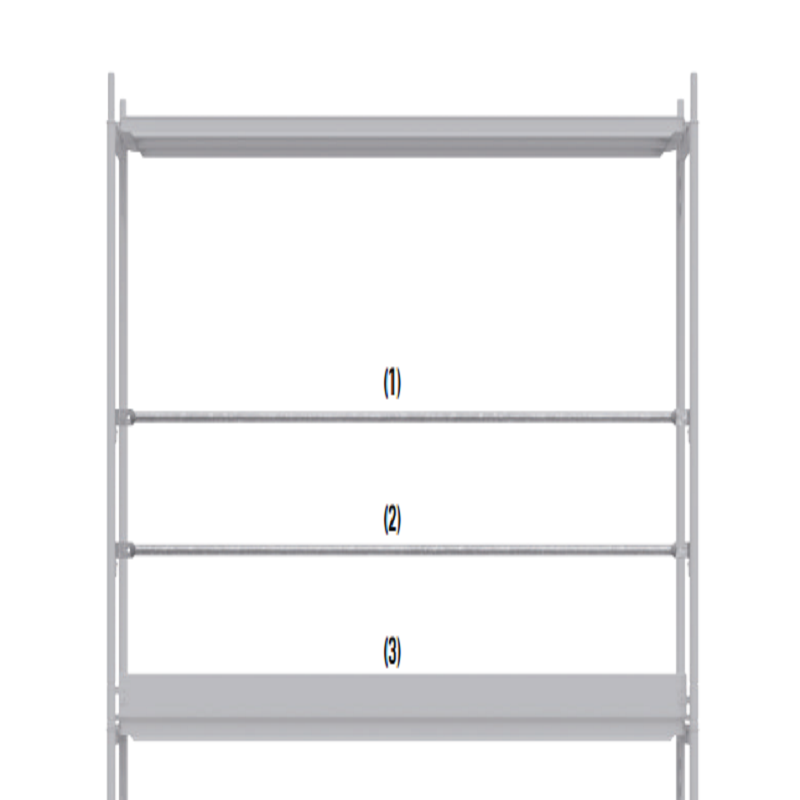

The side protection handrail forms part of a complete railing system, consisting of:
- Main railing (top guardrail)
- Intermediate railing (mid-rail)
- Toe board (curb)
Together, these elements ensure full fall protection compliance on scaffolding platforms.
Compatibility
Can be used with:
- Scaffold frames
- Handrail posts
- Handrail posts with platform protection
- Front frames
Functional Advantages
- Enhances worker safety at height
- Provides strong and stable guardrail support
- Fast and secure installation via wedge system
- Long-lasting galvanized finish for outdoor use
- Lightweight design for easy handling
Applications
- Construction scaffolding systems
- Industrial maintenance platforms
- Façade work and renovation projects
- Temporary access structures
- High-level work safety systems
Advantages
- Essential for scaffold safety compliance
- Durable and corrosion-resistant
- Easy integration into modular scaffolding systems
- Reduces fall risks and improves site safety
- Suitable for heavy-duty industrial environments
Contact Us for Orders & Technical Support
- Email: [email protected]
- Call: +971 44058154
- WhatsApp: +971543554679
SALESBRIDGES provides complete scaffolding safety systems and components. Contact us for pricing and compatibility support.
