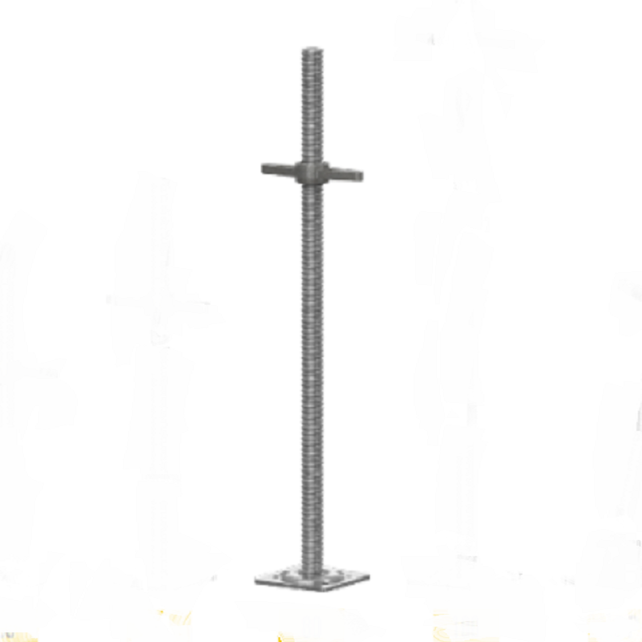

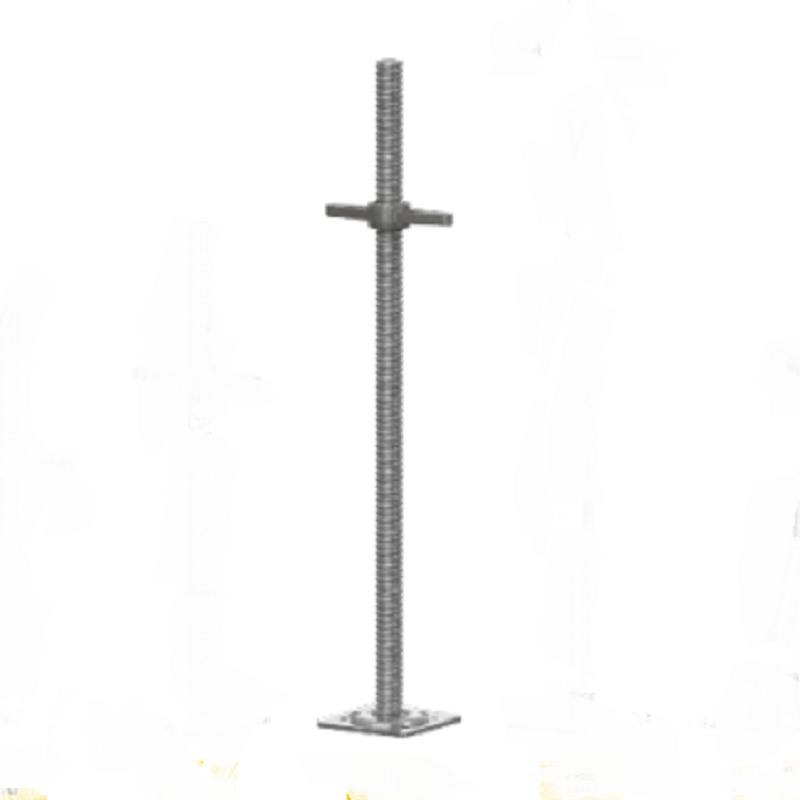

Scaffolding Screw Jack Base – Adjustable 1000 mm
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Scaffolding Screw Jack Base – Adjustable 1000 mm (Max Adjustment 750 mm)
Stable and Adjustable Foundation for Scaffolding Systems
The Scaffolding Screw Jack Base is an essential component designed to provide precise height adjustment and stable load distribution at the base of scaffolding structures. It ensures safe installation on uneven ground while maintaining structural integrity.
Key Features
- Adjustable height up to 750 mm
- Heavy-duty 38 mm threaded shank
- Wide base plate (150 × 150 mm) for load distribution
- Ring nut adjustment system for precise leveling
- Built-in safety limiter to prevent over-unscrewing
- Available in galvanized and zinc-plated versions
Technical Specifications
| Specification | Value |
|---|---|
| Total Height | 1000 mm |
| Max Adjustment Range | 750 mm |
| Base Plate Size | 150 × 150 mm |
| Thread Diameter | 38 mm |
| Weight (Standard) | 4.8 kg |
| Finish (Standard) | Galvanized |
| Weight (ERGO) | 4.5 kg |
| Finish (ERGO) | Zinc Plated |
Components Overview
- Base Plate
- Distributes load over a larger surface area
- Enables anchoring or wheel attachment
- Threaded Shank (Ø 38 mm)
- Provides strength and height adjustability
- Ring Nut
- Allows precise scaffold leveling
- Safety Limiter
- Prevents accidental removal of the nut
- Enhances operational safety
Functional Advantages
- Ensures stable scaffolding setup on uneven surfaces
- Improves load distribution and structural safety
- Allows accurate height adjustment during installation
- Durable anti-corrosion finishes for long service life
- Easy to install and adjust on-site
Important Note
The extension length of the screw jack directly affects the load-bearing capacity of the scaffolding base. Proper adjustment within recommended limits is essential for safe operation.
Applications
- Construction scaffolding systems
- Industrial maintenance platforms
- Temporary access structures
- Façade work and renovation
- Uneven ground scaffolding setups
Advantages
- High load-bearing capability
- Strong and reliable threaded system
- Safety-enhanced design with limiter
- Compatible with standard scaffolding systems
- Long-lasting corrosion protection
Contact Us for Orders & Technical Support
- Email: [email protected]
- Call: +971 44058154
- WhatsApp: +971543554679
SALESBRIDGES offers high-quality scaffolding components for safe and efficient construction projects. Contact us for pricing and system compatibility.
