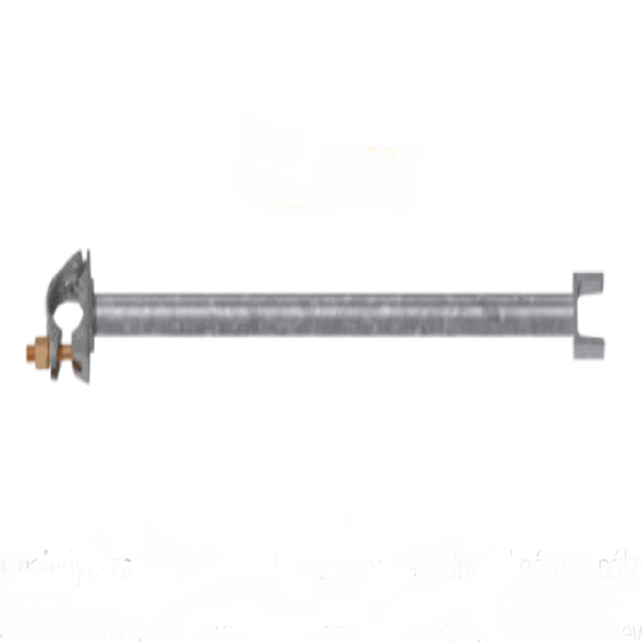

Scaffolding Single Front Guard Rail 73 – Galvanized Steel (W732 × L760 mm)
Lightweight Front Edge Protection for Scaffolding
The Single Front Guard Rail 73 is a versatile scaffolding component designed to provide front-side fall protection. It can function as either a main handrail (top rail) or an intermediate handrail (mid rail), making it a flexible solution for building complete front guardrail systems.
Key Features
- Can be used as top rail or mid rail
- Lightweight design (1.9 kg) for easy handling
- Quick installation with half-coupler and C-profile system
- Durable galvanized steel construction
- Compatible with standard scaffolding frames
Technical Specifications
| Specification | Value |
|---|---|
| System Width | 732 mm |
| Overall Length | 760 mm |
| Overall Height | 40 mm |
| Weight | 1.9 kg |
| Material | Galvanized Steel |
Construction & Design
- Made from high-strength steel pipe
- One end equipped with a half-coupler:
- Securely attaches to scaffold frame stand
- Opposite end features a C-profile:
- Fits onto the external frame stand above the handrail pocket
- Designed for quick, secure, and stable installation

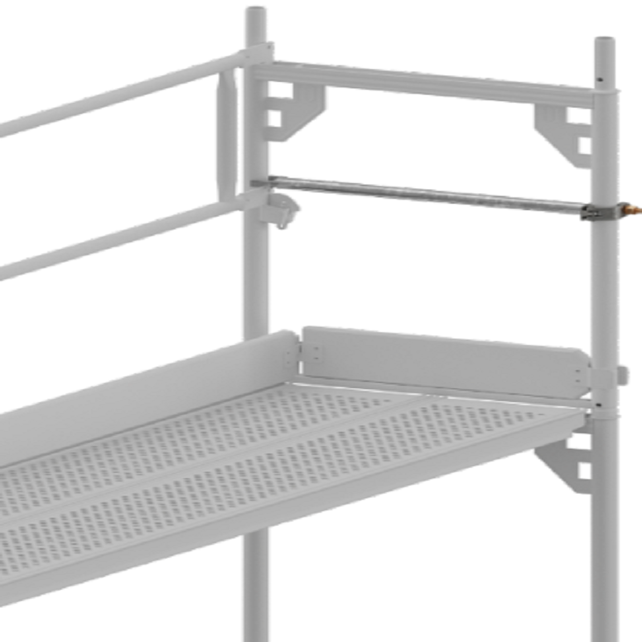

Functional Role in Safety System
The single front rail is part of a complete front protection system, consisting of:
- Main railing (top rail)
- Intermediate railing (mid rail)
- Toe board (curb)
Two single rails can be used together to form both top and mid guardrails, ensuring full compliance.
Functional Advantages
- Flexible use (top or intermediate rail)
- Fast installation and removal
- Lightweight for improved site efficiency
- Corrosion-resistant galvanized finish
- Reduces fall risk from scaffolding platforms
Applications
- Construction scaffolding
- Façade work platforms
- Industrial maintenance
- Renovation and access systems
- Temporary elevated work areas
Advantages
- Cost-effective and modular solution
- Easy integration into scaffolding systems
- Improves worker safety at height
- Durable and weather-resistant
- Ideal for both small and large scaffolding setups
Contact Us for Orders & Technical Support
- Email: [email protected]
- Call: +971 44058154
- WhatsApp: +971543554679
SALESBRIDGES offers complete scaffolding safety solutions tailored to your project. Contact us today for pricing and compatibility support.
| Brand | Salesbridges |
| Article code | SBSC2401073 |
| SKU | SBSC2401073 |
| EAN | 9509872269283 |
Steel galvanized base frame available in the standard system width of 732 mm and four heights (66, 100, 150 and 200 mm)
Aluminum and plywood platforms are used both as communication platforms (with or without an integrated ladder) as well a...

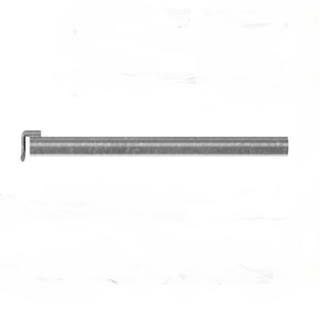

The anchoring coupler consists of a tube with an outer diameter of 48.3 mm and a bent hook in two planes.
Galvanized guard rail horizontally attached to the scaffolding frame stands on the platform side 30.7 cm overall length...

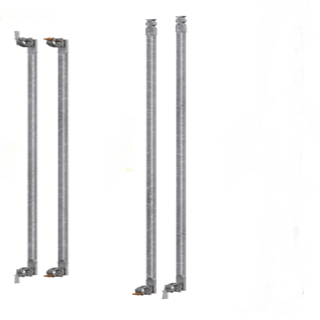

Galvanized diagonal brace 307x200 cm, 4.2 cm diameter pipe. coupling with wedge or with screw.
