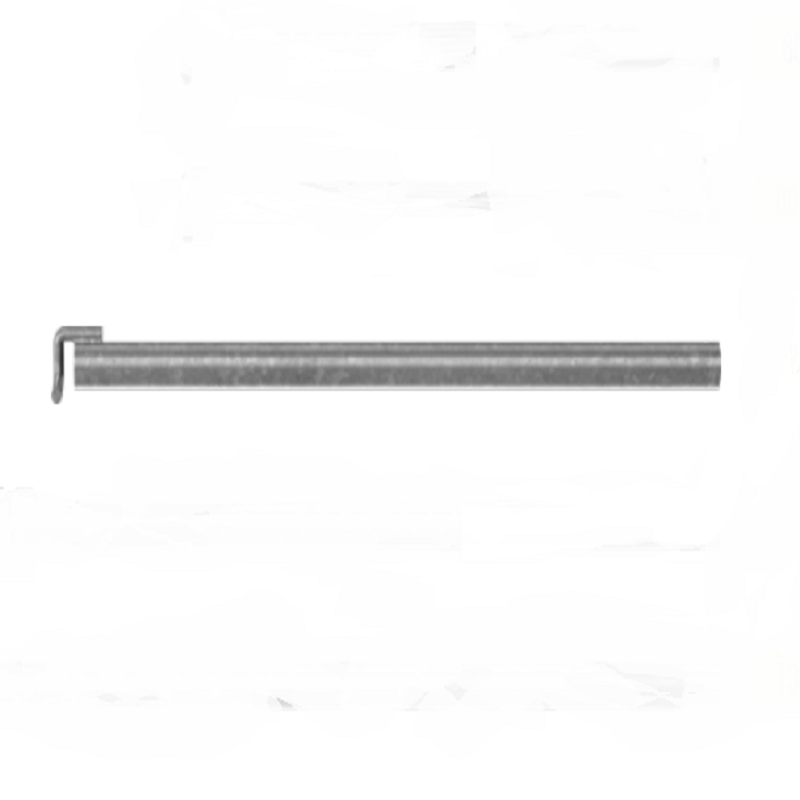

Steel Scaffolding Anchor 50 cm – Galvanized Anchor Connector
The anchoring coupler consists of a tube with an outer diameter of 48.3 mm and a bent hook in two planes.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Steel Scaffolding Anchor 50 cm – Galvanized Anchor Connector Ø48.3 mm
Secure Anchoring Solution for Scaffolding Systems
The Steel Scaffolding Anchor 50 cm is a critical safety component used to secure scaffolding structures to buildings or fixed supports. It ensures stability, load transfer, and resistance to external forces such as wind and vibration.
Key Features
- Designed for safe anchoring of scaffolding to structures
- Ø 48.3 mm high-strength steel tube (Re > 320 MPa)
- Bent hook design (multi-plane) for secure connection
- Compatible with eyebolts and expansion anchors
- Galvanized finish for corrosion resistance
- Lightweight and easy to install (1.9 kg)
Technical Specifications
| Specification | Value |
|---|---|
| System Length | 500 mm |
| Overall Length | 530 mm |
| Pipe Diameter | 48.3 mm |
| Weight | 1.9 kg |
| Material | Steel |
| Finish | Galvanized |
Construction & Design
- Manufactured from high-strength steel tube
- Features a double-bent hook for:
- Secure engagement in anchor eye bolts
- Reliable connection under load
- Hook tip fits into:
- Eyebolt anchored in concrete or structure
- Expansion plug systems
Functional Role
- Connects scaffolding to:
- Building façade
- Concrete or structural anchors
- Transfers loads safely from scaffold to structure
- Prevents:
- Scaffold displacement
- Tipping or instability
Installation Options
Standard Method
- Connected to scaffold using two swivel (cross) couplers
Alternative Version
- Anchor connector with plate support:
- Requires only one coupler
- Additional support via U-profile frame contact
- Faster installation and reduced components
Functional Advantages
- Ensures maximum scaffold stability and safety
- High load capacity due to strong steel construction
- Corrosion-resistant for outdoor use
- Flexible installation options
- Quick and reliable mounting
Applications
- Construction scaffolding systems
- Façade work and renovation
- Industrial maintenance platforms
- Temporary access structures
- High-rise building projects
Advantages
- Essential for scaffolding safety compliance
- Strong and durable anchoring solution
- Easy integration with standard scaffold systems
- Reduces risk of scaffold movement or collapse
- Long service life in harsh environments
Contact Us for Orders & Technical Support
- Email: [email protected]
- Call: +971 44058154
- WhatsApp: +971543554679
Contact SALESBRIDGES for pricing, compatibility, and complete scaffolding system solutions.
| Brand | Salesbridges |
| Article code | SBSC0700.050 |
| SKU | SBSC0700.050 |
| EAN | 9509589579545 |
Steel galvanized base frame available in the standard system width of 732 mm and four heights (66, 100, 150 and 200 mm)
Aluminum and plywood platforms are used both as communication platforms (with or without an integrated ladder) as well a...
Galvanized guard rail horizontally attached to the scaffolding frame stands on the platform side 30.7 cm overall length...
Galvanized diagonal brace 307x200 cm, 4.2 cm diameter pipe. coupling with wedge or with screw.
Double front railing 500 mm overall height

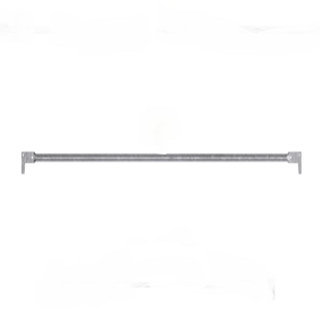

Galvanized side protection made of tubing 38 mm diameter , flattened at both ends. 3105mm overall length.

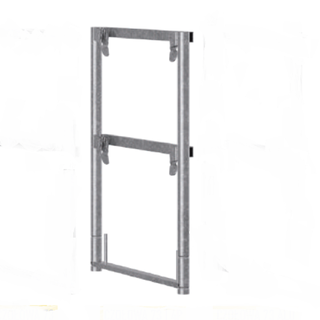

Galvanized or Aluminum front frame 100 cm height 73 cm width
