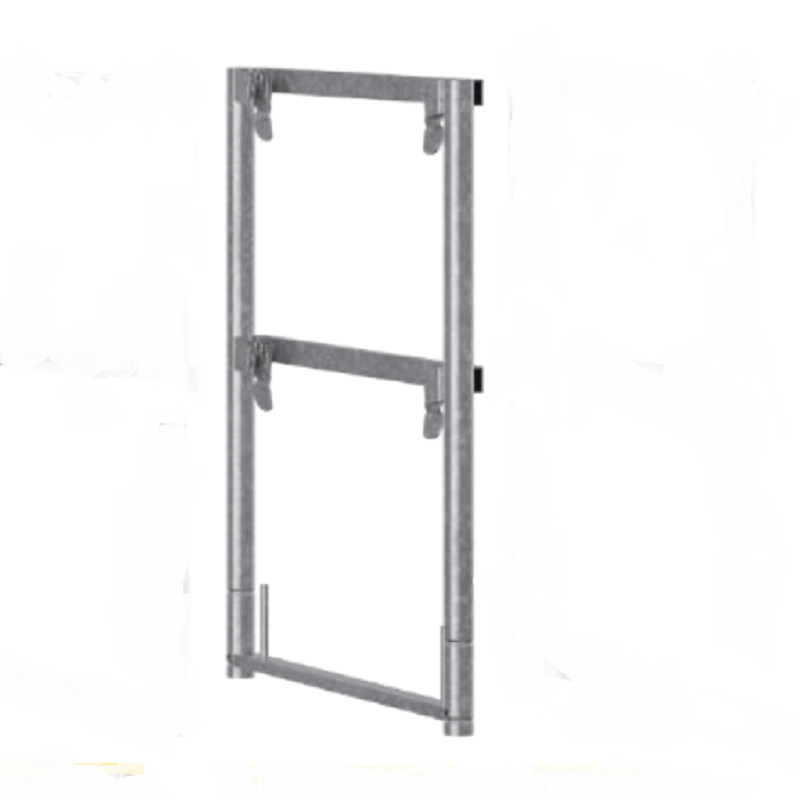

Scaffolding steel galvanized front frame

Scaffolding steel galvanized front frame

The front frame is an element that is also a part of the top-floor front balustrade scaffolding (it has two integrated handrails), and allows the assembly of a complete railing in the uppermost areas of the scaffolding and the front curb.

Description Galvanized front frame :

SYSTEM HEIGHT : 1000 mm
SYSTEM WIDTH : 732 mm
OVERALL HEIGHT : 1000 mm
OVERALL WIDTH : 780 mm
SCALES : 10.8 Kg
GALVANIZED

Description Aluminum front frame :

SYSTEM HEIGHT : 1000 mm
SYSTEM WIDTH : 732 mm
OVERALL HEIGHT : 1000 mm
OVERALL WIDTH : 780 mm
SCALES : 4.4 Kg
Aluminum

The front bezel is folded from two connected stands three horizontal crossbars, the lower of which provides protection against
self-rising the highest decks scaffolding levels, and the rest perform a function front handrails. Whole complemented by pockets with gussets for mounting handrail and mandrel enabling foundation curb in the extreme field
and from the front of the scaffolding.

It is available in steel and aluminum. Version with additional pockets for fastening the handrail and the mandrel for setting the curb, it is used when it overlaps the need to install a railing (handrail and curb) from the inside of the scaffolding, i.e. especially when the scaffolding platform is more than 20 cm from the façade.
