Galvanized Diagonal Brace 307 × 200 cm – Scaffold Stabilizing Brace
Galvanized diagonal brace 307x200 cm, 4.2 cm diameter pipe. coupling with wedge or with screw.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Galvanized Diagonal Brace 307 × 200 cm – Scaffold Stabilizing Brace Ø42.4 mm
Structural Reinforcement for Scaffolding Systems
The Galvanized Diagonal Brace 307 × 200 cm is a key structural component used to stabilize scaffolding bays by providing diagonal reinforcement. It ensures rigidity, load distribution, and resistance to lateral forces, making it essential for safe scaffold assembly.
Key Features
- Designed for scaffold bay 3.07 m × 2.0 m
- Strong Ø 42.4 mm steel pipe construction

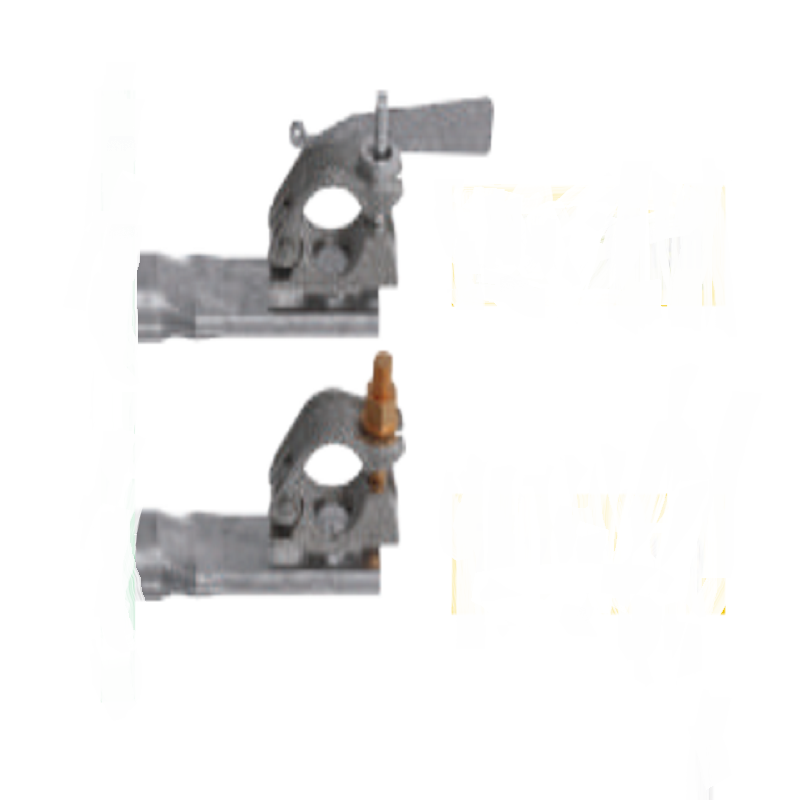

- Available with wedge or screw coupling
- Articulated half-coupler for flexible installation
- Hot-dip galvanized for corrosion resistance
- Can be used as vertical transverse brace or console support
Technical Specifications
| Specification | Value |
|---|---|
| Overall Length | 3643 mm |
| Pipe Diameter | 42.4 mm |
| Weight (Wedge) | 8.4 kg |
| Weight (Screw) | 8.2 kg |
| Material | Steel |
| Finish | Galvanized |

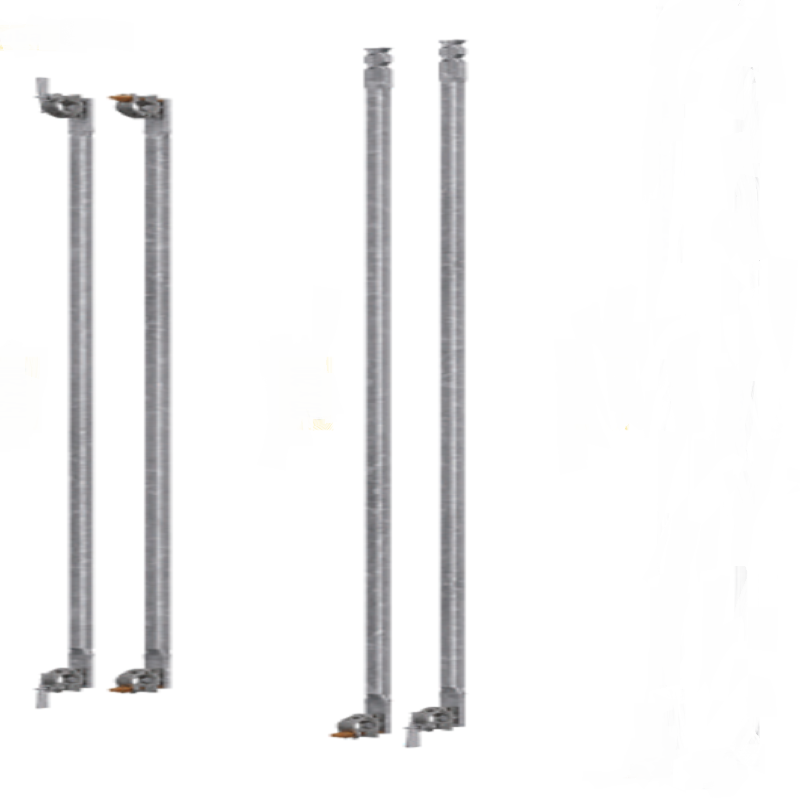

Construction & Design
- Manufactured from high-strength steel pipe
- Both ends are flattened for secure connections
- One end:
- Stepped design fitted into brace openings

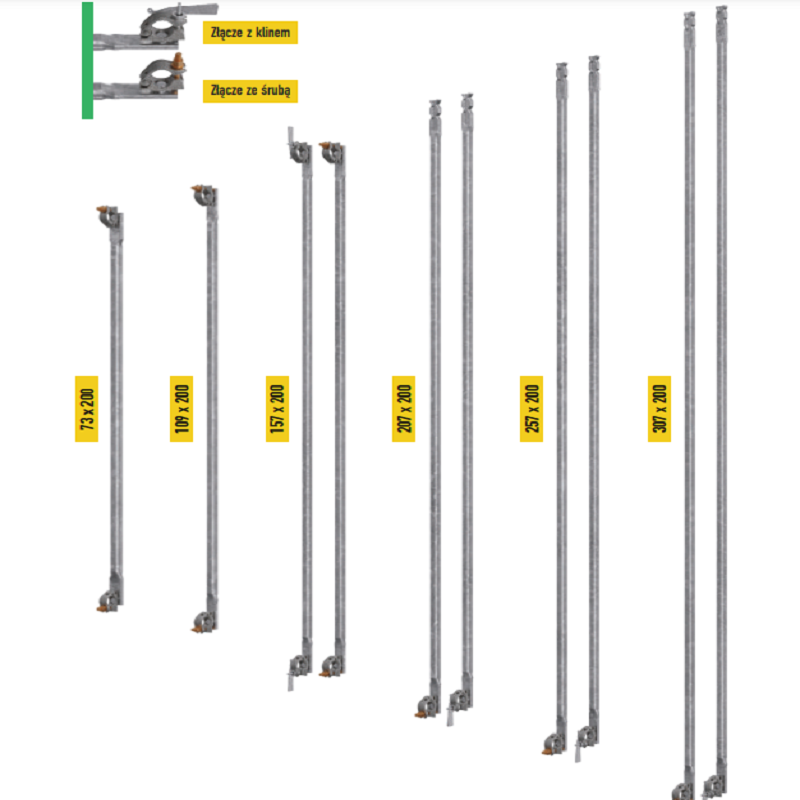

- Customized for scaffold bay lengths (3.07 m to 2.07 m)
- Opposite end:
- Articulated half-coupler (wedge or screw type)
- Connects to adjacent scaffold frame stand
-

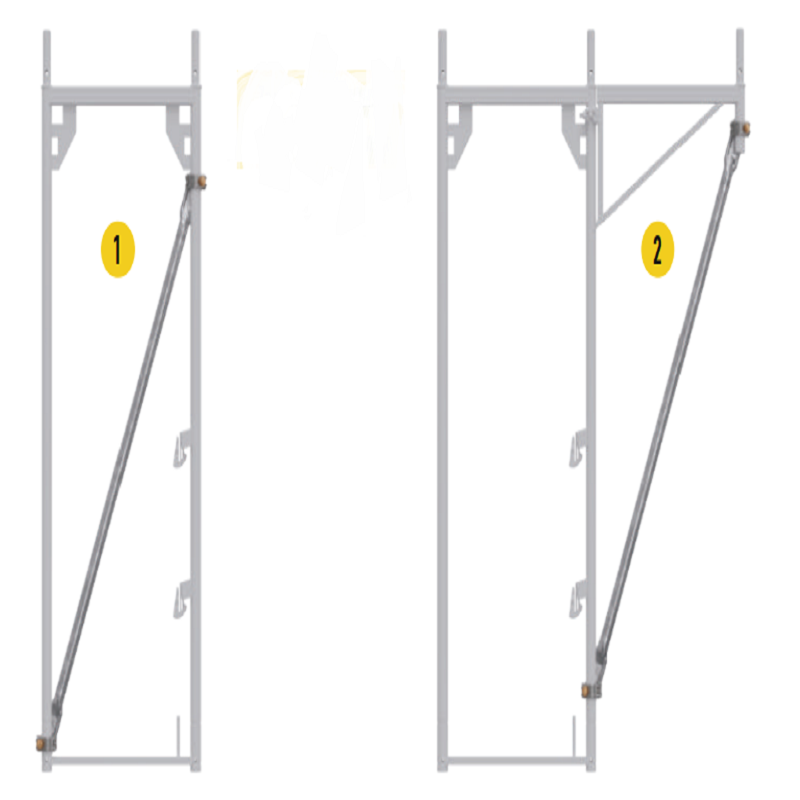

Functional Applications
Primary Use
- Diagonal bracing of scaffold bays
- Enhances structural stability and rigidity
Additional Uses
- Vertical transverse bracing
- Reinforcement in scaffold verticals
- Console support (0.73 m or 1.09 m)
- Strengthening areas with beam loads
Compatibility
- Standard modular scaffolding systems
- Frame scaffolding with wedge or bolt connections
- Suitable for 2.0 m scaffold height systems
Functional Advantages
- Prevents lateral movement and deformation
- Improves load distribution across scaffold structure
- Quick installation with articulated coupling system
- Durable for outdoor and harsh environments
- Multi-functional use for different scaffold configurations
Applications
- Construction scaffolding
- Industrial maintenance platforms
- Façade works and renovation
- Temporary access structures
- Heavy-duty scaffold systems
Advantages
- Essential for scaffold safety compliance
- Strong and reliable reinforcement solution
- Corrosion-resistant for long service life
- Flexible installation options (wedge or screw)
- Compatible with multiple scaffold configurations
Contact Us for Orders & Technical Support
For pricing, availability, and customized solutions, feel free to reach out to our team:
- Email: [email protected]
- Call: +971 44058154
- WhatsApp: +971543554679
We’re ready to support your project with professional advice and tailored solutions from SALESBRIDGES.
| Brand | Salesbridges |
| Article code | SBSC2301307 |
| SKU | SBSC2301307 |
| EAN | 9504196741347 |
