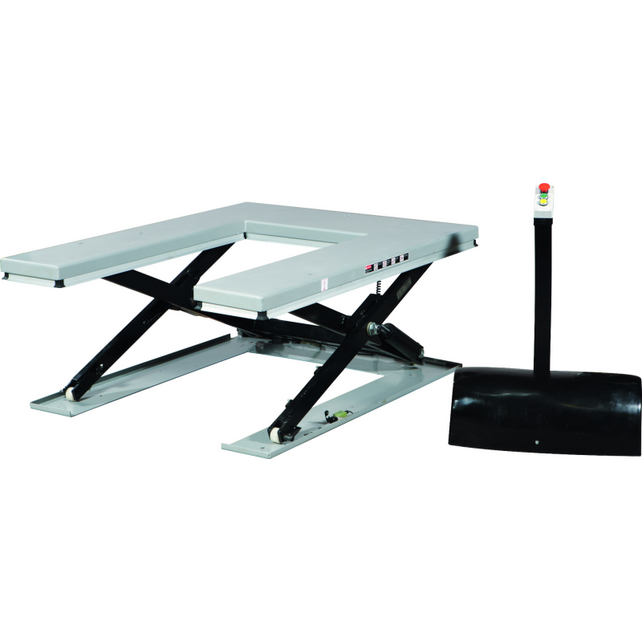

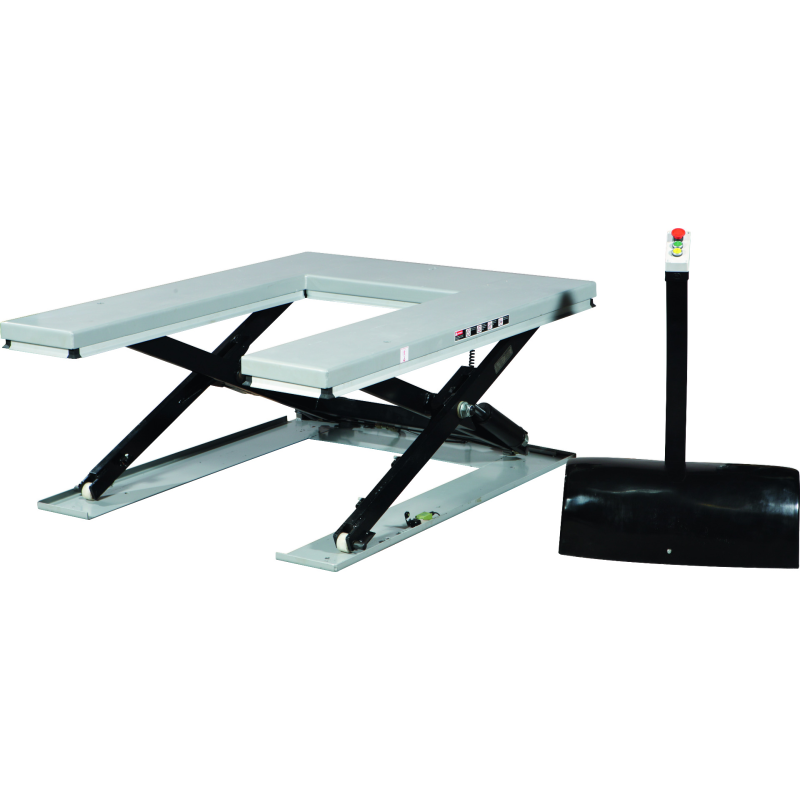

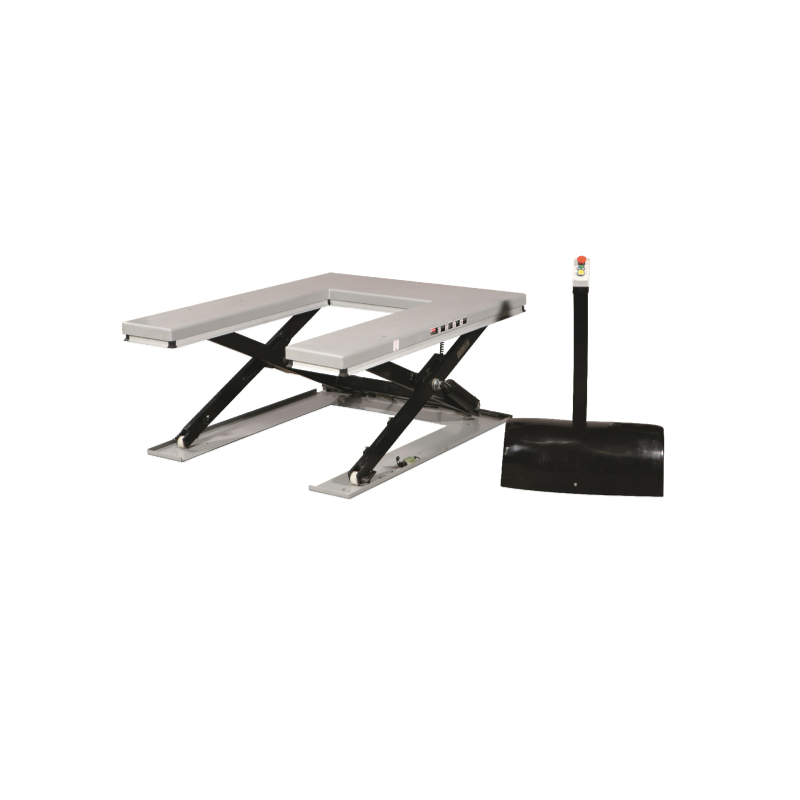

U-Lift Table 1500kg, 1600x1200mm | U-Shaped Scissor Lift Table for Pallets & Assembly

U-Lift Table 1500kg, 1600x1200mm | U-Shaped Scissor Lift Table for Pallets & Assembly

The SBSU1500 U-shaped lift table is designed for maximum accessibility, efficiency, and ergonomic handling. Its open U-frame allows you to easily roll in pallets, machinery parts, or components without the need for a ramp or special pallet truck. This makes it ideal for assembly lines, service workstations, and logistics environments where multi-side access is essential.

With a 1500kg capacity, 1600x1200mm platform, and a wide lifting range from 105-860 mm, the lift table ensures optimal working height for inspection, packing, assembly, or maintenance tasks. Its design helps reduce bending, heavy lifting, and operator fatigue — improving productivity and workplace safety.

Key Features & Benefits

• 1500 kg load capacity for medium-heavy industrial applications

• U-shaped design (inner width approx. 1080 mm) for easy pallet & machine access

• Ergonomic lifting range: 105-860 mm to reduce strain and improve workflow

• Large platform size: 1600x1200 mm suitable for various load types

• Ideal workstation solution for assembly, packing, inspection & service tasks

• Stable and durable construction designed for daily industrial use

• Perfect for rolling in pallets without a scissor jack or special equipment

• Improves accessibility enabling work from multiple directions

Typical Applications

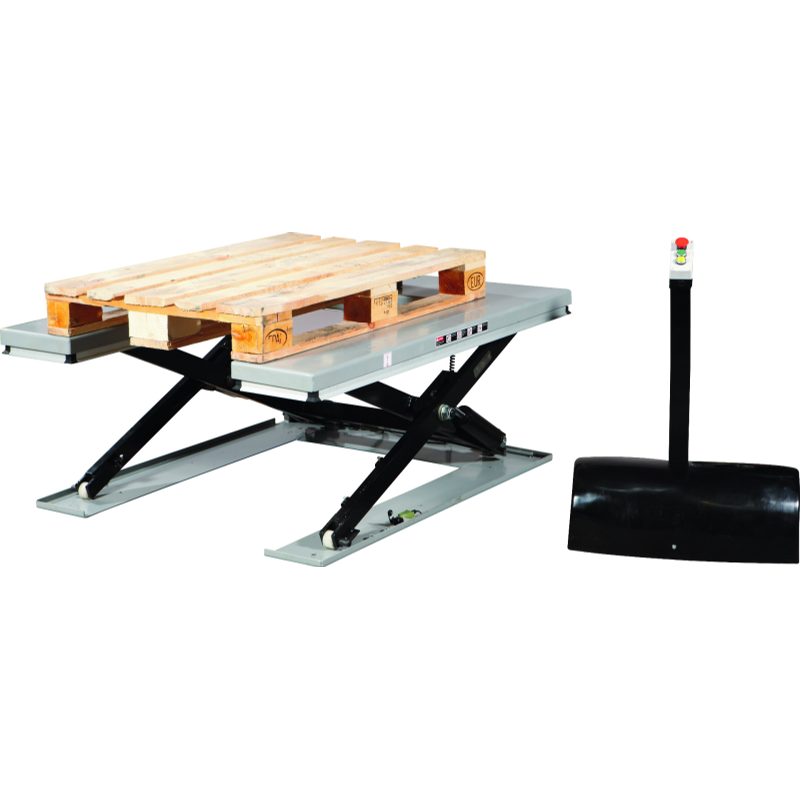

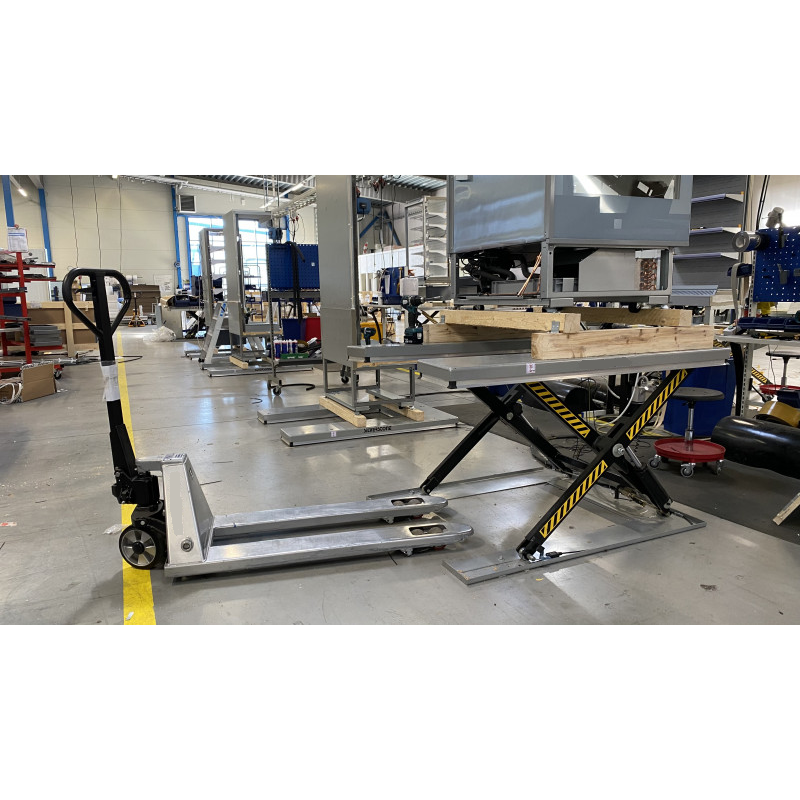

• Internal logistics: roll in pallets, lift to working height for packing/inspection

• Production environments: ergonomic handling and material positioning

• Service & repair work: excellent for lawnmowers, small machines, components

• Assembly stations: adjustable height for precision work on parts or units

Technical Specifications
