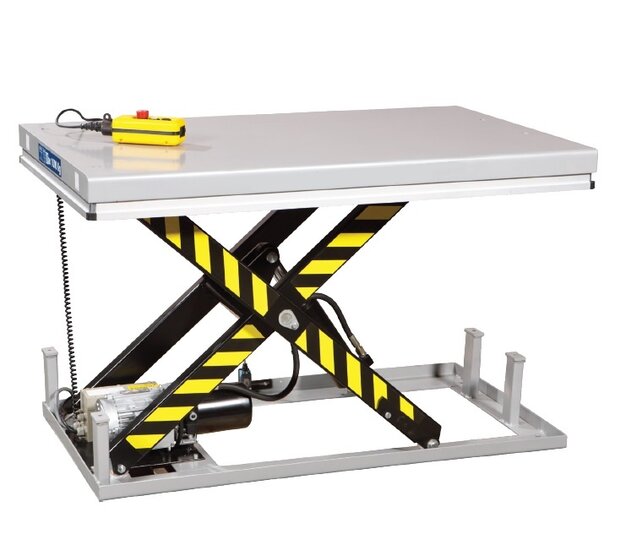

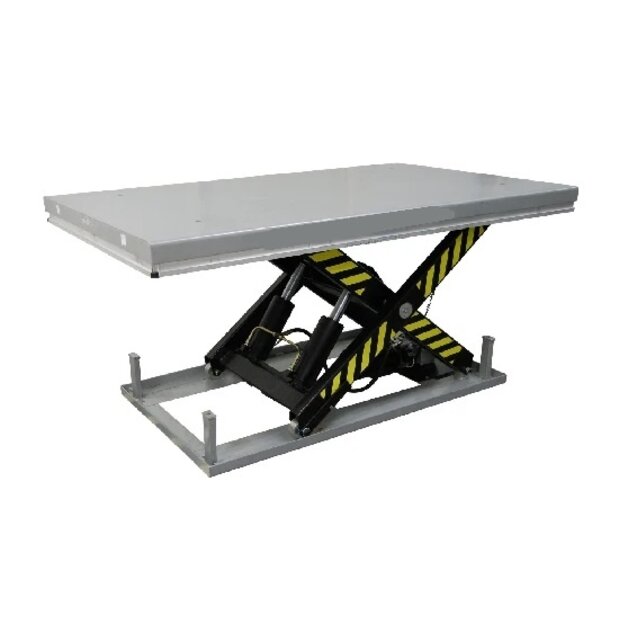

Stationary Lifting Table 2000kg - Platform 1600x1000mm, Lifting height 230-1000 mm

Stationary Lift table 1600x1000mm, 2000kg with 230–1000mm lift range, 3-phase motor

This heavy-duty lift table is engineered for demanding industrial environments requiring safe, stable, and reliable lifting performance. With a capacity of 2000 kg and a robust 1600x1000mm platform, it delivers exceptional strength for handling pallets, machinery components, tooling, and production materials.

Designed with maintenance-free pivot bushings, a large safety clearance between the scissor arms, and a hose-burst safety valve, this lift table ensures safe operation in daily industrial use. The unit includes a low-noise power pack with overload protection, a moveable limit switch for precise end-stop adjustment, and 4 lifting loops for pit installation or transport.

Powered by a 380V / 16A three-phase motor, the table achieves a smooth lift with a rise time of 20–25 seconds, meeting EN 1570-1 European safety standards.

Key Features

• Capacity: 2000 kg

• Table size: 1600x1000 mm

• Lifting height range: 230–1000 mm

• Stroke length: 770 mm

• Robust single-scissor design

• Maintenance-free pivot bushings

• Hose-burst protection & internal drainage cylinder

• Adjustable upper limit switch

• Low-noise power pack with overload valve

• Includes 4 lifting loops for installation

• Complies with EN 1570-1 safety standards

• Powered by 380V/16A 3-phase motor
