Stationary Low Profile Lift Table 1450x800mm, 1000kg – Lifting Height 85-860 mm
AED 20,500.00
AED 18,000.00 Excl. tax
AED 21,525.00
Incl. tax
Electro-hydraulic lift tables . Lowered height is only 85 mm. . Separate hydraulic power pack (IP54) which is positioned next to the lift table. The moveable ramp is included. Cable for 3-phase connection 380V/16 Ah. Confirms to EN1570-1 and ANSI/ASME-nor
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Product description

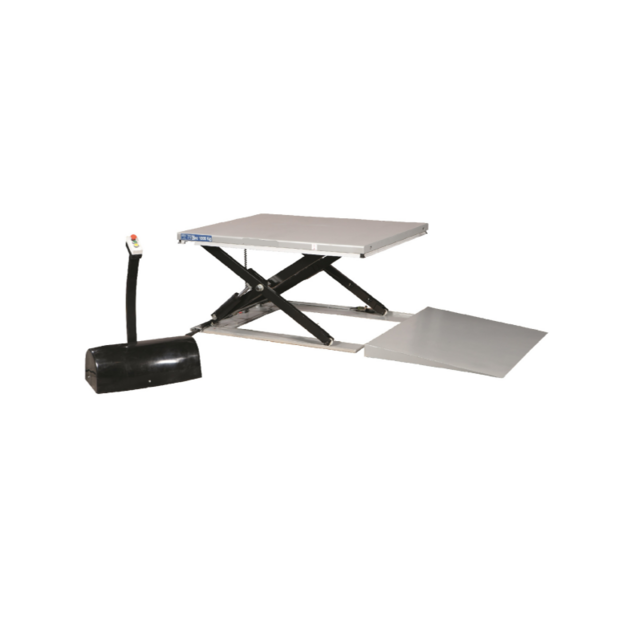

Stationary Low Profile Lift Table 1450 × 800 mm – 1000 kg
Ultra-Low Scissor Lift Table (85–860 mm) for Pallet Handling
Efficient Lifting Without Pit Installation
The Salesbridges Low Profile Lift Table (1000 kg) is engineered for industrial environments requiring safe and efficient lifting without the need for pit installation. With an ultra-low 85 mm closed height, it allows direct loading using a movable ramp, making it ideal for pallet trucks, production lines, and logistics operations.
Key Features
- Load capacity: 1000 kg
- Ultra-low profile: 85 mm closed height
- Lifting range: 85 – 860 mm
- Large table size: 1450 × 800 mm
- Movable ramp included for easy pallet loading
- External hydraulic power pack (IP54)
- Smooth, stable lifting with 3-phase motor
- Complies with:
- EN 1570-1
- ANSI/ASME safety standards
Technical Specifications
| Specification | Value |
|---|---|
| Type | Low profile lift table |
| Capacity | 1000 kg |
| Table Size | 1450 × 800 mm |
| Lifting Height | 85 – 860 mm |
| Stroke Length | 775 mm |
| Base Frame Size | 1330 × 736 mm |
| Lowered Height | 85 mm |
| Motor | 380V / 50Hz, 1.5 kW |
| Lifting Time | 15–20 seconds |
| Power Supply | 3-Phase (380V / 16A) |
| Weight | 357 kg |
| Hydraulic Unit | External, IP54 rated |
Construction & Design
- Built from heavy-duty steel plates for maximum strength
- Low-profile design eliminates need for floor pit
- External power pack:
- Easier maintenance
- Better cooling performance
- Designed for:
- Continuous industrial use
- High stability under load
Functional Advantages
- Easy loading with pallet trucks via ramp
- Improves workplace ergonomics
- Reduces manual lifting and injury risk
- Smooth and controlled lifting operation
- Space-efficient solution for production lines
Applications
- Warehouses and logistics centers
- Production and assembly lines
- Pallet handling operations
- Packaging stations
- Industrial workstations
Advantages
- No pit installation required
- Extremely low closed height (85 mm)
- High load capacity (1000 kg)
- Reliable hydraulic lifting system
- Compliant with international safety standards
Standard Delivery
- 1 × Low profile lift table
- 1 × External hydraulic power pack (IP54)
- 1 × Movable loading ramp
Contact Us for Orders & Technical Support
- Email: [email protected]
- Call: +971 44058154
- WhatsApp: +971543554679
Contact us today for pricing, availability, and customized waste management solutions.
Product information
| Brand | Salesbridges |
| Article code | SBSL1003 |
| SKU | SBSL1003 |
| EAN | 9502769697749 |
