Stationary Low Profile Lift Table 1450x1140mm, 1000kg – Lifting Height 85-860 mm
AED 18,600.00 AED AED 21,000.00 AED
Salesbridges
Sale
Stationary Low Profile Lift Table 1450x1140mm, 1000kg – Lifting Height 85-860 mm
AED 21,000.00
AED 18,600.00 Excl. tax
AED 22,050.00
Incl. tax
Electro-hydraulic lift tables . Lowered height is only 85 mm. . Separate hydraulic power pack (IP54) which is positioned next to the lift table. The moveable ramp is included. Cable for 3-phase connection 380V/16 Ah. Confirms to EN1570-1 and ANSI/ASME-nor
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Product description

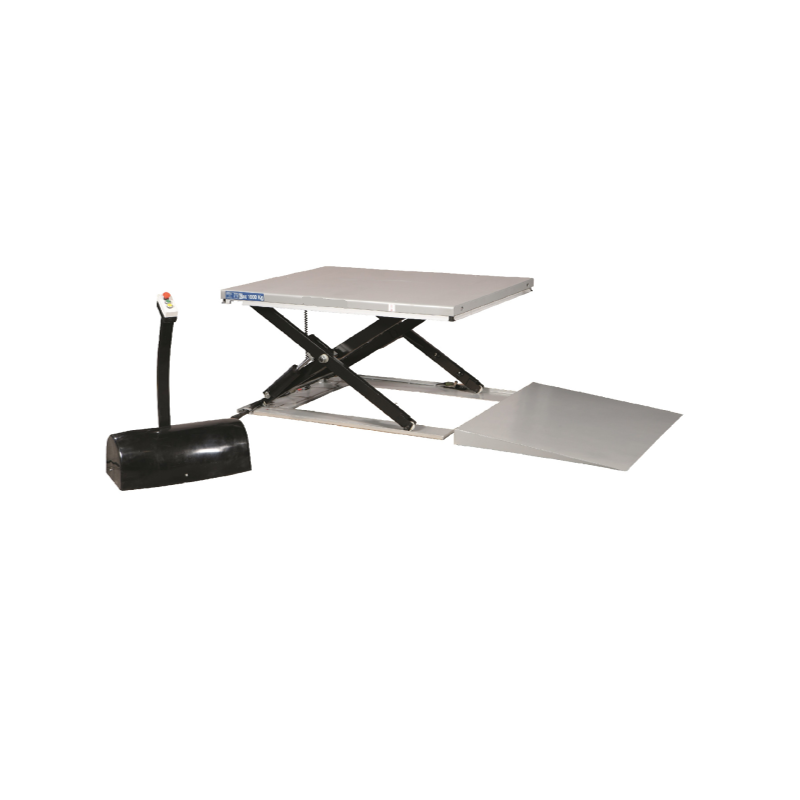

Stationary Low Profile Lift Table 1450 × 1140 mm – 1000 kg
Wide Platform Scissor Lift Table (85–860 mm) for Pallet Handling
Heavy-Duty Lifting Without Pit Installation
The Salesbridges Low Profile Lift Table (1000 kg) with extended platform (1450 × 1140 mm) is designed for industrial applications requiring extra surface area and safe lifting. With an ultra-low 85 mm closed height, it enables direct loading via a movable ramp, making it ideal for pallet trucks, production lines, and logistics workflows.
Key Features
- Load capacity: 1000 kg
- Ultra-low profile: 85 mm closed height
- Lifting range: 85 – 860 mm
- Extra-wide table size: 1450 × 1140 mm
- Movable ramp included for easy loading
- External hydraulic power pack (IP54 rated)
- Smooth and quiet lifting operation
- Compliant with:
- EN 1570-1
- ANSI/ASME safety standards
Technical Specifications
| Specification | Value |
|---|---|
| Type | Low profile lift table |
| Capacity | 1000 kg |
| Table Size | 1450 × 1140 mm |
| Lifting Height | 85 – 860 mm |
| Stroke Length | 775 mm |
| Base Frame Size | 1076 × 1330 mm |
| Lowered Height | 85 mm |
| Motor | 380V / 50Hz, 1.5 kW |
| Lifting Time | ~18 seconds |
| Power Supply | 3-Phase (380V / 16A) |
| Weight | 357 kg |
| Hydraulic Unit | External, IP54 |
Construction & Design
- Manufactured from heavy-duty steel plates for long-term durability
- Wide platform design supports:
- Larger pallets
- Bulky loads
- External hydraulic unit provides:
- Easier maintenance
- Improved cooling efficiency
- Designed for:
- Continuous industrial use
- High stability under load
Functional Advantages
- Direct pallet loading without pit installation
- Improves workplace ergonomics and safety
- Reduces manual lifting effort
- Stable and precise lifting control
- Suitable for large and wide loads
Applications
- Warehouses and logistics centers
- Production and assembly lines
- Pallet handling and packaging stations
- Industrial workstations
- Material handling operations
Advantages
- Extra-wide platform for larger loads
- No civil work required (no pit)
- Low closed height (85 mm)
- Reliable hydraulic lifting system
- Fully compliant with international safety standards
Standard Delivery
- 1 × Low profile lift table
- 1 × External hydraulic power pack (IP54)
- 1 × Movable loading ramp
Contact Us for Orders & Technical Support
- Email: [email protected]
- Call: +971 44058154
- WhatsApp: +971543554679
Contact us today for pricing, availability, and customized waste management solutions.
Product information
| Brand | Salesbridges |
| Article code | SBSL1001 |
| SKU | SBSL1001 |
| EAN | 9501155522870 |
