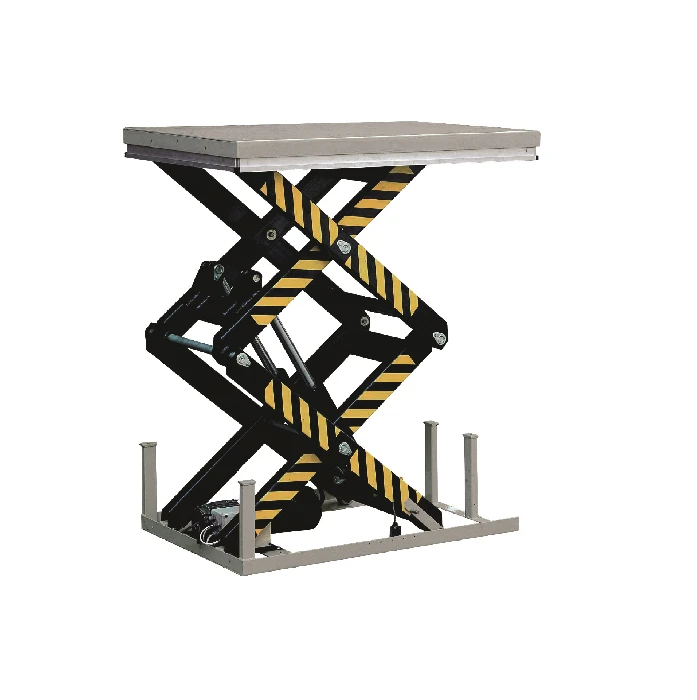

Stationary Electrical Lifting Table, 4 ton, with Double Scissors up to 2050 mm

Stationary Electrical Lifting Table, 4 ton, with Double Scissors up to 2050 mm

Tables for high lifts and long goods. The table should be fixed to the floor with bolted joints. Maintenance-free pivot bushings. Large safety clearance between the scissors to avoid injuries. Lift cylinder with internal drainage. Safety valve to ensure safety in case of a hose burst. Low-noise power pack with built-in overload valve. Safety switch in top position. Moveable limit switch for adjusting the full raised stop. 4 end-stops, incl. 4 loops which can be used, e.g., when lifting the total lift table into a pit. Low-noise power pack with built-in overload valve. Cable for 3-phase connection 380V/16 Ah. Approves to EN1570-1.

• Type: Double scissor
• Capacity (kg): 4000
• Stroke length: 1650 mm
• Table area (LxW): 1700x1200 mm
• Base frame size (LxW): 1600x930 mm
• Weight (kg): 520
• Lifting time to max height: 25-30 s
• Lift motor (kW): 380V / 50Hz 2.2kW
• Lifting height: 400-2050 mm

Operating voltage 380V

This model is optionally operated with an operating voltage of 380V. The lifting motor lifts with 2.2 kW. In addition, all models are equipped with an emergency stop and a key switch as standard.
