Stationary Electrical Lifting Table, 2 ton, with Double Scissors up to 1780 mm
Platform Size : 1300x850mm, Salesbridges Double Scissors Electrically lift loads of up to 4 t to the desired level up to a maximum of 1780mm. Mainly used for loading or stocking in Warehouses, Forwarding Agencies or in Industrial Companies.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list

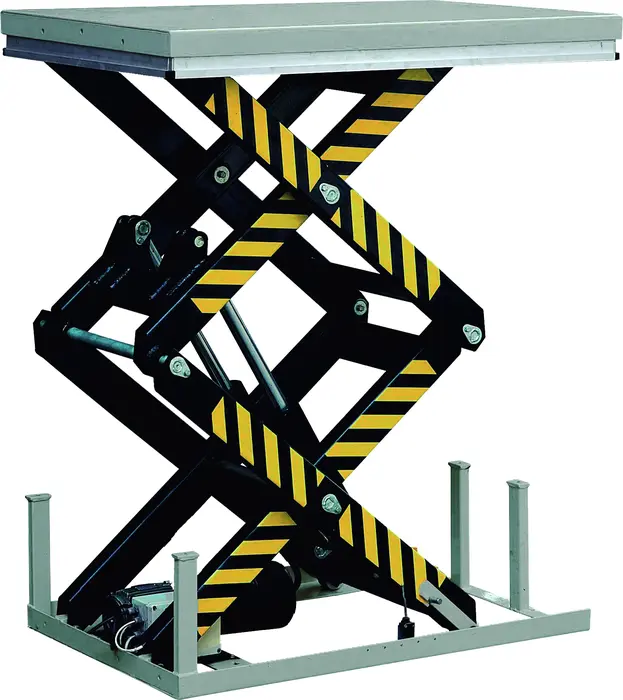

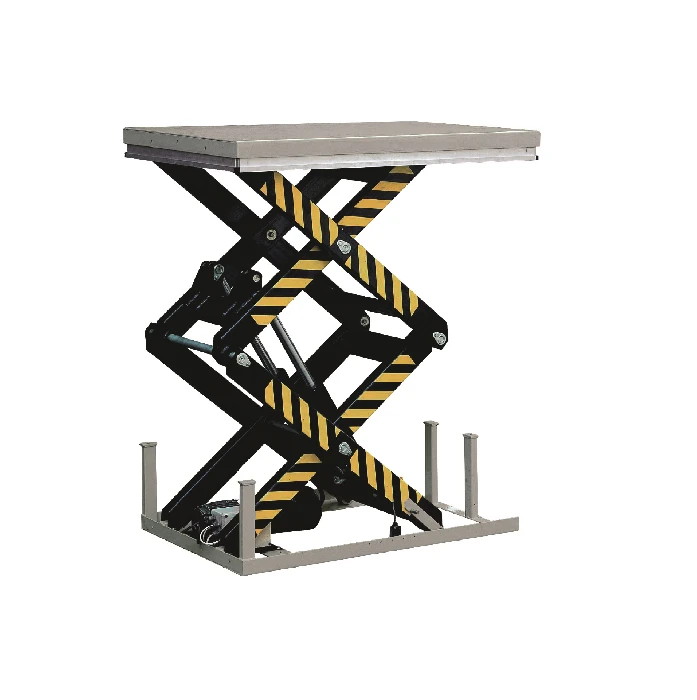

Stationary Electric Lift Table – 2000 kg
Double Scissor | 1300 × 850 mm | Lift Height up to 1780 mm
High-Lift Solution for Heavy Industrial Applications
The Salesbridges 2 Ton Double Scissor Lift Table is designed for high lifting operations and handling long or bulky goods. With an extended lifting range up to 1780 mm, this stationary platform is ideal for production lines, warehouses, and industrial workstations requiring elevated positioning.
Built with robust steel construction and advanced safety systems, this lift table ensures maximum stability, safety, and durability, fully compliant with EN 1570-1 standards.
Key Features
- Load capacity: 2000 kg (2 Ton)
- Double scissor design for high lifting range
- Lifting height: 360 – 1780 mm
- Platform size: 1300 × 850 mm
- Designed for fixed floor installation
- Low-noise hydraulic power pack
- Maintenance-free pivot bushings
- Internal drainage lift cylinder
- Overload protection valve
- Emergency stop and key switch (standard)
- Complies with EN 1570-1
Technical Specifications
| Specification | Value |
|---|---|
| Type | Double Scissor |
| Capacity | 2000 kg |
| Table Area (L × W) | 1300 × 850 mm |
| Base Frame Size | 1255 × 785 mm |
| Lifting Height | 360 – 1780 mm |
| Stroke Length | 1420 mm |
| Lifting Time | 25 – 30 s |
| Motor | 380V / 50Hz – 2.2 kW |
| Power Supply | 3-Phase 380V / 16A |
| Weight | 295 kg |
Construction & Design
- Double scissor mechanism:
- Provides high lift capability
- Ensures stability at maximum height
- Heavy-duty steel platform for long-term use
- Designed for:
- Floor-mounted installation
- Optional pit integration
Safety Features
- Hose burst safety valve
- Overload protection system
- Emergency stop button
- Key switch control
- Top position safety switch
- Adjustable limit switch for max height
- Large safety clearance between scissors
- 4 end-stops with lifting loops
Functional Advantages
- Ideal for high lifting operations
- Suitable for long and heavy goods
- Stable and secure operation
- Quiet and efficient hydraulic system
- Low maintenance design
Applications
- Production and assembly lines
- Warehouses and logistics centers
- Industrial workstations
- Maintenance and repair operations
- Pit-mounted lifting systems
Advantages
- High lifting height (up to 1780 mm)
- Strong 2-ton capacity
- Durable industrial construction
- Advanced safety features
- Fully compliant with European standards
Contact Us for a Quote or Consultation
- Email: [email protected]
- Call: +971 44058154
- WhatsApp: +971543554679
Optimize your lifting operations with a reliable high-lift solution. Contact Salesbridges today for pricing and customization.
