Stationary Lifting Table 500 Kg – Electric Platform 900 mm x 700 mm
Compact 500 kg lift table, 900x700 mm platform. Fast lift speed, EN1570-1 approved, hydraulic motor, safety features.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list

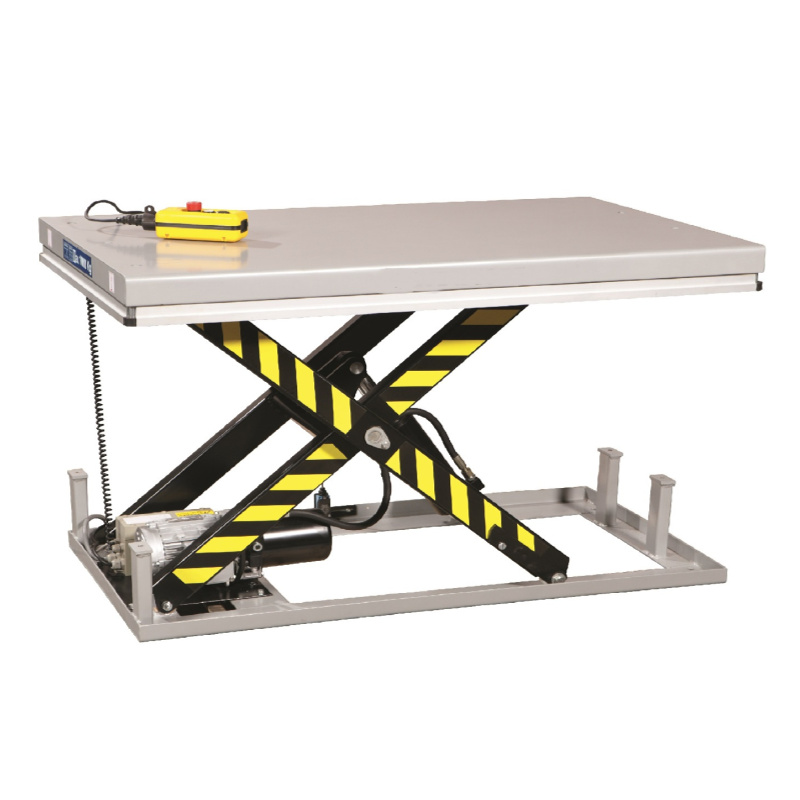

Stationary Lifting Table 500 Kg – Electric Platform 900 mm x 700 mm
Feature:
-
Maintenance-free pivot bushings.
-
There is a large safety clearance between the scissors to avoid injuries.
-
Lift cylinder with internal drainage.
-
Safety valve to ensure safety in case of a hose burst.
-
Moveable limit switch for adjusting the full raised stop.
-
4 end-stops, incl. 4 loops which can be used e.g. when lifting a total lift table into a pit.
-
Low-noise power pack with built-in overload valve.
-
Cable for 3-phase 380V/16Ah*.
-
Approves to EN1570-1.
| Technical specifications | Lift table |
|---|---|
| Art.no | HW501 |
| Load capacity | 500 kg |
| Lifting height | 160 - 760 mm |
| Stroke length | 600 mm |
| Platform size (LxW) | 900 x 700 mm |
| Base frame size (LxW) | 885 x 700 mm |
| Lifting time to max height | 7 - 9 s |
| Lift motor | 380V / 50HZ 0,37 kW |
| 3-Phase (380V/16Amp) | Yes |
| Own weight | 110 kg |
| Brand | Salesbridges |
| Article code | SBHW501 |
| SKU | SBHW501 |
