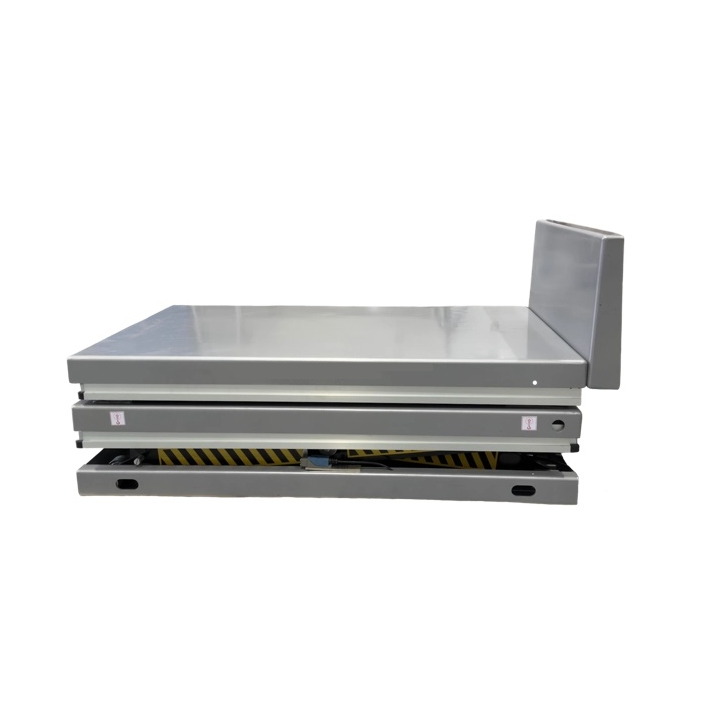

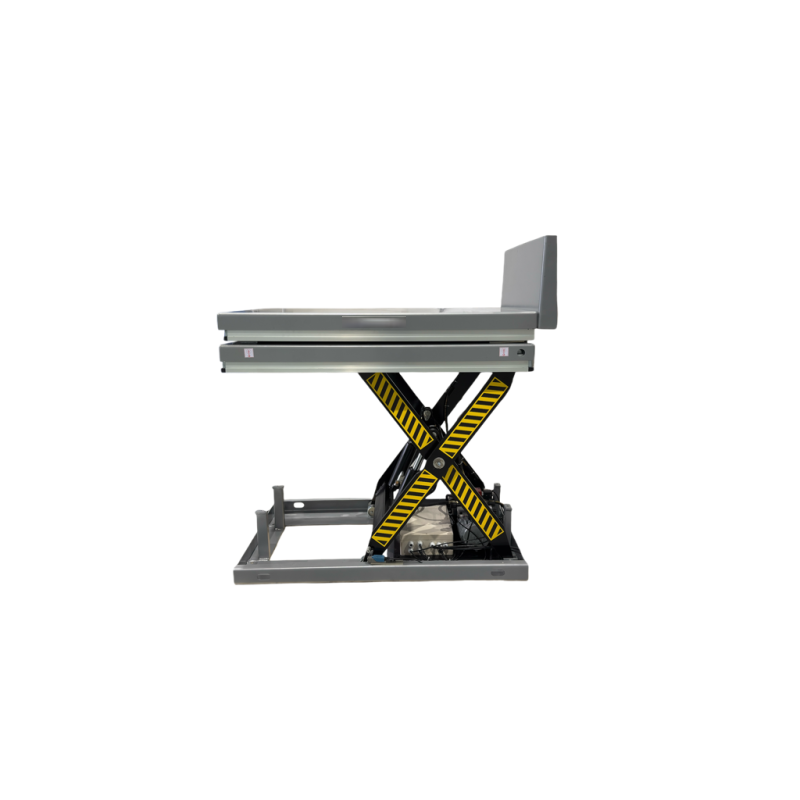

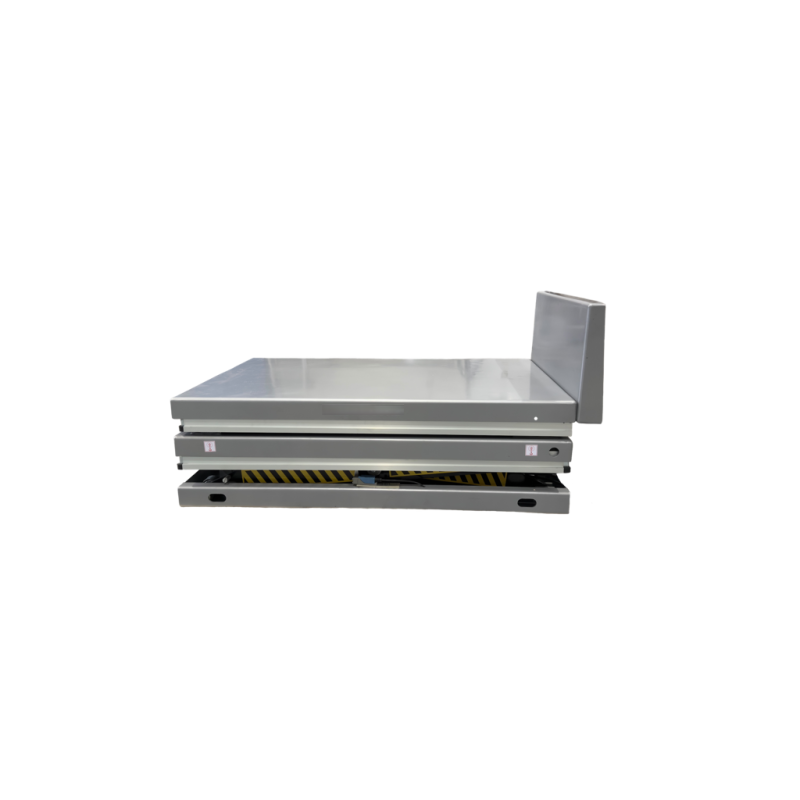

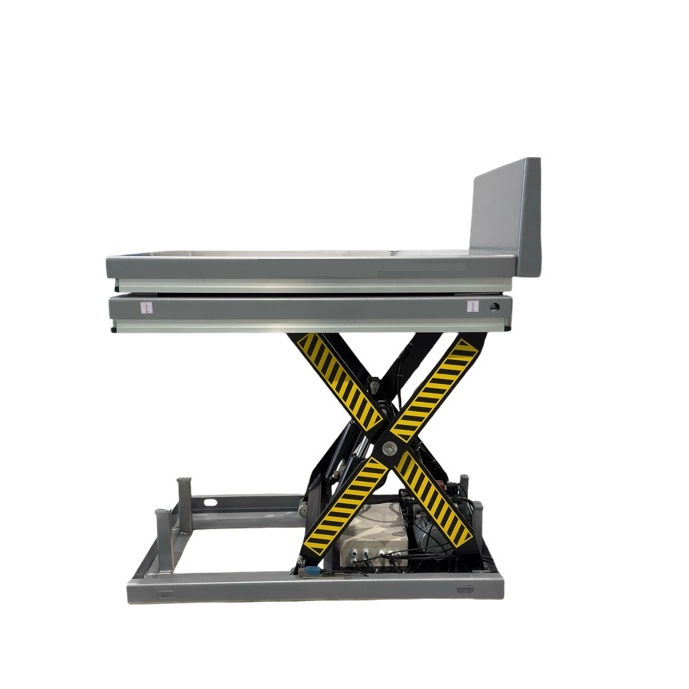

Tiltable Lift Table, 1300×850 mm, 1000 kg Capacity

Product Description

The SBHW1385T is a heavy-duty lift table engineered for professional industrial environments where ergonomics, safety, and efficiency are essential. With a lifting capacity of 1000 kg, a large 1300 × 850 mm platform, and a lifting range from 380 to 1180 mm, this model is ideal for workshops, warehouses, logistics centers, and assembly operations.

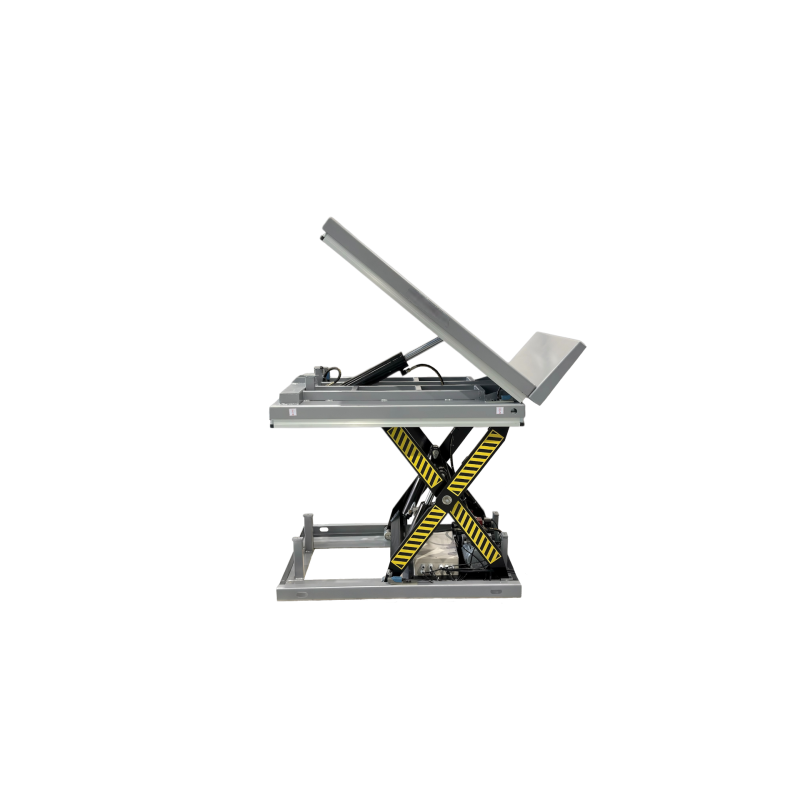

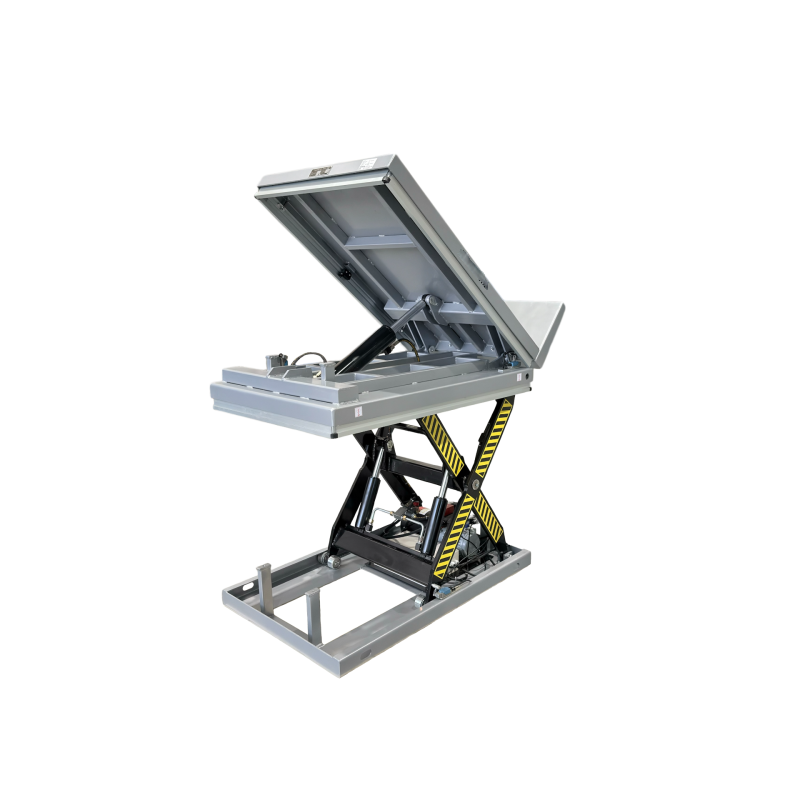

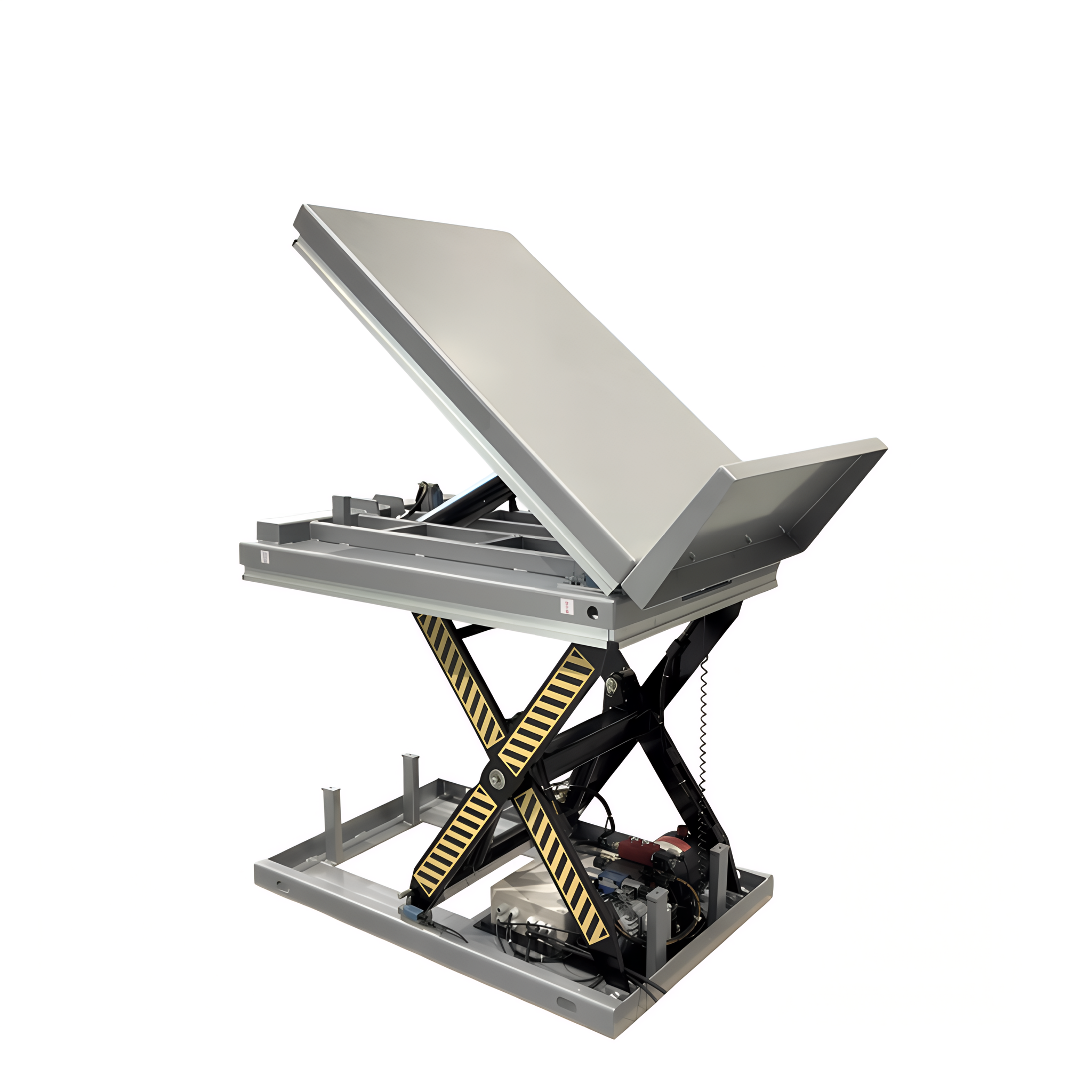

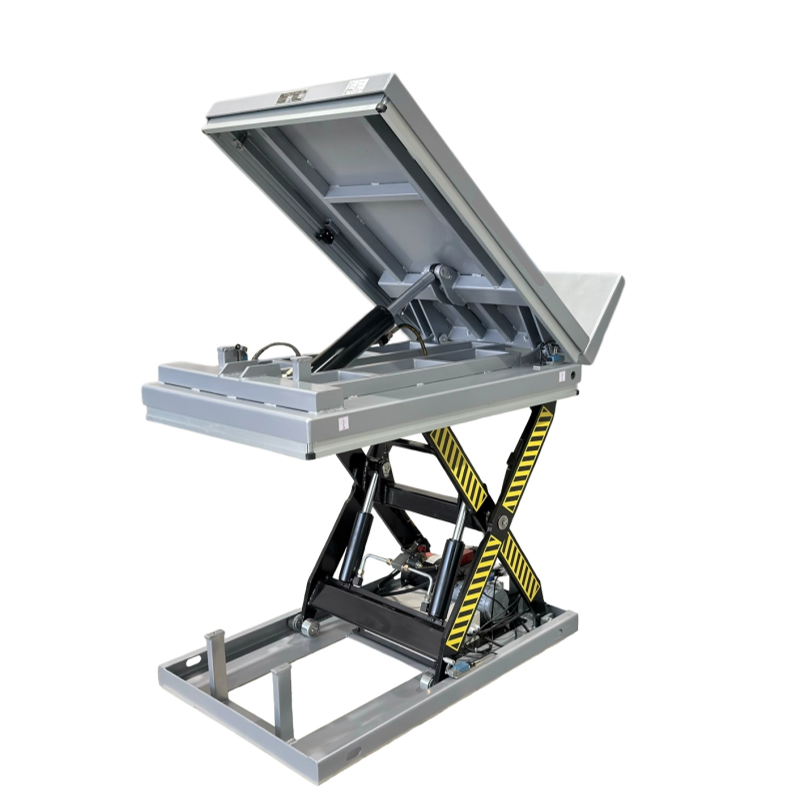

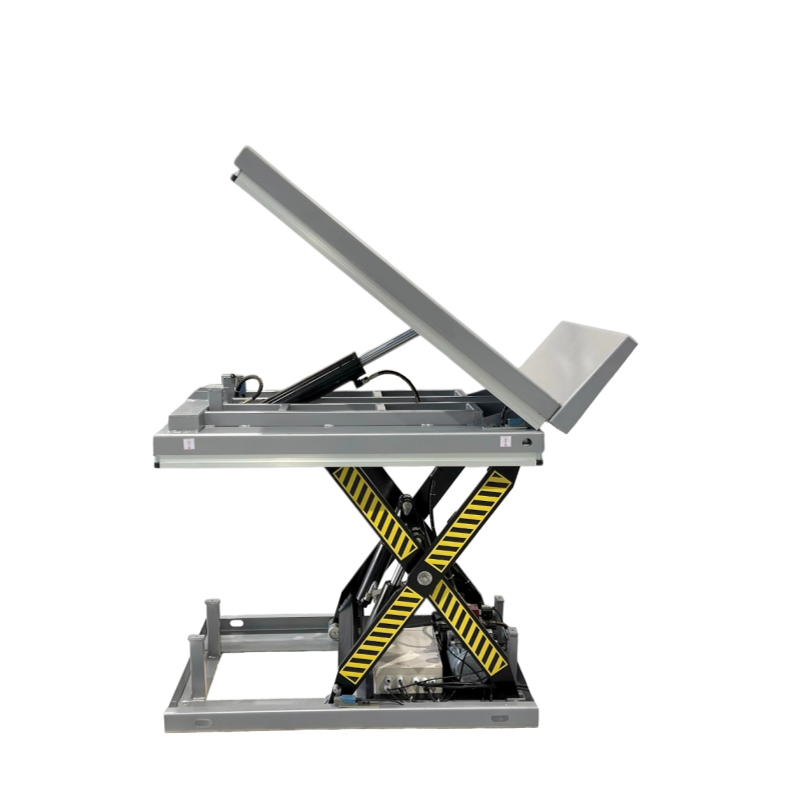

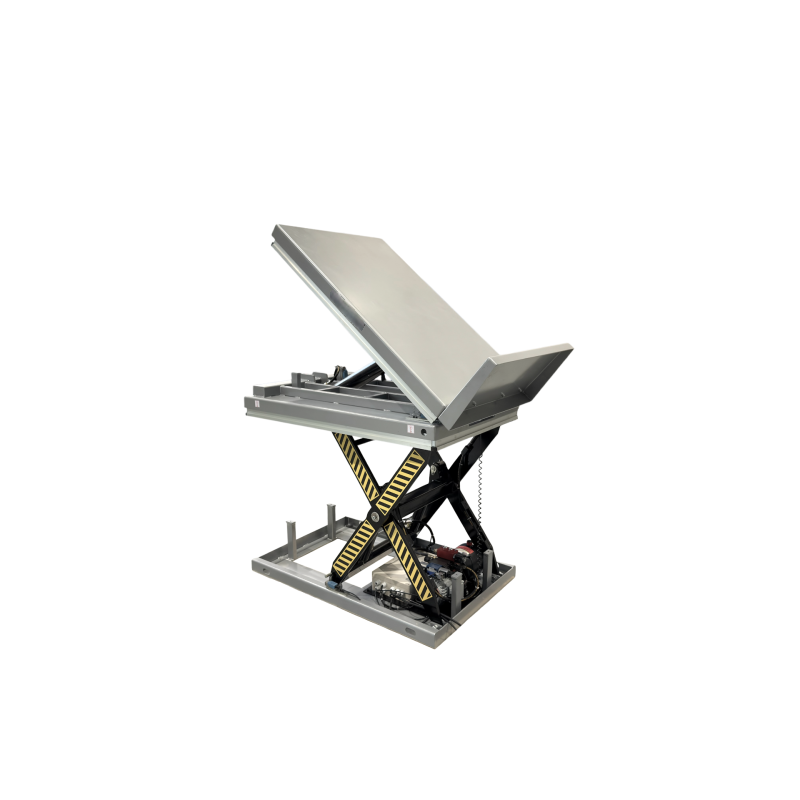

Its integrated 45° tilt function provides excellent access to pallets, bins, boxes, and materials, making it perfect for picking, packing, sorting, and assembly tasks — all while reducing unnecessary bending or awkward working postures.

The platform is equipped with an aluminum safety bar under the tilt section, automatically stopping movement if contact is detected, ensuring maximum operator protection during daily use.

Key Features

• Capacity: 1000 kg

• Platform Size: 1300 × 850 mm

• Lifting Height Range: 380–1180 mm

• Tilt Function: Up to 45° for improved accessibility

• Overload Protection: 110%

• Safety Bar: Aluminum safety bar under the tilt platform

• Safety Standards: Complies with EN 1570-1, CE certified

• Safety Measures:

  • Safety clearance between all moving parts

  • Mechanical safety locks

  • Hose burst valve

• Durable Build: Integrated power pack and IP54-rated motor

Why Choose the SBHW1385T?

• Enhanced Ergonomics: Reduces operator strain during picking and assembly work

• Lift + Tilt in One Unit: Saves space while improving workflow efficiency

• Industrial Durability: Built to withstand heavy-duty, high-frequency use

• Complete Delivery: Comes fully assembled with an integrated power pack for quick installation
