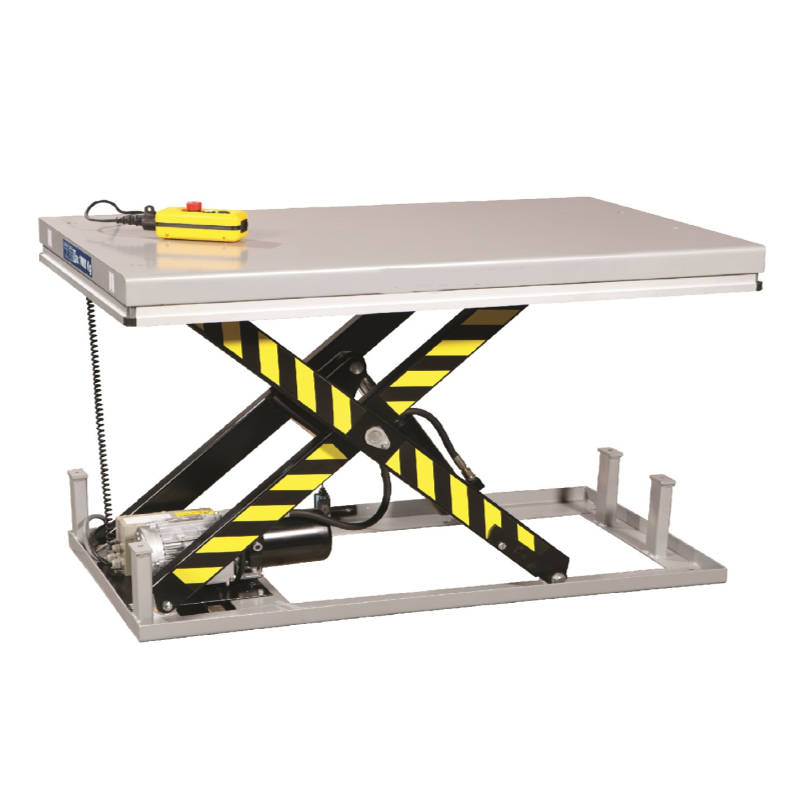

Stationary Lifting Table 2000 Kg -Electric Platform 2000 mm x850 mm
AED 19,500.00 AED
Salesbridges
Stationary Lifting Table 2000 Kg -Electric Platform 2000 mm x850 mm
AED 19,500.00
Excl. tax
AED 20,475.00
Incl. tax

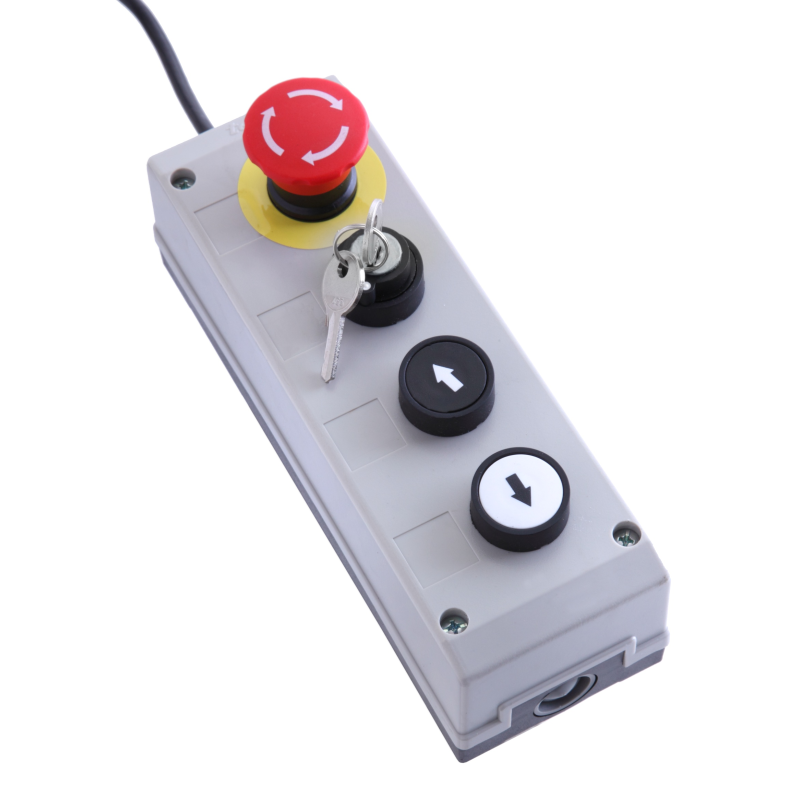

Electric Platform 2000x850 mm, Stroke range: 240-1300 mm, Lifting Load up to 2000 Kg, All-round platform protection, External control panel.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Product description
Stationary Lifting Table 2000Kg -Electric Platform 2000 mm x850 mm
Feature:
- Maintenance-free pivot bushings.
- Large safety clearance between the scissors to avoid injuries.
- Lift cylinder with internal drainage.
- Safety valve to ensure safety in case of a hose burst.
- Moveable limit switch for adjusting full raised stop.
- 4 end-stops, incl. 4 loops which can be used e.g. when lifting total lift table into a pit.
- Low-noise power pack with built-in overload valve.
- Cable for 3-phase 380V/16Ah*.
- Approves to EN1570-1.
| Technical specifications | Lift table
SBHW2005 |
|
|---|---|---|
| Load capacity | kg | 2000 |
| Lifting height | mm | 250-1300 |
| Stroke length | mm | 1050 |
| Platform size (LxW) | mm | 2000x850 |
| Base frame size (LxW) | mm | 1630x785 |
| Lifting time to max height | s | 20-25 |
| lift motor | kW | 380V / 50Hz 1,5kW |
|
3-Phase (380V/16Amp) |
||
| own weight | kg | 300 |
Product information
| Brand | Salesbridges |
| Article code | SBHW2005 |
| SKU | SBHW2005 |
| EAN | 9503885398497 |
