Production line workstation conveyor roller workbench 150 kg
Workstation with metal structure perforated profile with total height of 1950 mm adjustable height with 50mm incrementation. Load capacity 150kg. Choice of length 925mm or 1360mm. Depth 695mm. 5 years warranty. Made in France
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Workstation with Conveyor Table
Adjustable Conveyor Workstation for Efficient Material Handling
This workstation with conveyor table is designed to improve workflow efficiency in packing, assembly, inspection, and material handling environments. The conveyor tables are built with two fully removable legs or ladders made of 20/10th sheet steel and a lower cross-member in 25/10th sheet steel, assembled with screws and nuts for strength and serviceability.
Flexible Configuration with Height Adjustment and Expandable Layout
The table is available with gravity roller tops or roller track tops and is mechanically adjustable in height from 700 to 900 mm. The tabletop can also be inclined up to 5° for smoother handling of products. Each unit is supplied with a jack kit for workstation height adjustment and two connecting parts for linking multiple tables together or attaching to a ball transfer table. Optional castors, lower shelves, and additional accessories are available to customize the workstation to your application.
Key Features
- Height-adjustable conveyor table from 700 to 900 mm in 50 mm increments
- Tabletop inclination up to 5° for improved product flow

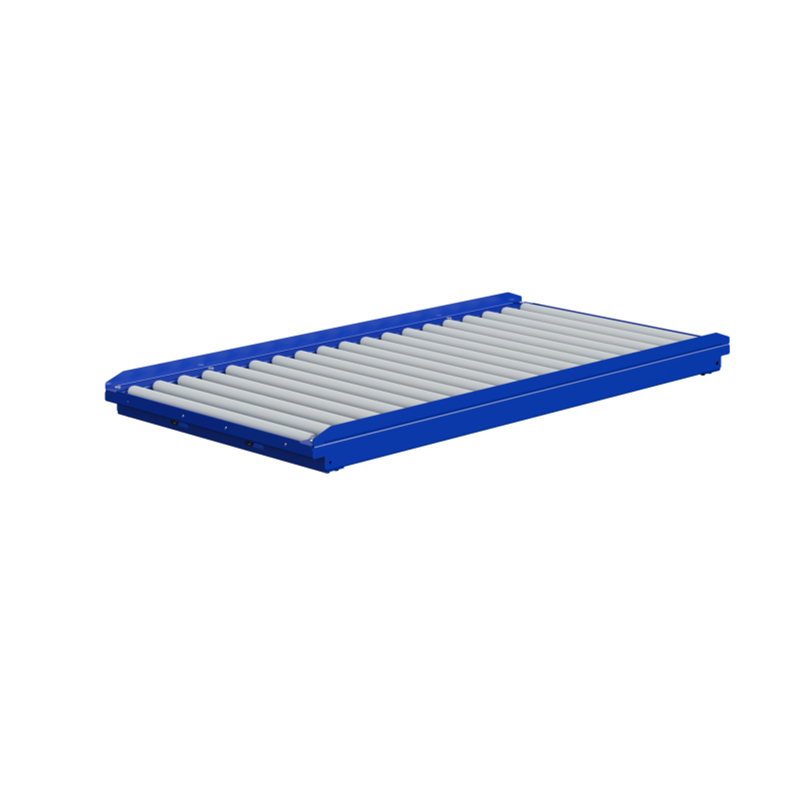

- Available with gravity roller top or roller track top
- Supplied with connecting parts for linking multiple tables
- Made in France with 5-year warranty and compliance with XPD 65762
Technical Specifications
| Specification | Value |
|---|---|
| Width Options | 920 mm or 1360 mm |
| Depth | 695 mm |
| Overall Height | 1950 mm |
| Roller Table Height Adjustment | 700 - 900 mm |
| Height Adjustment Increment | 50 mm |
| Tabletop Inclination | Up to 5° |
| Load Capacity per Table | 150 kg |
| Leg / Ladder Material | 20/10th sheet steel |
| Lower Cross-Member Material | 25/10th sheet steel |
| Top Options | Gravity roller top or roller track top |
| Castor Option | 100 mm diameter rubber tyres, 2 with brakes |
| Connection Accessories | 2 connecting parts included |
| Standard Adjustment Kit | Jack kit included |
| Optional Accessories | One or two lower shelves, wide range of add-ons |
| Compliance | XPD 65762 |
| Origin | Made in France |
| Warranty | 5 years |
Standard Delivery
- 1 x Workstation with conveyor table
- 1 x Jack kit for height adjustment
- 2 x Connecting parts for table linking or ball transfer table attachment
Contact Us for a Quote or Consultation
Email: [email protected]
Call: +971 44058154
WhatsApp: +971543554679
Enhance your operations with the reliable and cost-effective solution from SALESBRIDGES. Request your quote today.
Made in France
