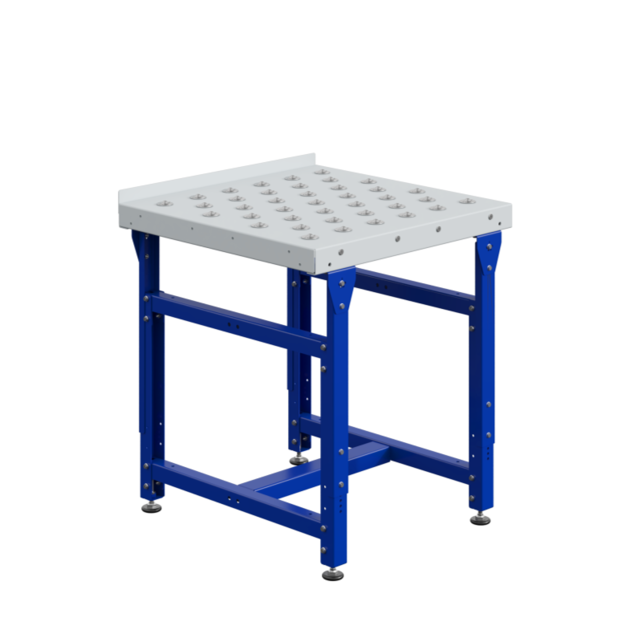

Conveyor worktable ball transfer table 695 x 695 mm 150Kg
Ball transfer workplace conveyor table made of steel adjustable height 700 to 900mm, Length x width 695x695 mm. Load capacity 150Kg 5 years warranty. Made in France
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Conveyor Worktable Ball Transfer Table 695 x 695 mm 150 Kg
Smooth Multi-Directional Load Handling
This ball transfer table is designed to improve product movement and workstation efficiency in assembly, packing, and material handling applications. Its compact 695 x 695 mm platform allows loads to be moved easily in multiple directions, making it ideal for transfer points between conveyor tables and workstations.
Adjustable Height and Heavy-Duty Steel Construction
The table is built with two removable legs made of 20/10th sheet steel, a low cross-member in 25/10th sheet steel, and a ball plate in 20/10th sheet steel for reliable industrial performance. It is mechanically height-adjustable from 700 to 900 mm and allows a maximum table inclination of 5°. Supplied with 39 zinc-plated steel balls and two end-of-line stops, it offers controlled and efficient load transfer. Optional 100 mm castors with rubber tyres are available for added mobility.
Key Features
- Ball transfer table for easy multi-directional load movement
- Mechanically adjustable height from 700 to 900 mm
- Equipped with 39 zinc-plated steel balls
- Includes 2 connecting plates for attachment to conveyor tables
- Made in France with 5-year warranty and compliance with XPD 65762
Technical Specifications
| Specification | Value |
|---|---|
| Table Size | 695 x 695 mm |
| Load Capacity | 150 kg |
| Height Adjustment | 700 - 900 mm |
| Maximum Inclination | 5° |
| Number of Steel Balls | 39 |
| Load Capacity per Ball | 15 kg |
| Ball Material | Zinc-plated steel |
| Leg Material | 20/10th sheet steel |
| Low Cross-Member Material | 25/10th sheet steel |
| Ball Plate Material | 20/10th sheet steel |
| Junction Plate Material | 25/10th sheet steel |
| Castor Option | 100 mm rubber tyres, 2 with brakes |
| Compliance | XPD 65762 |
| Origin | Made in France |
| Warranty | 5 years |
Standard Delivery
- 1 x Ball transfer table
- 39 x Zinc-plated steel balls installed
- 2 x End-of-line stops
- 2 x Connecting plates for conveyor table attachment
- 1 x Jack kit for height adjustment
Contact Us for a Quote or Consultation
Email: [email protected]
Call: +971 44058154
WhatsApp: +971543554679
Enhance your operations with the reliable and cost-effective solution from SALESBRIDGES. Request your quote today.
Made in France
