Conveyor table with 3 rails roller track, mechanical height adjustment 150Kg
Workplace Conveyor belt of steel roller table adjustable height 700 to 900mm, depth
695mm with 3 different length 925, 1360 or 1800mm. Load capacity 150Kg 5 years warranty. Made in France
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list

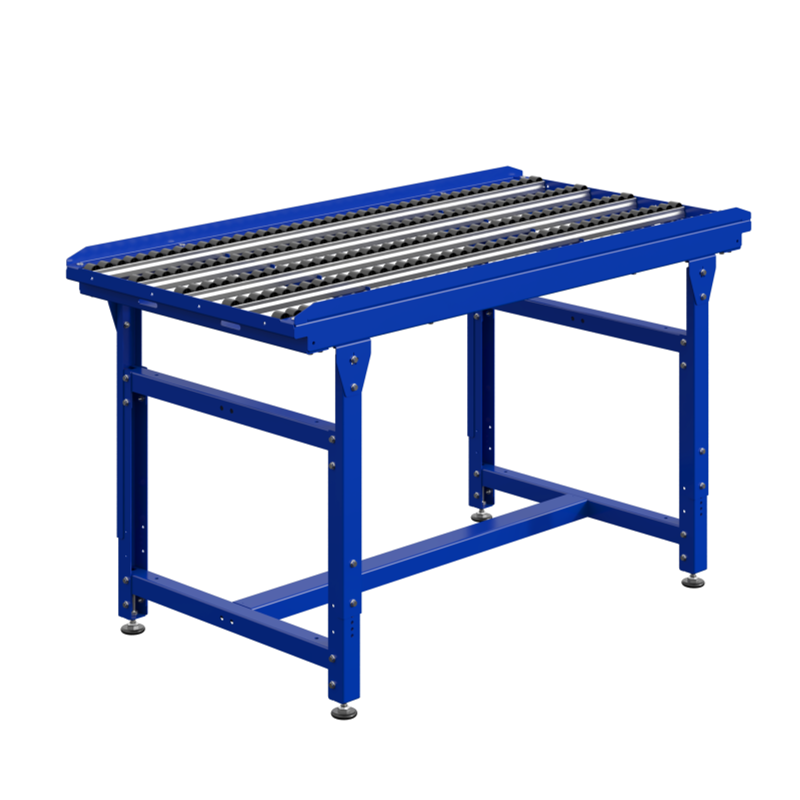

Conveyor Table with 3 Rails Roller Track, Mechanical Height Adjustment 150 Kg

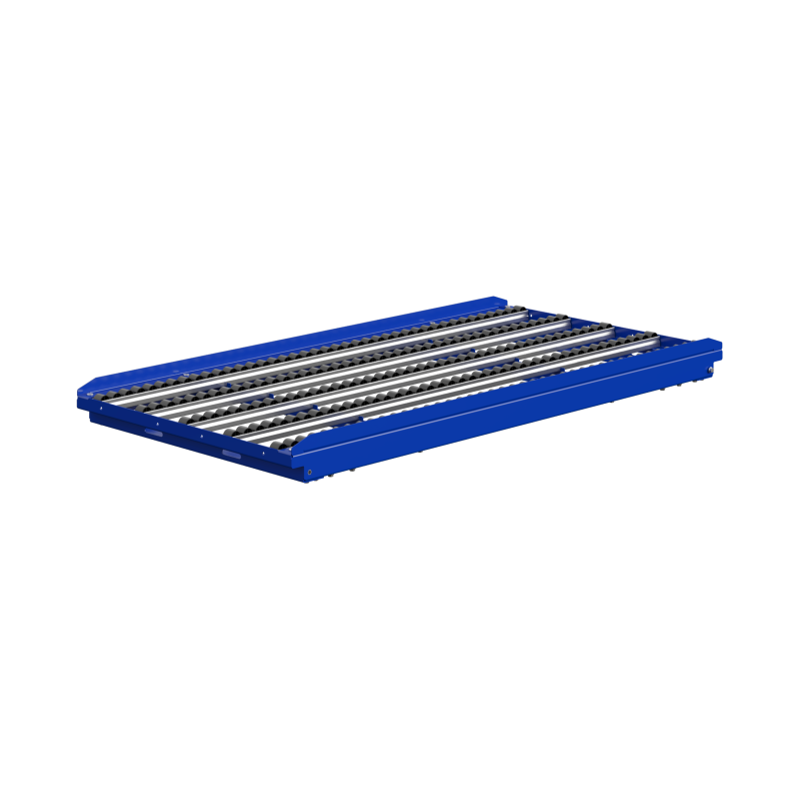

Efficient Roller Track Top for Smooth Product Flow
This conveyor table is designed for efficient material flow in production, packing, and assembly environments. The top can be fitted with three roller track rails with 30 mm diameter rollers, allowing smooth and controlled movement of cartons, bins, and components across the workstation.
Strong Modular Construction with Adjustable Height
The top structure is manufactured from durable sheet steel, with a 25/10th steel frame and 20/10th steel edges and rail guide combs. It is fully removable and assembled using screws, nuts, and four ladder/top junction plates made of 25/10th sheet steel. The table is mechanically height-adjustable from 700 to 900 mm in 50 mm increments, making it easy to adapt to different workstation layouts. Optional end-of-line stops and additional roller rails can also be added as needed.
Key Features
- Conveyor table with 3 roller track rails for smooth material handling
- Mechanical height adjustment from 700 to 900 mm
- Strong sheet steel construction with removable top assembly
- Side edges can be fixed as raised or fallen edges
- Made in France and compliant with XPD 65762
Technical Specifications
| Specification | Value |
|---|---|
| Width Options | 925 mm, 1360 mm, 1800 mm |
| Depth | 695 mm |
| Height Adjustment | 700 - 900 mm |
| Height Increment | 50 mm |
| Load Capacity | 150 kg |
| Roller Track Configuration | 3 rails |

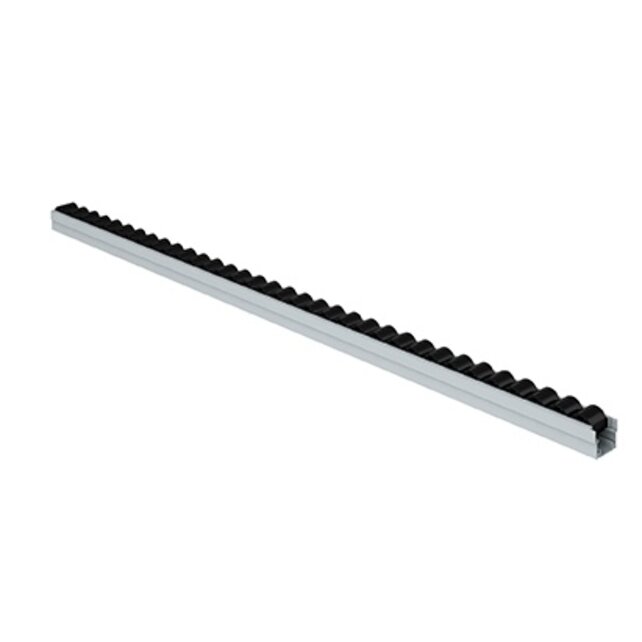

| Roller / Rail Diameter | 30 mm |
| Frame Material | 25/10th sheet steel |
| Edges and Rail Guide Combs | 20/10th sheet steel |
| Junction Plates | 4 ladder/top junction plates in 25/10th sheet steel |
| Additional Rail Capacity | Up to 13 roller rails with 48 mm pitch |
| Edge Position | Raised or fallen edges |
| Optional Accessories | End-of-line stops |
| Fixing Supports | 2 supports for fixation between two PROD’LINE workstations |
| Origin | Made in France |
| Warranty | 5 years |
| Compliance | XPD 65762 |
Standard Delivery
- 1 x Conveyor table top with 3 roller track rails
- 2 x Fixing supports for installation between workstations
- Standard assembly hardware
Contact Us for a Quote or Consultation
Email: [email protected]
Call: +971 44058154
WhatsApp: +971543554679
Enhance your operations with the reliable and cost-effective solution from SALESBRIDGES. Request your quote today.
Made in France
| Brand | Salesbridges |
| Article code | SB010050036 |
| SKU | SB010050036 |
| EAN | 9503434392440 |
