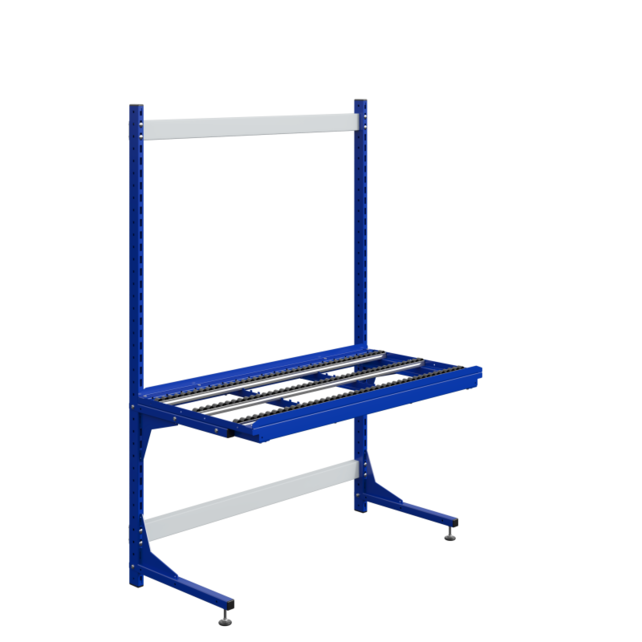

Production line workstation conveyor roller track working table 150kg
Workstation with metal structure perforated profile with total height of 1950 mm adjustable height with 50mm incrementation. Load capacity 150kg. Choice of length 925mm or 1360mm. Depth 695mm. 5 years warranty. Made in France
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Conveyor Gravity Roller and Roller Track Tops Workstation Table
Flexible Conveyor Top Options for Smooth Material Flow
This conveyor workstation table is designed to improve product handling efficiency in assembly, packing, and production environments. The top structure is manufactured from durable 25/10th sheet steel for the frame and 20/10th sheet steel for the edges and rail guide combs. It can be configured with either galvanized steel gravity rollers or roller track rails with a diameter of 30 mm, allowing smooth and controlled movement of boxes, bins, and components.
Adjustable, Modular, and Built for Industrial Use
The conveyor tables consist of two fully removable legs or ladders made of 20/10th sheet steel and a lower cross-member in 25/10th sheet steel, assembled with screws and nuts for strength and easy servicing. The table is mechanically adjustable in height from 700 to 900 mm in 50 mm increments, and the tabletop can incline up to 5°. Each unit is supplied with a jack kit and two connecting parts for linking multiple tables together or attaching to a ball transfer table. Optional castors, lower shelves, and other accessories are available to suit different workstation layouts.
Key Features
- Available with gravity roller tops or roller track tops
- Mechanically adjustable table height from 700 to 900 mm
- Top inclination up to 5° for improved product flow
- Strong removable steel construction for modular installation
- Made in France with 5-year warranty and compliance with XPD 65762
Technical Specifications
| Specification | Value |
|---|---|
| Width Options | 920 mm or 1360 mm |
| Depth | 695 mm |
| Overall Height | 1950 mm |
| Adjustable Roller Table Height | 700 - 900 mm |
| Height Adjustment Increment | 50 mm |
| Load Capacity | 150 kg |
| Roller / Rail Diameter | 30 mm |
| Frame Material | 25/10th sheet steel |
| Edges and Rail Guide Combs | 20/10th sheet steel |
| Legs / Ladders Material | 20/10th sheet steel |
| Lower Cross-Member Material | 25/10th sheet steel |
| Maximum Inclination | 5° |
| Additional Roller Rail Pitch | 48 mm |
| Maximum Roller Rails per Table | Up to 13 |
| Castor Option | 100 mm rubber tyres, 2 with brakes |
| Optional Accessories | Lower shelves, end-of-line stops, wide range of add-ons |
| Origin | Made in France |
| Warranty | 5 Years |
| Compliance | XPD 65762 |
Standard Delivery
- 1 x Conveyor table frame with removable legs and lower cross-member
- 1 x Gravity roller top or roller track top as selected
- 1 x Jack kit for height adjustment
- 2 x Connecting parts for linking tables or attaching to a ball transfer table
- Standard assembly hardware
Contact Us for a Quote or Consultation
Email: [email protected]
Call: +971 44058154
WhatsApp: +971543554679
Enhance your operations with the reliable and cost-effective solution from SALESBRIDGES. Request your quote today.
Made in France
| Brand | Salesbridges |
| Article code | SB010050025 |
| SKU | SB010050025 |
| EAN | 9504633318972 |
