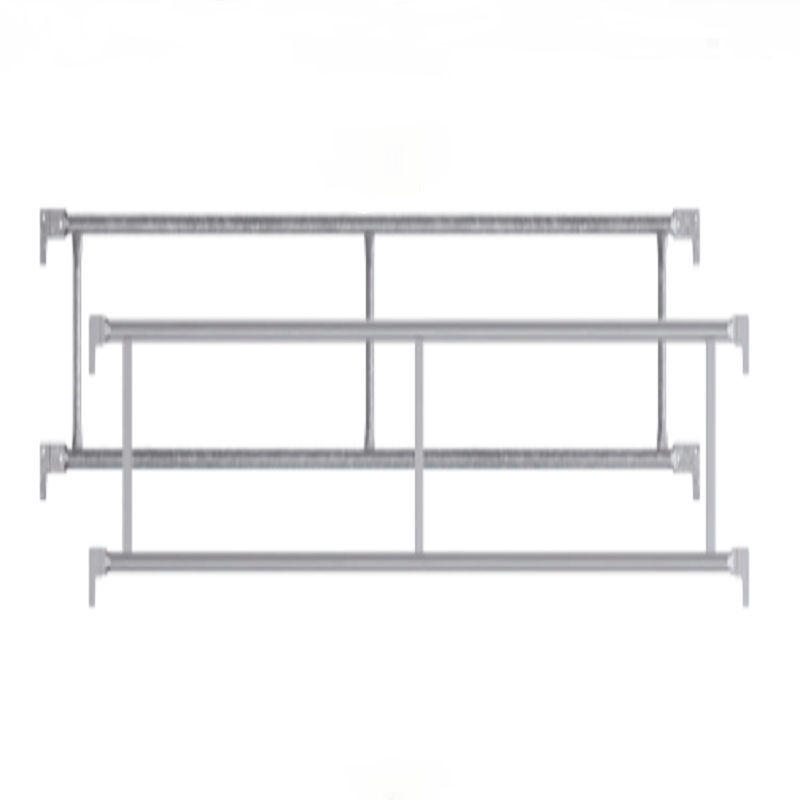

Scaffolding Double Guard Rail 307 – Galvanized Steel / Aluminum
Galvanized guard rail horizontally attached to the scaffolding frame stands on the platform side 30.7 cm overall length, 54.5 cm height.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Scaffolding Double Guard Rail 307 – Galvanized Steel / Aluminum (3072 mm)
Complete Side Protection for Scaffolding Platforms
The Scaffolding Double Guard Rail 307 is a robust safety component designed to provide both main (top) and intermediate (mid) railing in one unit. Installed horizontally on scaffold frames, it ensures maximum fall protection for workers at height.
Key Features
- 2-in-1 guardrail system (main + intermediate rail)
- Suitable for 3072 mm scaffold bays
- Available in galvanized steel and lightweight aluminum
- Quick installation using wedge-lock system
- Compatible with standard frames, posts, and front frames
- Provides complete edge protection with toe board (curb)
Technical Specifications
Steel Version
| Specification | Value |
|---|---|
| System Length | 3072 mm |
| Overall Length | 3105 mm |
| Height | 545 mm |
| Weight | 13.1 kg |
| Material | Galvanized Steel |
Aluminum Version
| Specification | Value |
|---|---|
| System Length | 3072 mm |
| Overall Length | 3105 mm |
| Height | 545 mm |
| Weight | 4.9 kg |
| Material | Aluminum |
Construction & Design
- Made from high-strength pipes flattened at both ends
- Ends fitted with welded plates for secure locking
- Installed into wedge pockets on:
- Scaffold frames
- Handrail posts
- Front frames
- Connected to vertical frame elements for stability
Functional Role in Safety System

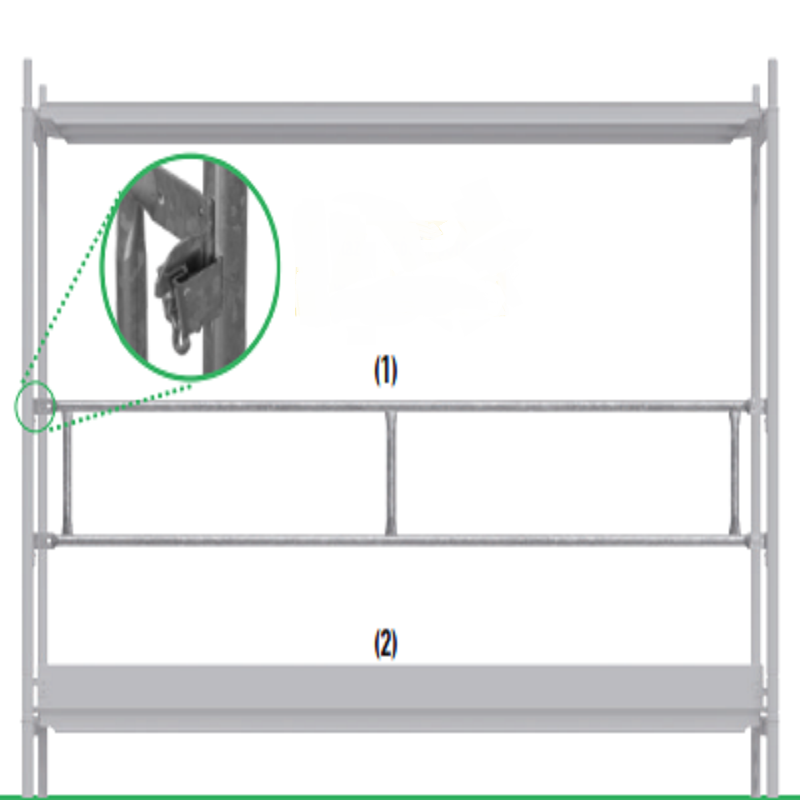

The double guard rail forms part of a complete scaffolding railing system, consisting of:
- Main railing (top rail)
- Intermediate railing (mid rail) (integrated in this unit)
- Toe board (curb)
Together, they provide full fall protection compliance on scaffolding platforms.
Functional Advantages
- Combines two rails into one efficient component
- Reduces installation time and components needed
- Ensures strong and stable edge protection
- Corrosion-resistant for long service life
- Aluminum option for easier handling and transport
Applications
- Construction scaffolding systems
- Industrial maintenance platforms
- Façade work and renovation
- Temporary access structures
- High-rise building projects
Advantages
- Essential for scaffolding safety compliance
- Durable and weather-resistant materials
- Easy integration into modular scaffolding systems
- Lightweight aluminum alternative available
- Improves overall site safety and efficiency
Optional
- Aluminum version for lightweight applications
- Compatible toe boards and posts available
