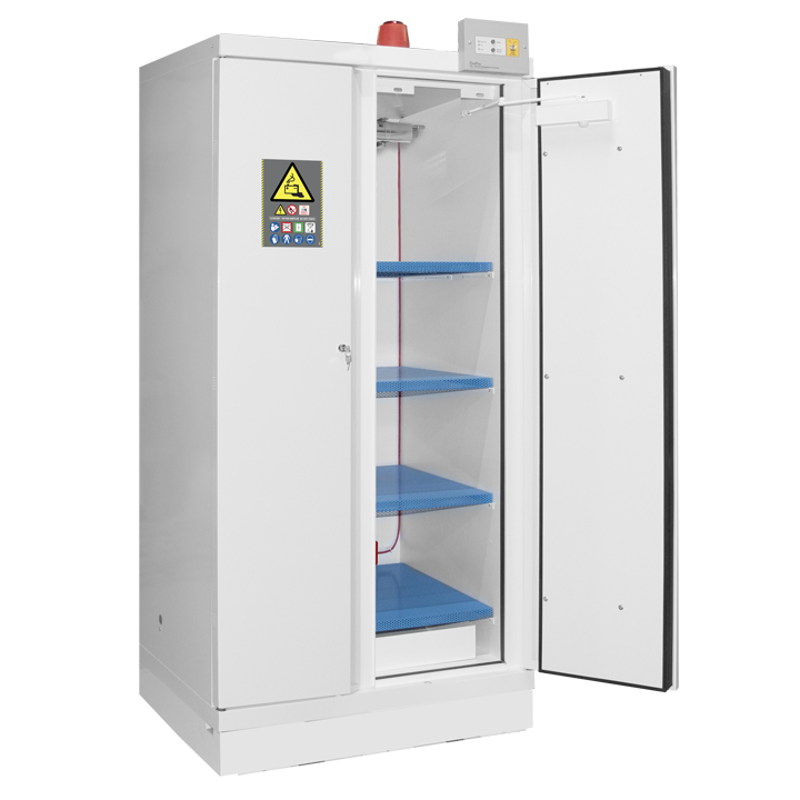

90 MINUTES-2 DOOR SAFETY CABINETS FOR LITHIUM BATTERIES-2050 x 905 x 903

90 MINUTES-2 DOOR SAFETY CABINETS FOR LITHIUM BATTERIES-2050 x 905 x 903

• Construction for 90 min fire resistance to EN 14470-1

• Internal Fire Protection 180 min EN 13501-2

• Tested 105 min from outside to inside in accordance with standard EN 14470-1

                  Storage of Lithium Ion batteries

COMPLIANCE

REGULATION - EU -2023/1542 - Article 42 - 4. Storage or transport conditions ensure the conformity of batteries.
• Construction for fire resistance (from outside to inside) of 105 min or 90 min, according to EN 14470-1 & EN 1363-1.
• Fireproof construction (from the inside to the outside) certified EI 180 min type A1, according to NF EN 13501-2.
• Standardised pictograms in accordance with ISO 3864, ISO 7010, European Directive 92/58/EEC and EN 14470-1.

FEATURE

Full height handle for better ergonomics and ease of opening.
• Legs for easy movement by pallet truck: avoids heavy handling and allows the cabinet to be moved easily in the event of a new layout
• Aesthetic and easy to use skirting board cover without the need for fixing tools.
• Ventilation ducts with hot-melt system to isolate the contents of the cabinet in the event of fire.

DESCRIPTION

• Cabinet Material Sheet steel 12/10th and inner body built in melamine
• External dimensions H x W x D (mm) 2050 x 905 x 903
• Internal dimensions H x W x D (mm) 1720 x 760 x 827
• Load capacity per shelf (kg) 51
• Nb of Doors 2
• Doors type Swing Doors
• Hinges Left and right
• Door closure Automatic Closure

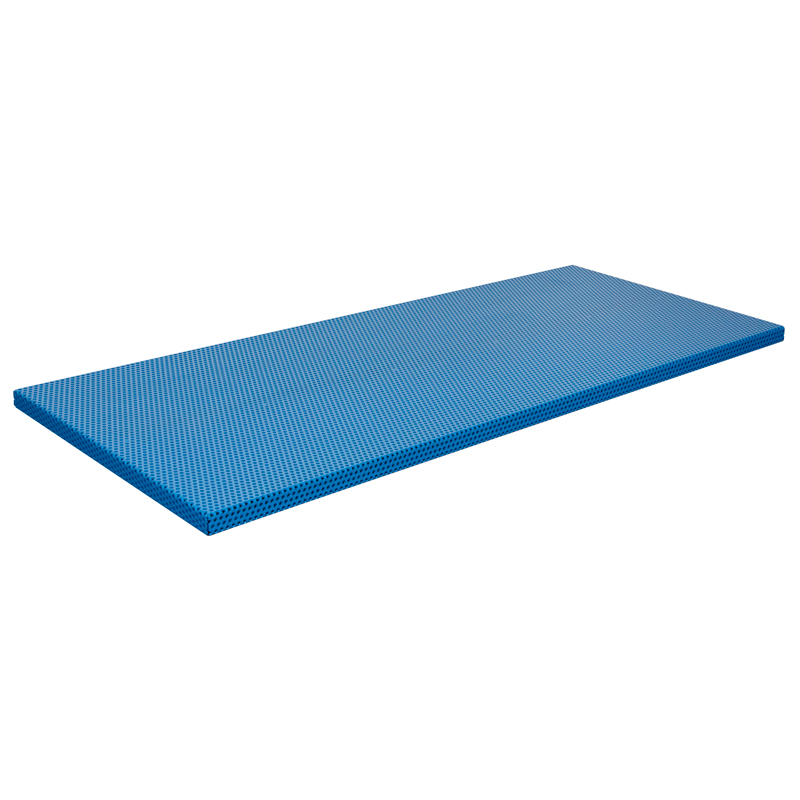

• Perforated shelves 4
• Weight (Kg) 392

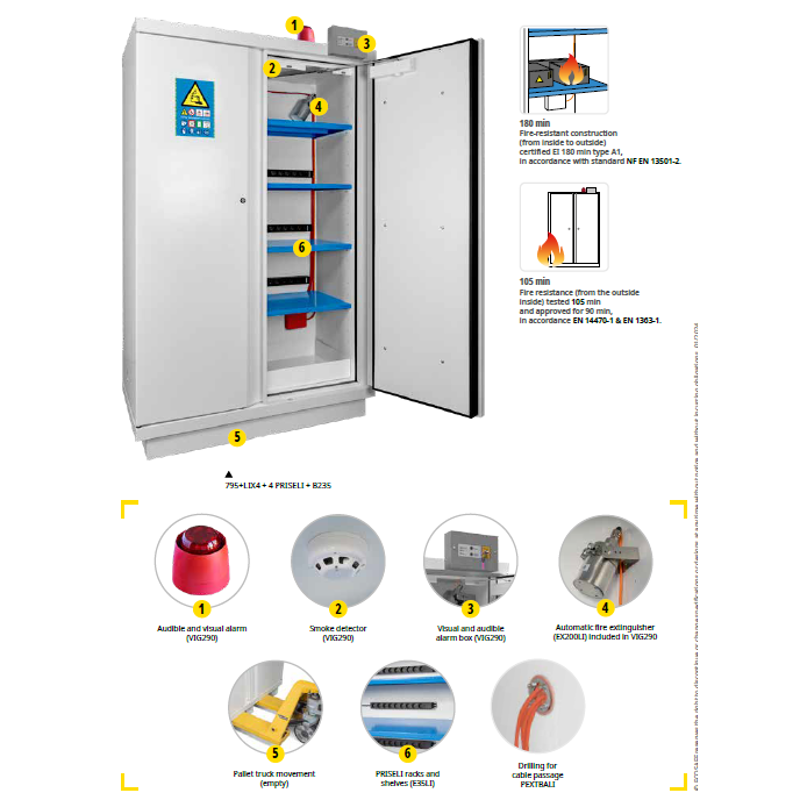

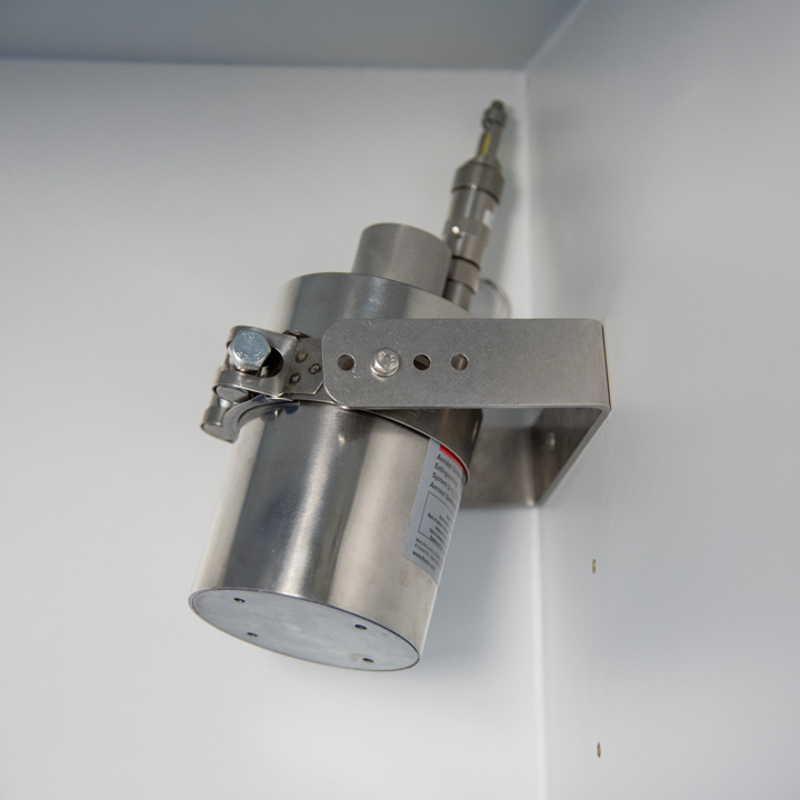

Price includes 4 E1FLI shelves+ 1 x VIG590 (visual and audible alarm, control box, automatic smoke detector, 1 EX500LI fire extinguishers and cable duct on top [ref. PINTOLI])

Option For Charging

• Rack of 7 electrical outlets type G (United Kingdom)
• Rack of 6 electrical outlets equipped with a thermal-magnetic circuit breaker
• 4-socket safety inverter for VIG190 or VIG290 only
  (H 90 x W 163 x D 245 mm - 230 volts - 300 watts - 500 volts)
• Rack of 8 electrical outlets type J (Switzerland)

 To further secure the storage ,Optional solutions, Accessories Recommended

• Digital code lock, one per door, equipped with its security key
• Visual & audible alarm + control box + smoke detector + fire extinguisher + Cable Duct

• Breakthrough for cable entry with fire-resistant cable

RECOMMANDATION

• For Simple battery storage: Cabinet equipped with perforated shelves and a Containment sump.
• For Storage and charging of batteries: Cabinet equipped with perforated shelves, a Containment sump and electrical outlet racks .
• For Simple battery storage + advanced protection system: Cabinet equipped with perforated shelves with  a Containment sump + optional advanced protection system (either a fire extinguisher or a security set including visual and sound alarm, control box, automatic smoke detector, fire extinguisher and cable passthrough)..
• For Storage and charging of batteries + advanced protection system: Cabinet equipped with perforated shelves, a Containment sump and electrical outlet racks + optional advanced protection
  system (either a fire extinguisher or a security set including visual and sound alarm, control box, automatic smoke detector, fire extinguisher and cable pass-through)

In the event of a fire, the cabinets must not be moved except by the fire brigade.
