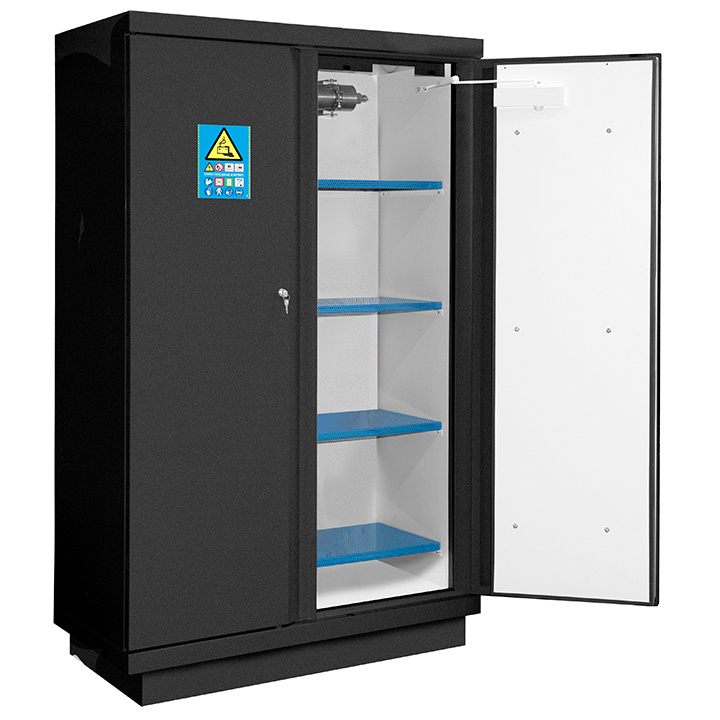

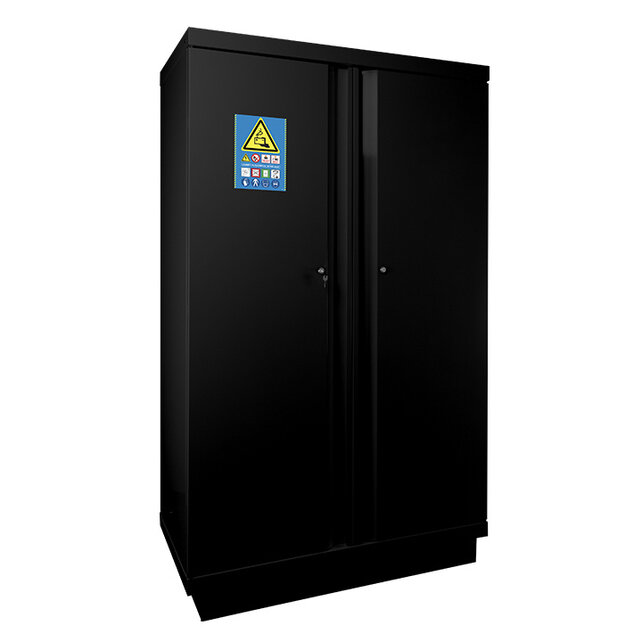

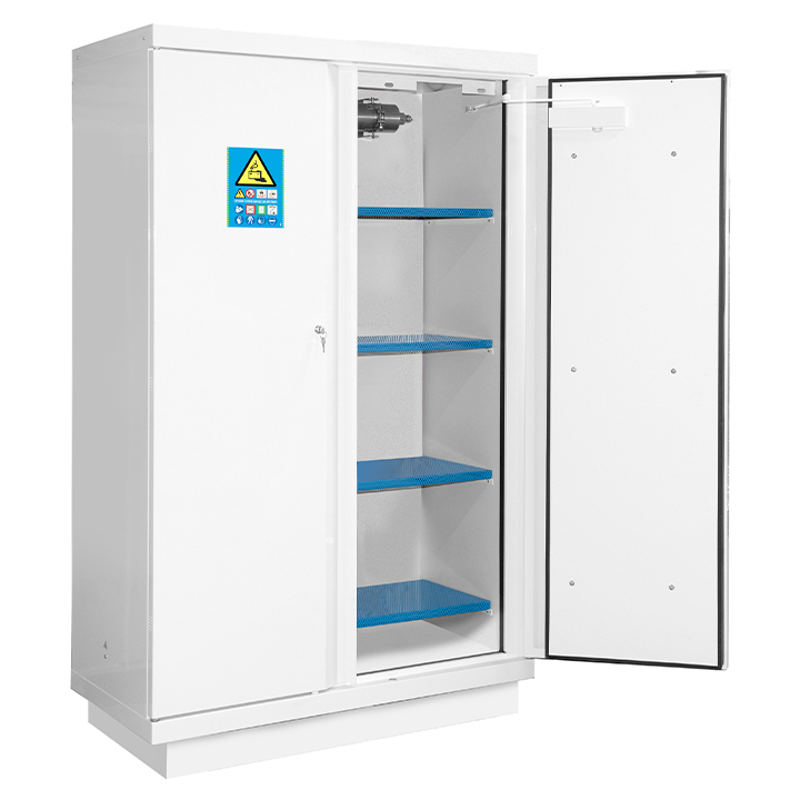

90 MINUTES-2 DOORS CABINETS FOR LITHIUM BATTERIES-1950 x 1137 x 620

90 MINUTES-SECURITY CABINETS FOR LITHIUM BATTERIES-1950 x 1137 x 620

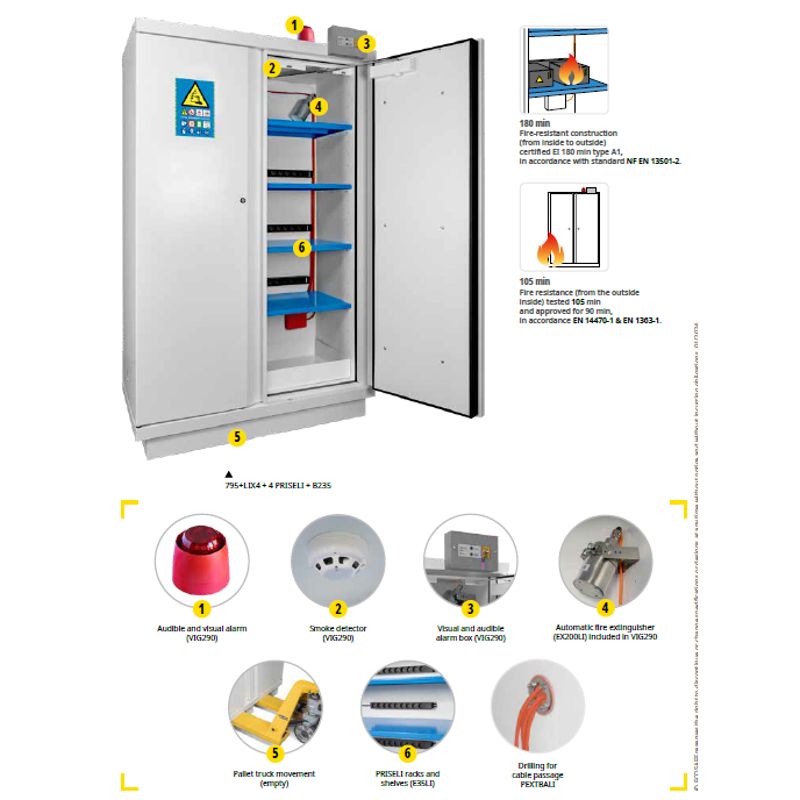

• Fire resistance 90 min, Tested and approved in accordance EN 14470-1 & EN 1363-1

• Inside to outside fire stop construction EI180

• Tested 105 min from outside to inside in accordance with standard EN 14470-1

Storage of Flammables                      Storage of Lithium Ion batteries                   FM Compliance

COMPLIANCE

• REGULATION - EU -2023/1542 - Article 42 - 4. Storage or transport conditions ensure the conformity of batteries.
• Complies with level 2 of standard EN 16121+A1 (opening/ closing 80000 cycles and placement of the load defined by the manufacturer on the shelves).
• Proven fire resistance of 105 minutes, according to the ISO 834 curve as per the EN 14470-1 standard
• Standardized warning labels in accordance to ISO 3864 and ISO 7010, as well as the European directive 92/58/EEC.

FEATURE

• 105-minute fire resistant and made in France
• Storage of flammables and Lithium Batteries
• Locking system
• Thermo-expanding seals of the doors
• Reduce the risk of fire and explosion
• Holes for the connection to the ventilation

DESCRIPTION

• Cabinet Material Sheet steel 12/10th and inner body built in melamine
• External dimensions H x W x D (mm) 1950 x 1137 x 620
• Internal dimensions H x W x D (mm) 1620 x 1000 x 410
• Load capacity per shelf (kg) 100
• Nb of Doors 2
• Doors type Swing Doors
• Hinges Left and right
• Door closure Automatic Closure

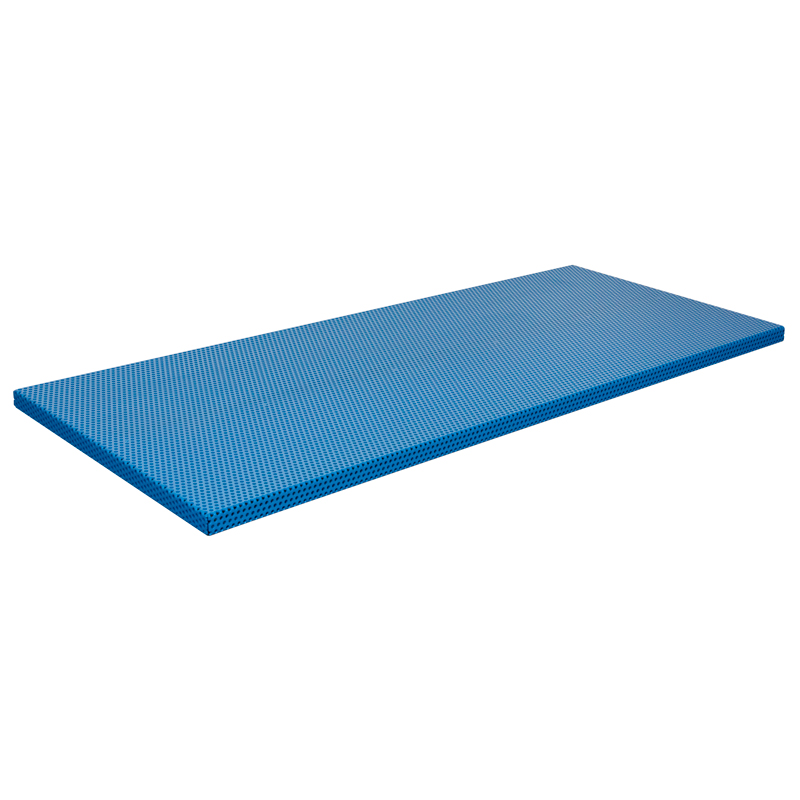

• Perforated shelves 4
• Weight (Kg) 455

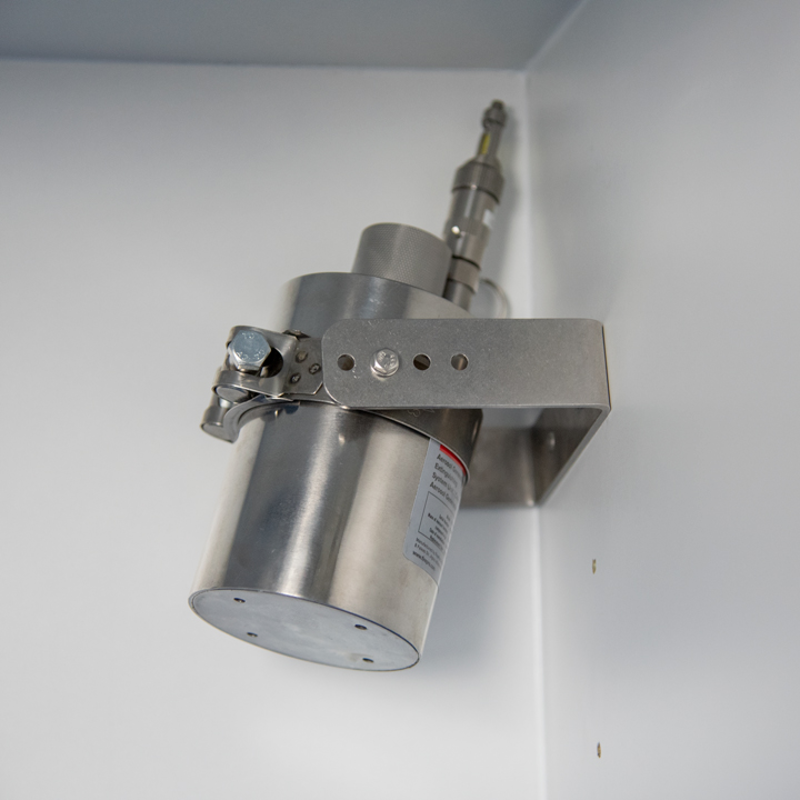

Price includes  4 x Perforated Shelf + Fire Extinguisher With Automatic Triggering at 79°C per Thermal Bulb for Lithium

Options For Charging

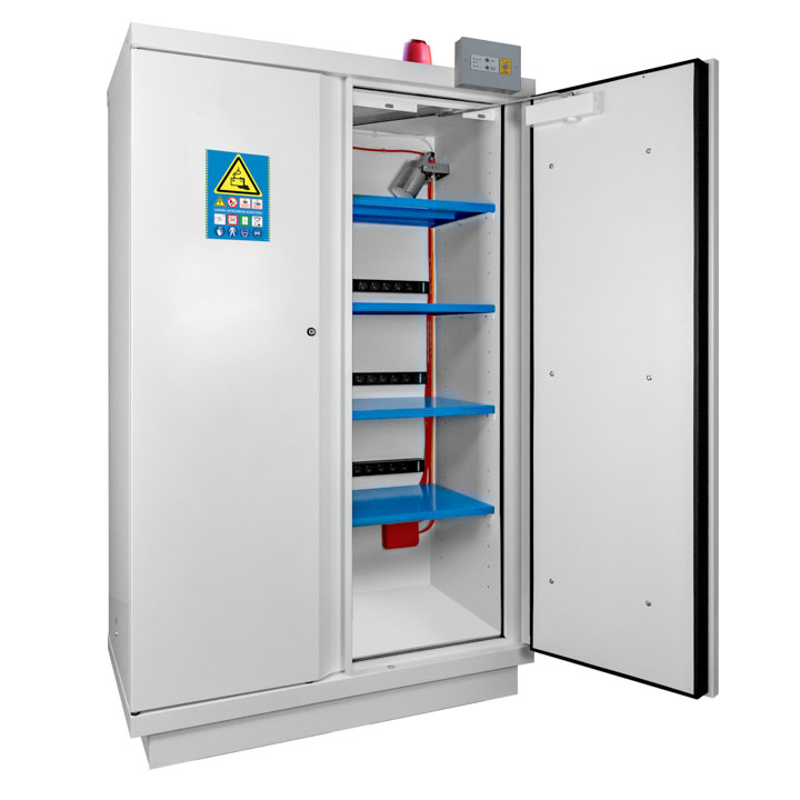

• Rack of 7 electrical outlets type G (United Kingdom)
• Rack of 6 electrical outlets equipped with a thermal-magnetic circuit breaker. on request
• 4-socket safety inverter for VIG190 or VIG290 only (H 90 x W 163 x D 245 mm - 230 volts - 300 watts - 500 volts) on request.

 To further secure the storage ,Optional solutions, Accessories Recommended - FILTRATION OR VENTILATION BOXES

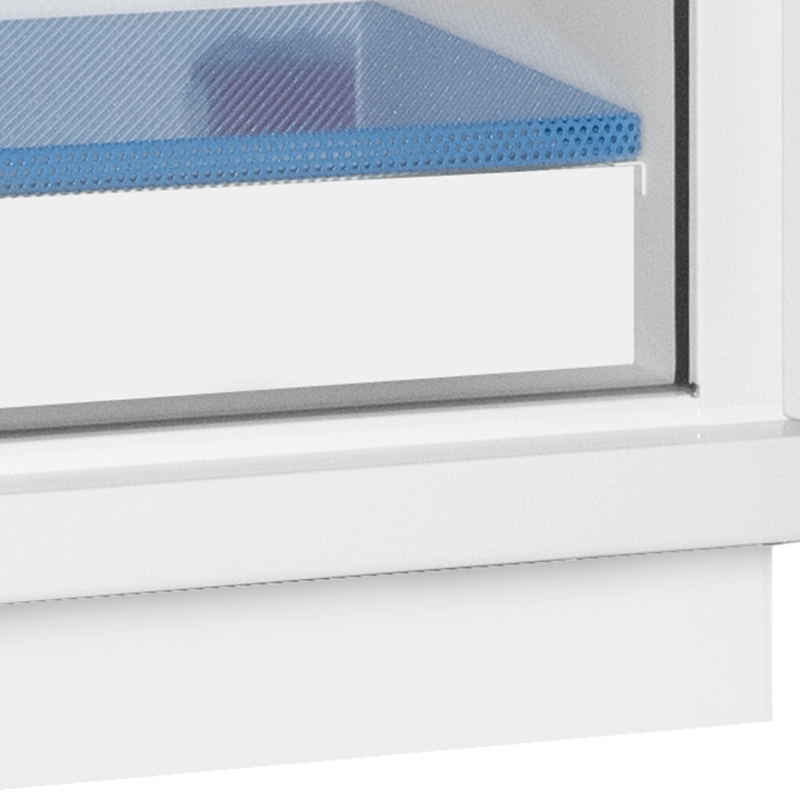

• CONTAINMENT SUMP : Retention capacity (L)40  - 30 Min Fire Resistance.
• Perforated cover plate 30 Min Fire Resistance.

• Filtration box with activated carbon filter for organic and corrosive vapors 30 Min Fire Resistance.

• Ventilation box for a connection to the outside
• Visual & audible alarm + control box + smoke detector + fire extinguisher+Cable Duct

• Connecting kit
• Breakthrough for cable entry with fire-resistant cable

• WiFi alarm and data logger system
• Digital code lock, one per door, equipped with its security key

RECOMMANDATION

• For Simple battery storage: Cabinet equipped with perforated shelves and a Containment sump.
• For Storage and charging of batteries: Cabinet equipped with perforated shelves, a Containment sump and electrical outlet racks .
• For Simple battery storage + advanced protection system: Cabinet equipped with perforated shelves with  a Containment sump + optional advanced protection system (either a fire extinguisher or a security set including visual and sound alarm, control box, automatic smoke detector, fire extinguisher and cable passthrough)..
• For Storage and charging of batteries + advanced protection system: Cabinet equipped with perforated shelves, a Containment sump and electrical outlet racks + optional advanced protection
  system (either a fire extinguisher or a security set including visual and sound alarm, control box, automatic smoke detector, fire extinguisher and cable pass-through)

In the event of a fire, the cabinets must not be moved except by the fire brigade.
