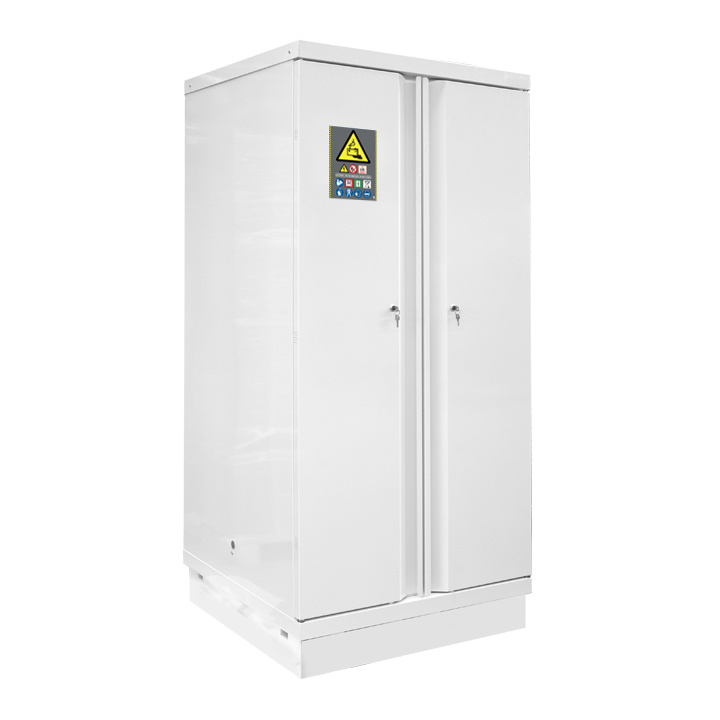

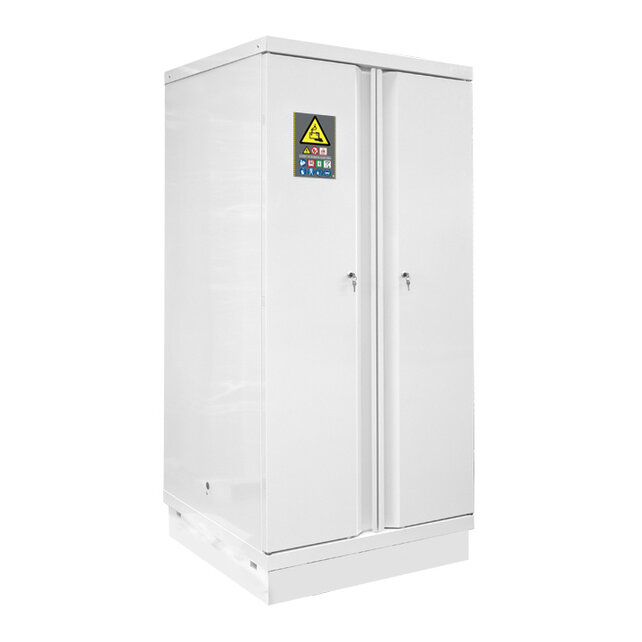

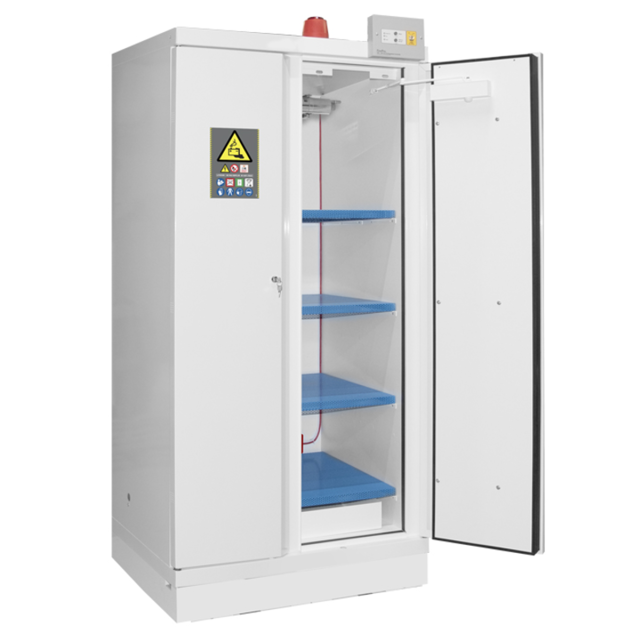

90-Minute Fire-Resistant Lithium-Ion Battery Storage & Charging Cabinet (2 Doors), 2080 × 905 × 903 mm

790+1FLIA4 90-min Fire-Resistant Lithium-Ion Battery Storage & Charging Cabinet (Deep Cabinet) | SALEBRIDGES

                  Storage of Lithium Ion batteries

The 790+1FLIA4 is a 90-minute fire-resistant lithium-ion battery safety cabinet designed for safer storage and charging of Li-ion batteries in industrial, workshop, warehouse, and facility environments. This model is a deep cabinet (903 mm depth) compared to many standard safety cabinets, making it ideal for larger battery packs, chargers, and organized shelf layouts.

SALEBRIDGES supplies this cabinet across the GCC (UAE, Saudi Arabia, Oman, Kuwait, Bahrain, Qatar). For pricing and availability, request an RFQ.

Key Benefits (Why choose 790+1FLIA4)

• Deep cabinet design (903 mm depth): more usable space for chargers, battery packs, and safer cable routing than shallower models.
• 90-minute fire resistance (outside → inside): helps protect contents when exposed to external fire.
• EI 180 fire-stop performance (inside → outside): helps contain an internal battery incident and reduce fire spread.
• Pre-equipped configuration: supplied with 4 perforated shelves + 1 automatic fire extinguisher for Li-ion risk scenarios.
• Ergonomic full-height handle for easier daily operation.
• Self-closing, lockable doors for controlled access.
• Ventilation ports (100 mm diameter) for optional connection.

Compliance & Certifications (Important for HSE / Procurement)

The 790+1FLIA4 is designed and built to recognized European fire-safety requirements:

• 90 min fire resistance (external to internal) in accordance with EN 14470-1 and EN 1363-1
• 180 min fire-stop construction (internal to external) certified EI 180 min type A1, in accordance with NF EN 13501-2 / EN 13501-2
• CE certified
• Electrical assembly compliant with Low Voltage Directive 2014/35/EU
• Standardized safety pictograms compliant with ISO 3864, ISO 7010, and Directive 92/58/EEC

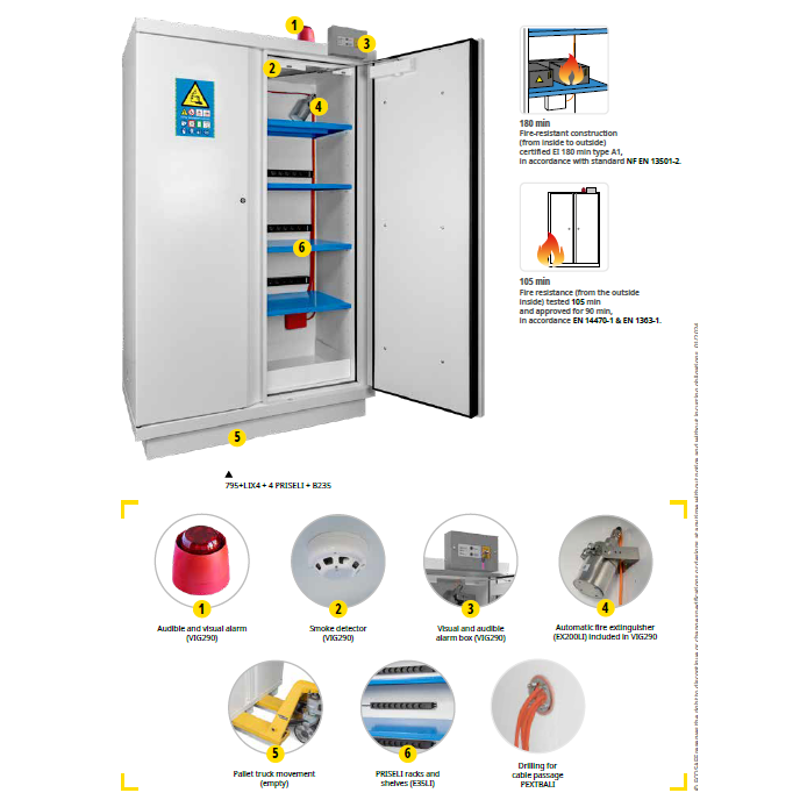

Safety Construction (Passive + Active Protection)

Passive Safety

• Double-walled construction
  • External walls: steel (12/10th grade) with RAL 9010 white epoxy paint
  • Internal walls: RAL 9010 white melamine
• Thermal insulation panels between walls to reduce thermal bridges
• Earthing (grounding) fixing point
• Ventilation ducts with hot-melt isolation system to isolate contents in the event of fire

Active Safety

• Heat-expanding door seals
• Self-closing and key-operated doors
• Ventilation ports with 100 mm outlet for possible duct connection

Technical Specification (790+1FLIA4)

*Internal dimensions are based on the cabinet body specification for the 790+1FLI format.

What’s Included (Pre-Equipped Package)

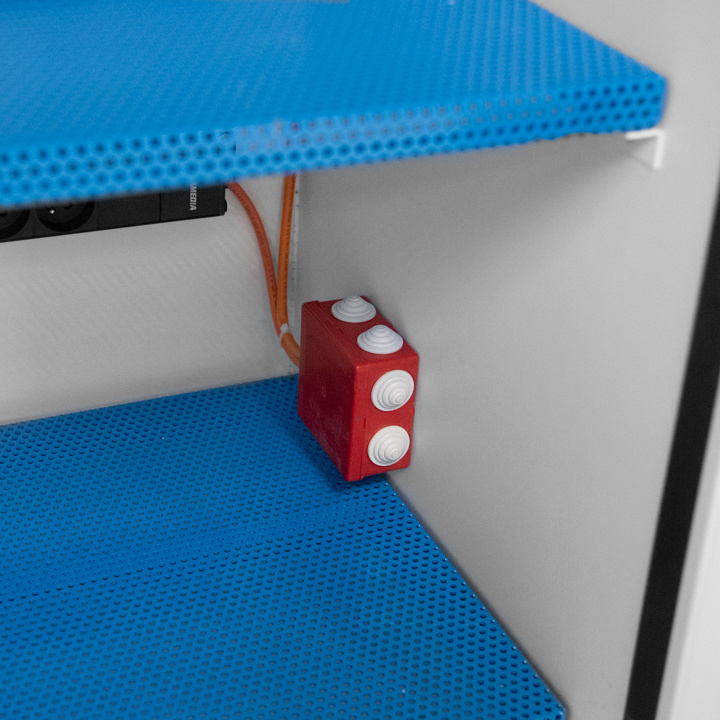

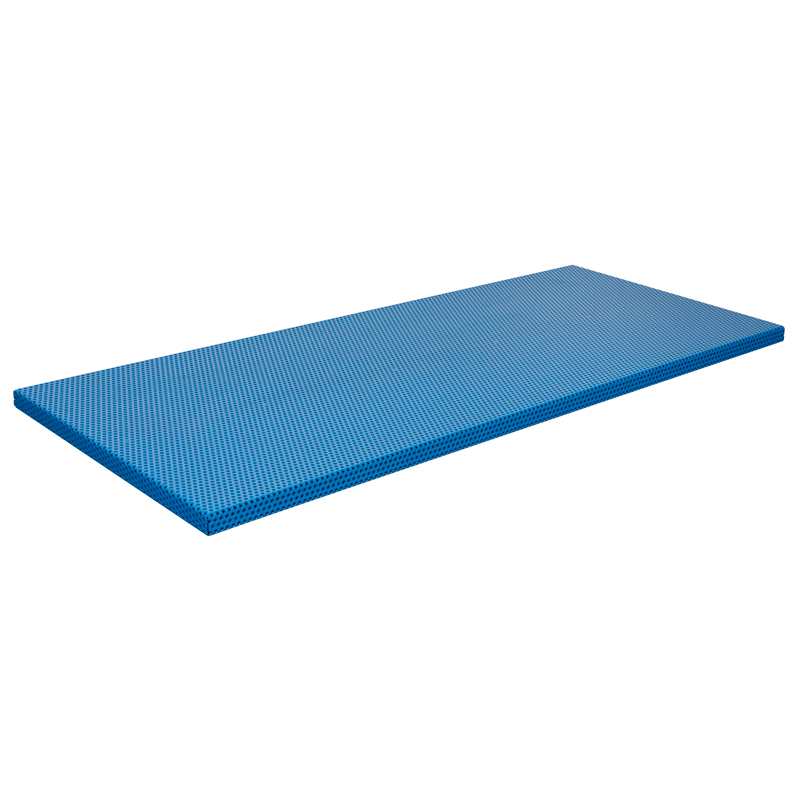

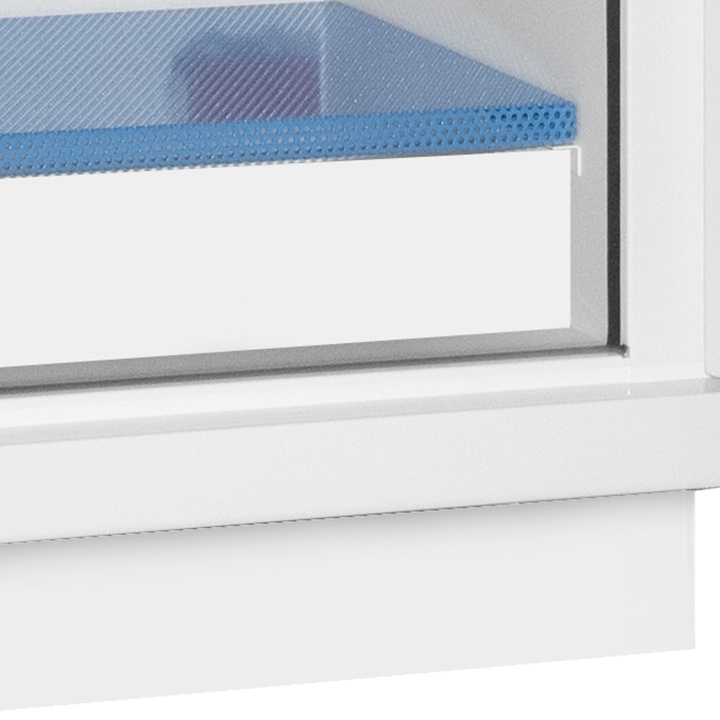

• 4 × E1FLI perforated shelves (each shelf load capacity: 100 kg)

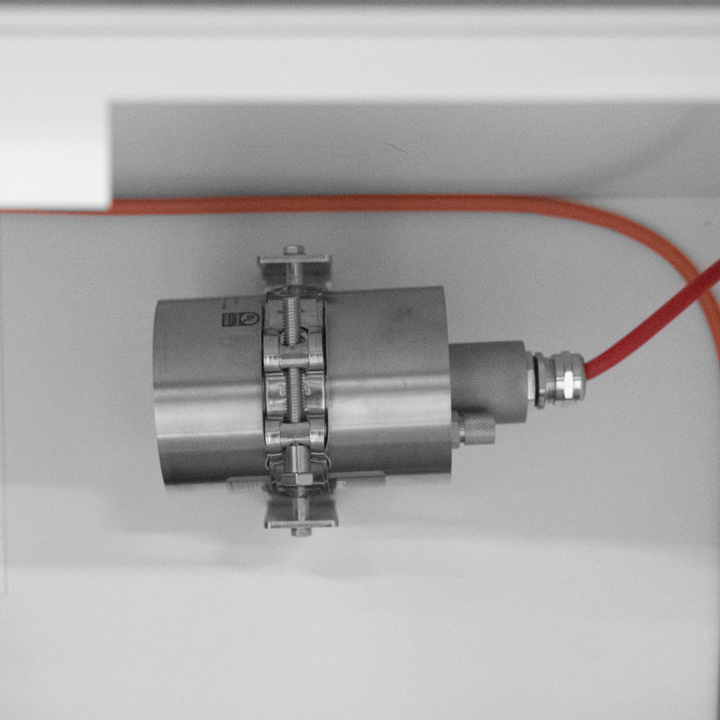

• 1 × EX500LI automatic fire extinguisher, triggered at 79°C (special lithium thermal bulb)

Also Available: Larger Size Option

Need more capacity? This cabinet is also available in a bigger format:

• 790+2FLIA4 (larger-width model for higher storage volume)

Delivery Across the GCC + RFQ

SALEBRIDGES delivers this product across the GCC area. For lead time, delivery, accessories, or project pricing, contact:

[email protected]
+971 44058154
