90 MINUTES-1DOOR CABINETS FOR LITHIUM BATTERIES-1950 x 635 x 620

Product description

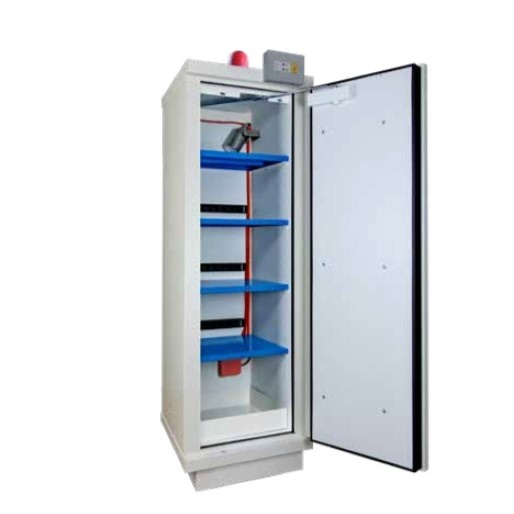

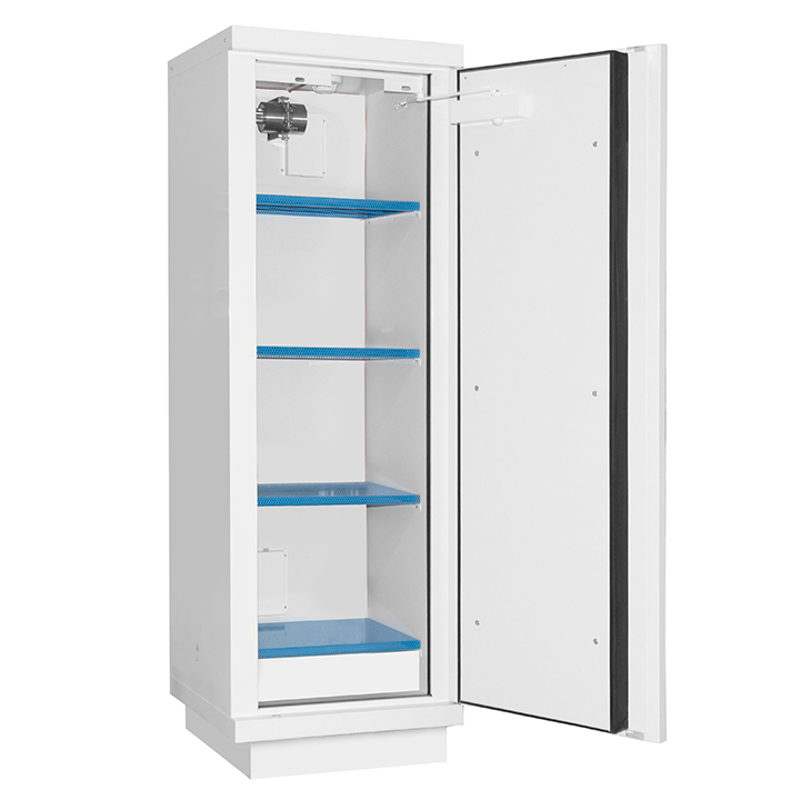

90 MINUTES-SECURITY CABINETS FOR LITHIUM BATTERIES-1950 x 635 x 620

Fire resistance 90 min, Tested and approved in accordance EN 14470-1 & EN 1363-1
Inside to outside fire stop construction EI180
Tested 105 min from outside to inside in accordance with standard EN 14470-1

Storage of Flammables Storage of Lithium Ion batteries FM Compliance

COMPLIANCE

• REGULATION - EU -2023/1542 - Article 42 - 4. Storage or transport conditions ensure the conformity of batteries.
• Complies with level 2 of standard EN 16121+A1 (opening/ closing 80000 cycles and placement of the load defined by the manufacturer on the shelves).
• Proven fire resistance of 105 minutes, according to the ISO 834 curve as per the EN 14470-1 standard
• Standardized warning labels in accordance to ISO 3864 and ISO 7010, as well as the European directive 92/58/EEC.

PASSIVE SAFETY
• Double wall construction
• External walls in 12/10th steel + white epoxy paint RAL 9010.
• Internal walls in white RAL 9010 melamine.
• Thermal insulation panels between the walls to limit thermal bridges.
• Fixing point for earthing.

ACTIVE SAFETY
• Thermo-expanding door seals.
• Ventilation holes with 100 mm diameter ventilation outlet for possible connection.
• Doors with automatic closing and key lock.

FEATURE

105-minute fire resistant and made in France
Storage of flammables and Lithium Batteries
Locking system
Thermo-expanding seals of the doors
Reduce the risk of fire and explosion
Holes for the connection to the ventilation

DESCRIPTION

Cabinet Material Sheet steel 12/10th and inner body built in melamine
External dimensions H x W x D (mm) 1950 x 635 620
Internal dimensions H x W x D (mm) 1620 x 490 x 410
Load capacity per shelf (kg) 80
Nb of Doors 2
Doors type Swing Doors
Hinges Left and right
Door closure Automatic Closure

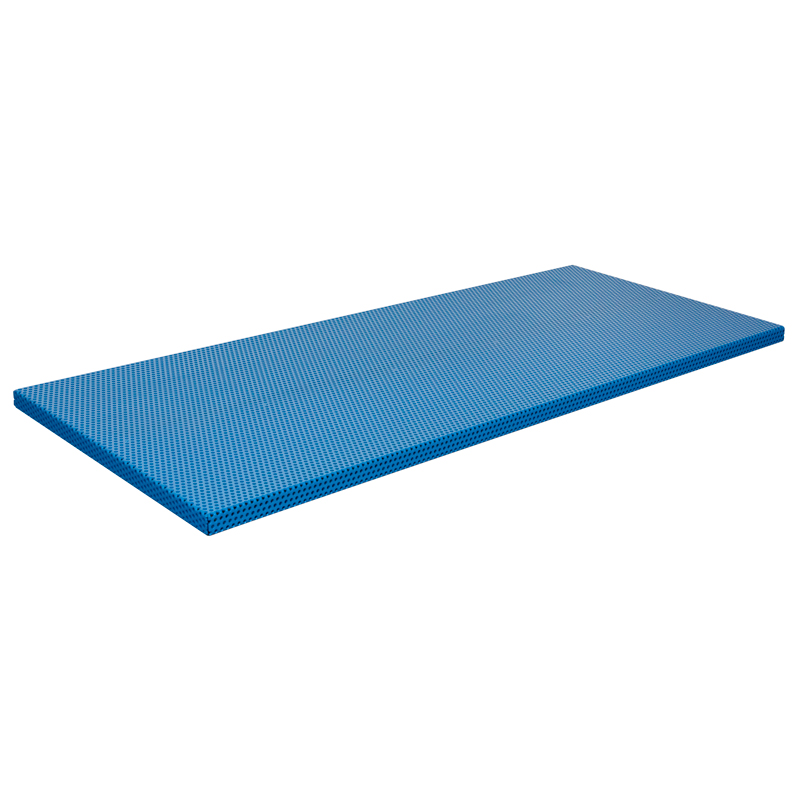

Perforated shelves 4
Weight (Kg) 287

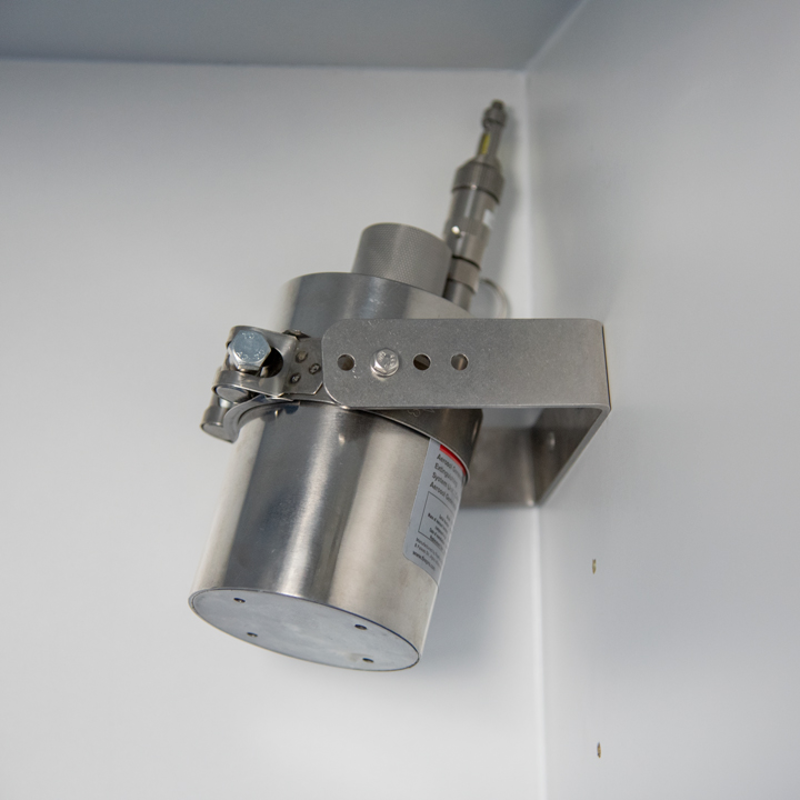

Price including 4 x Perforated Shelf + Fire Extinguisher With Automatic Triggering at 79°C per Thermal Bulb for Lithium

Option For charging

Rack of 8 electrical outlets type F (Germany)
Rack of 8 electrical outlets type J (Switzerland)
Rack of 8 electrical outlets (220 volts - 4000 watts - 16 amps -50hz)
Rack of 7 electrical outlets type G (United Kingdom)
Rack of 6 electrical outlets equipped with a thermal-magnetic circuit breaker
4-socket safety inverter for VIG190 or VIG290 only
(H 90 x W 163 x D 245 mm - 230 volts - 300 watts - 500 volts)

To further secure the storage ,Optional solutions, Accessories Recommended - FILTRATION OR VENTILATION BOXES

CONTAINMENT SUMP : Retention capacity (L)40 - 30 Min Fire Resistance.
Perforated cover plate 30 Min Fire Resistance.
Filtration box with activated carbon filter for organic and corrosive vapors 30 Min Fire Resistance.

Digital code lock, one per door, equipped with its security key
Ventilation box for a connection to the outside

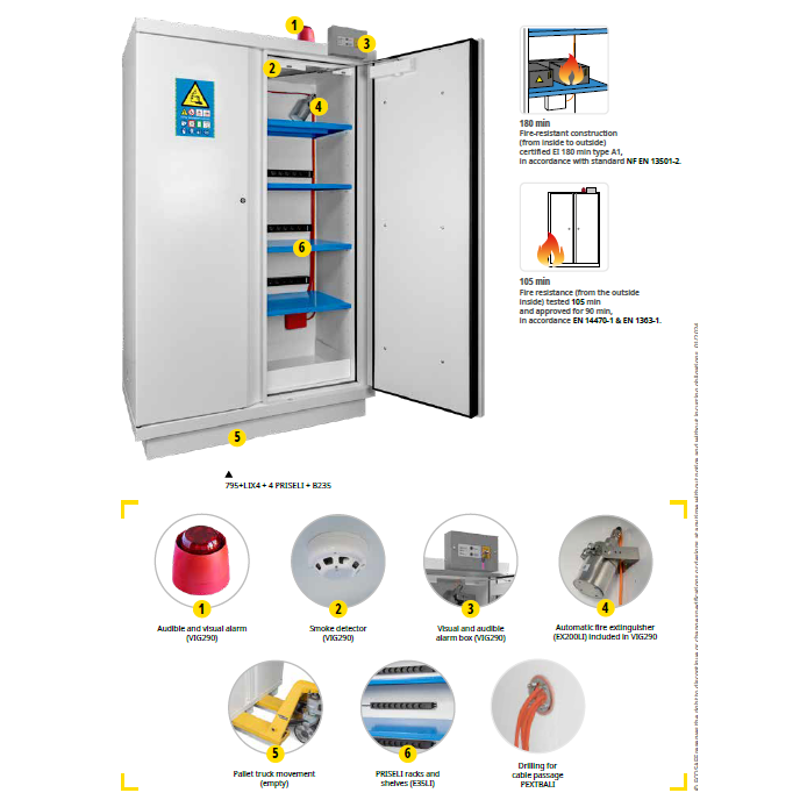

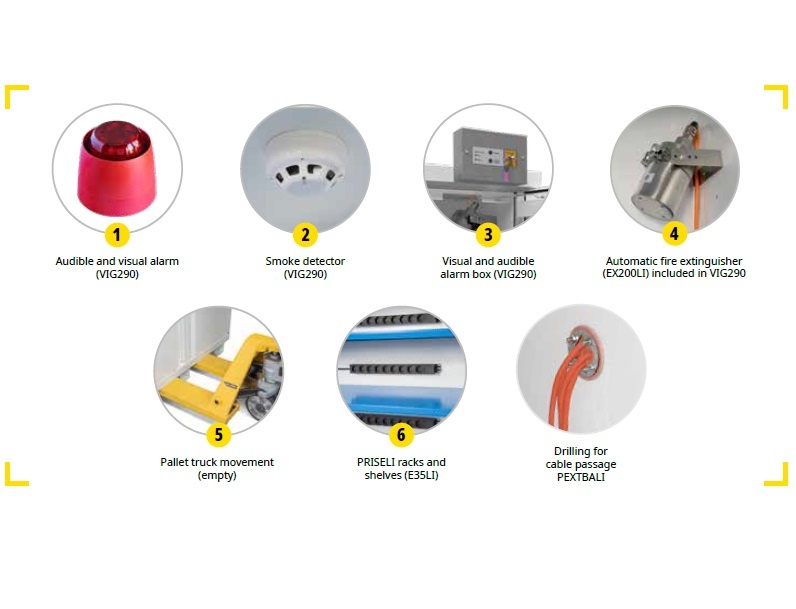

Visual & audible alarm + control box + smoke detector + fire extinguisher+Cable Duct

Connecting kit
Breakthrough for cable entry with fire-resistant cable

RECOMMANDATION

For Simple battery storage: Cabinet equipped with perforated shelves and a Containment sump.
For Storage and charging of batteries: Cabinet equipped with perforated shelves, a Containment sump and electrical outlet racks .
For Simple battery storage + advanced protection system: Cabinet equipped with perforated shelves with a Containment sump + optional advanced protection system (either a fire extinguisher or a security set including visual and sound alarm, control box, automatic smoke detector, fire extinguisher and cable passthrough)..
For Storage and charging of batteries + advanced protection system: Cabinet equipped with perforated shelves, a Containment sump and electrical outlet racks + optional advanced protection
system (either a fire extinguisher or a security set including visual and sound alarm, control box, automatic smoke detector, fire extinguisher and cable pass-through)

In the event of a fire, the cabinets must not be moved except by the fire brigade.
