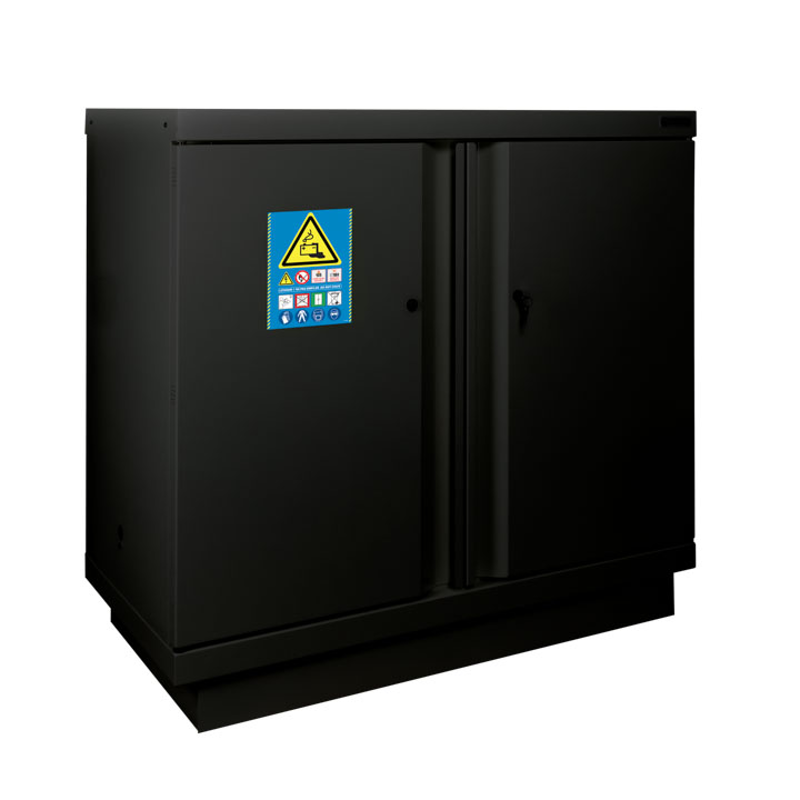

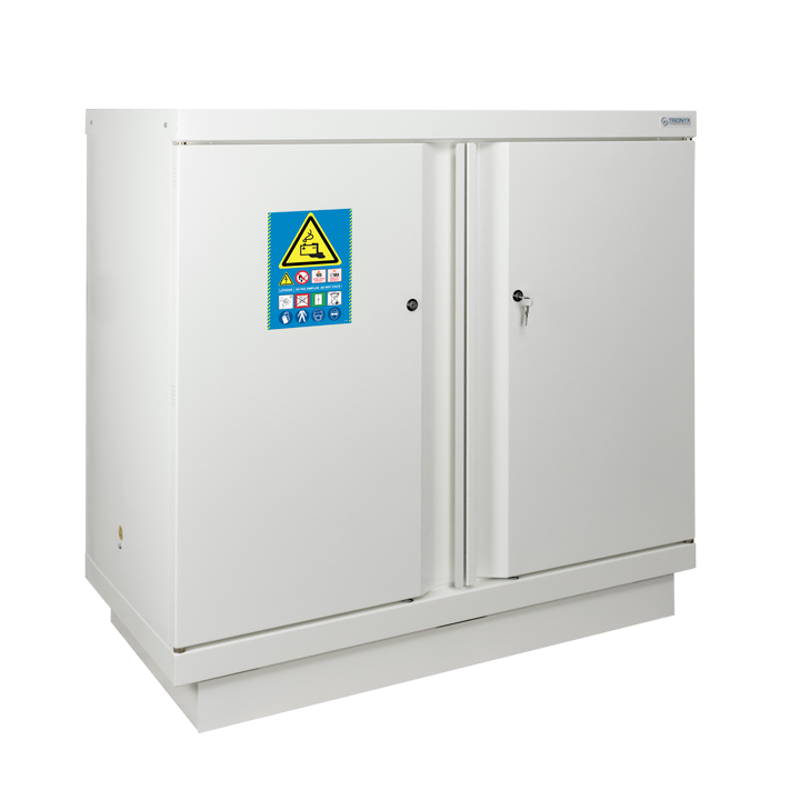

90 MINUTES-COUNTER-TOP CABINETS FOR LITHIUM BATTERIES-1100 x 1137 x 670

90 MINUTES-SECURITY CABINETS FOR LITHIUM BATTERIES-1100 x 1137 x 670

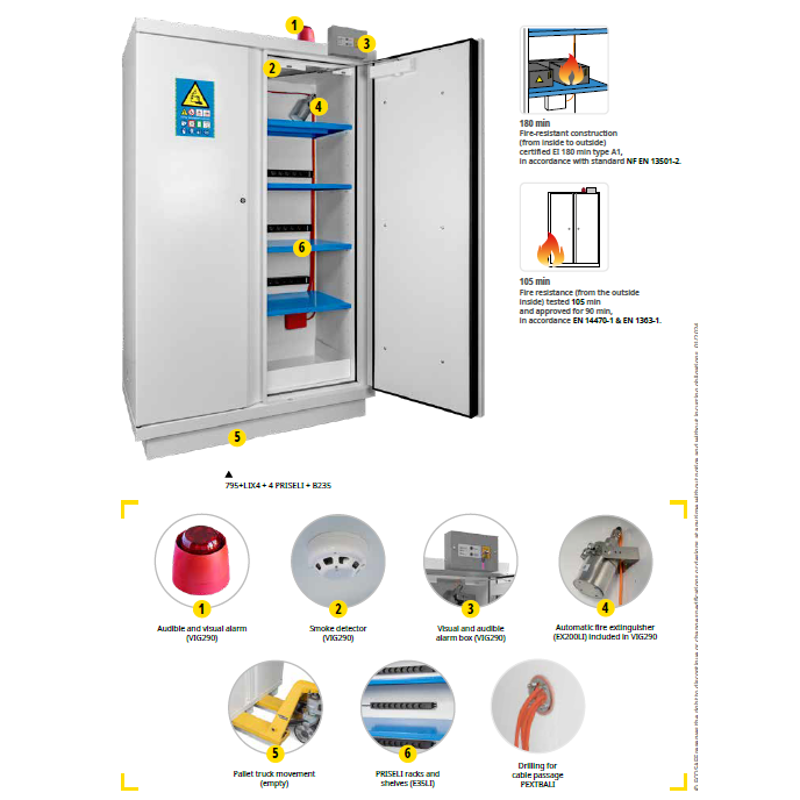

• Fire resistance 90 min, Tested and approved in accordance EN 14470-1 & EN 1363-1

• Inside to outside fire stop construction EI180

• Tested 105 min from outside to inside in accordance with standard EN 14470-1

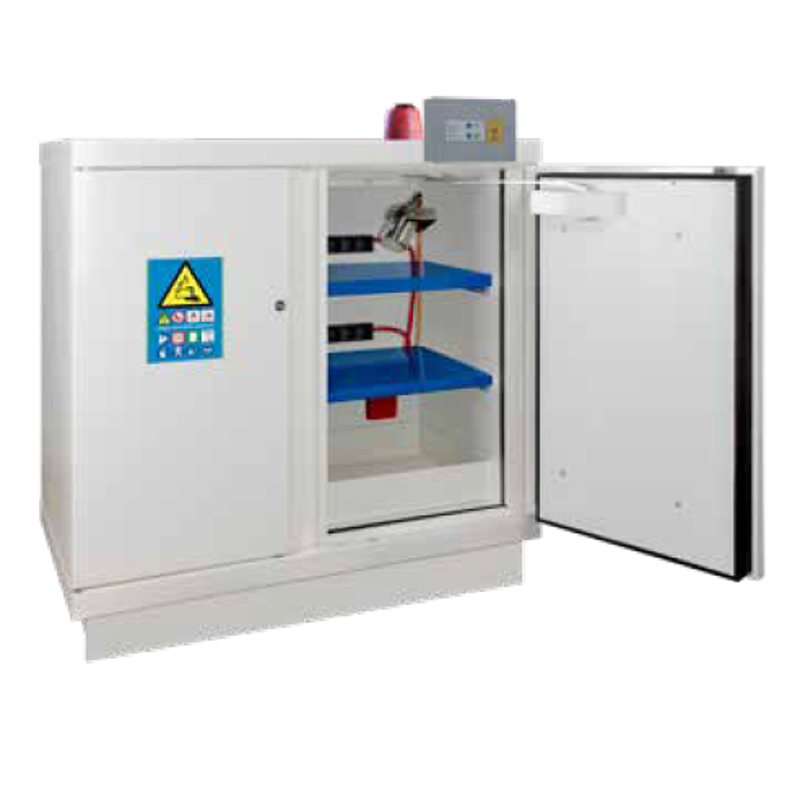

Pre-Equipped with 2 shelves + 1 x (visual and audible alarm, control box, automatic smoke detector, Fire Extinguisher and Cable Duct on top)

Enhance the safety of your lithium battery storage with our 90-minute fire-resistant security cabinets, proudly made in France. Designed for optimal protection, these cabinets are perfect for storing flammables and lithium batteries, reducing the risk of fire and explosion. With robust construction and compliance with EU regulations, ensure your storage meets the highest safety standards.

Key Features:

• Fire Resistance: Tested for 105 minutes, approved for 90 minutes as per EN 14470-1 & EN 1363-1.
• Origin: Made in France, ensuring premium quality and craftsmanship.
• Secure Storage: Features a reliable locking system and thermo-expanding door seals.
• Ventilation Ready: Includes holes for ventilation connections to enhance safety.
• Compliant: Meets EU Regulation 2023/1542 and standards EN 16121+A1, ISO 3864, ISO 7010.

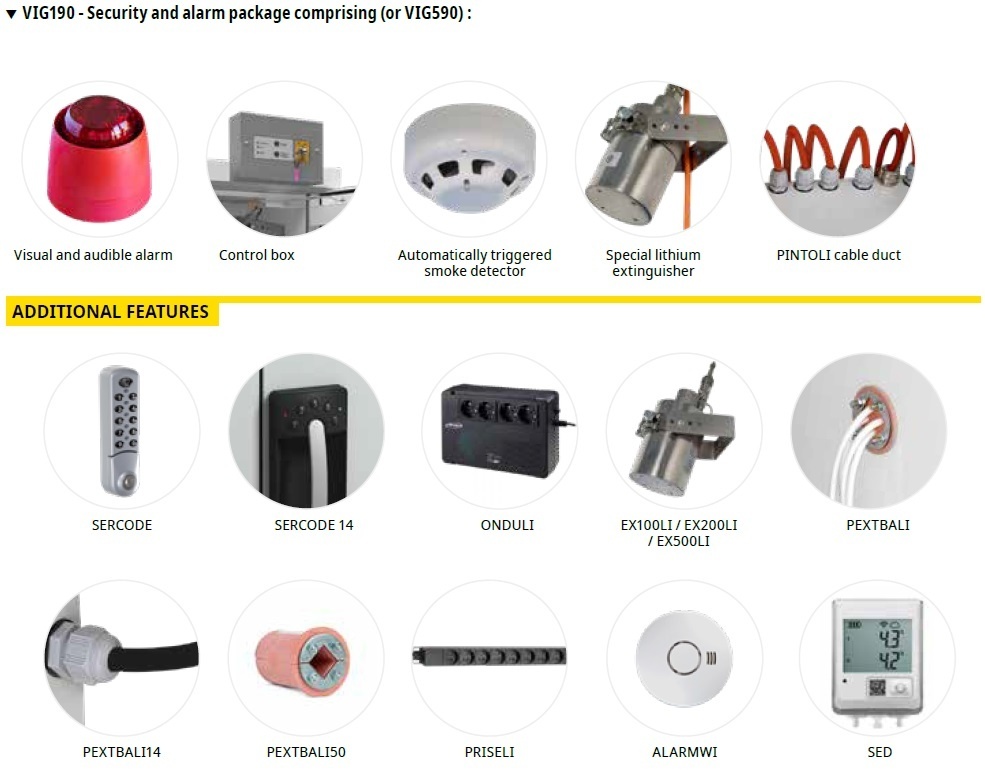

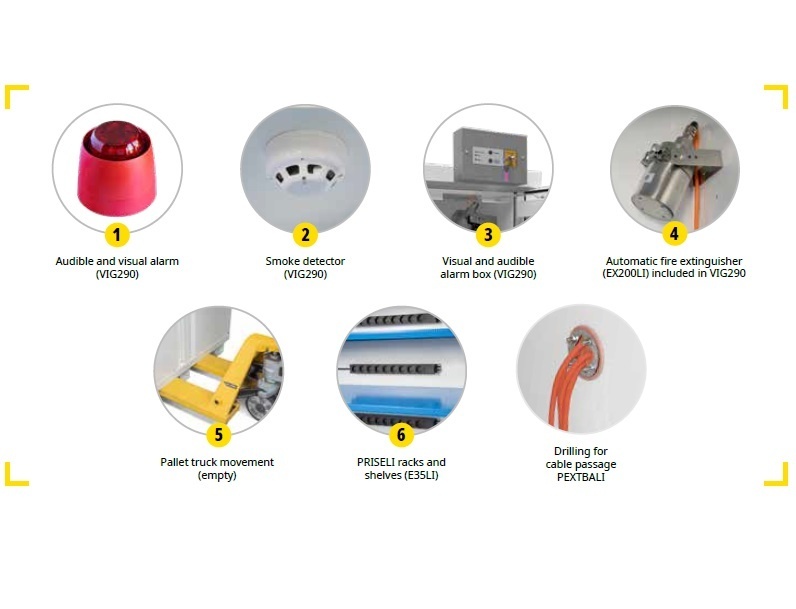

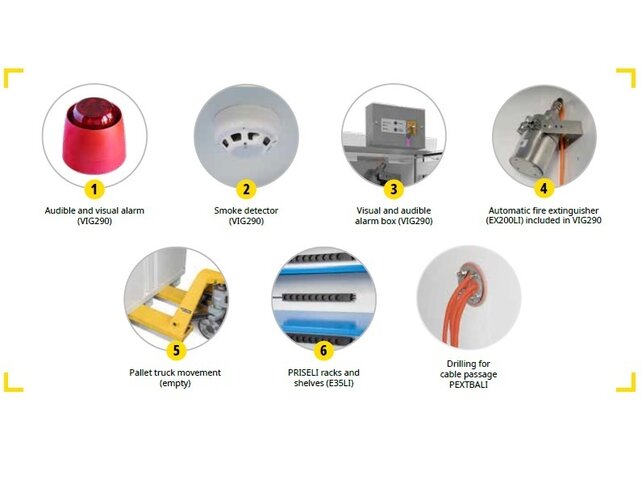

Included Accessories:

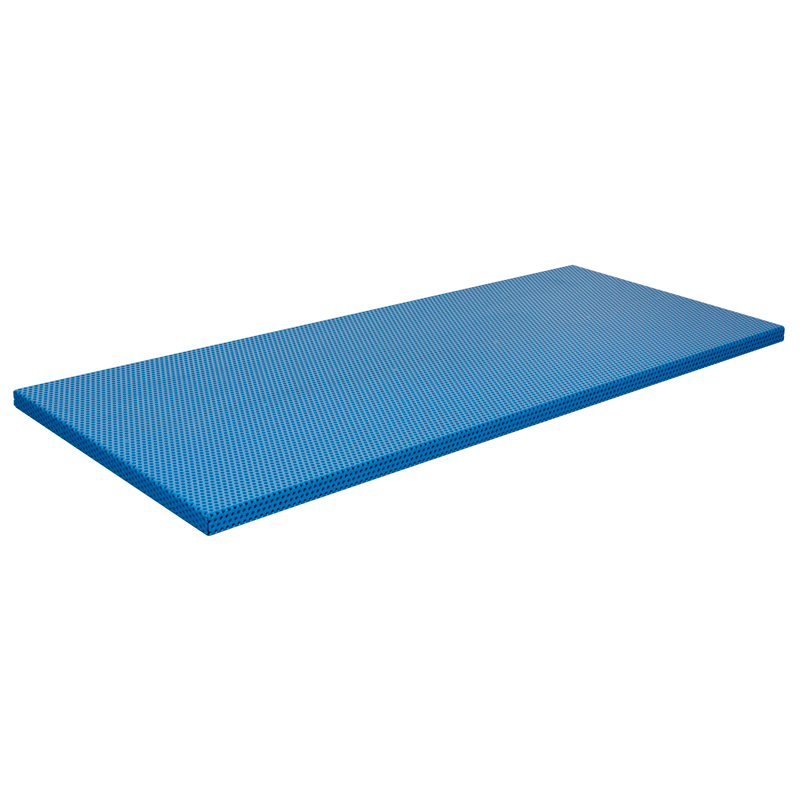

1. Perforated Shelves:

   • Four shelves designed for efficient air circulation and support up to 100 kg each.

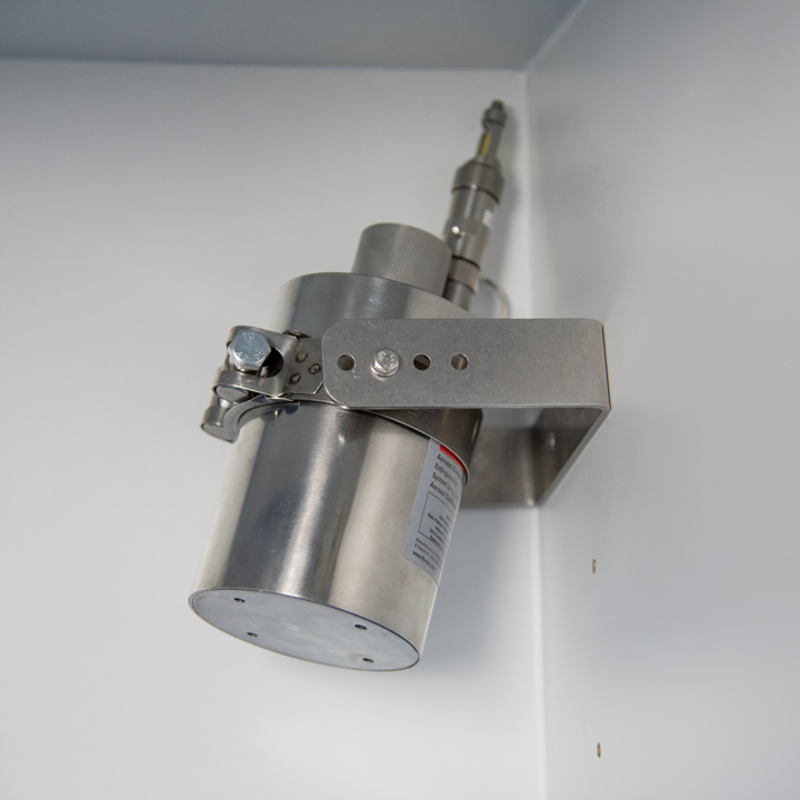

2. Fire Extinguisher with Automatic Trigger:

   • Activates at 79°C via thermal bulb, providing immediate fire response.

3. VIG290 Visual and Audible Alarm:

   • Alerts with visual and sound signals in case of smoke or fire detection.

4. Control Box:

   • Manages cabinet safety features, ensuring optimal protection.

5. Automatic Smoke Detector:

   • Early smoke detection triggers alarms and safety mechanisms.

6. Cable Duct:

   • Allows for additional ventilation unit installation, ensuring proper airflow.

Technical Specifications:

• Cabinet Material Sheet steel 12/10th and inner body built in melamine
• External dimensions H x W x D (mm) 1100 x 1137 x 670
• Internal dimensions H x W x D (mm) 820 x 1000 x 410
• Load capacity per shelf (kg) 51
• Nb of Doors 2
• Doors type Swing Doors
• Hinges Left and right
• Door closure Automatic Closure
• Perforated shelves 2
• Weight (Kg) 302

Optional Accessories:

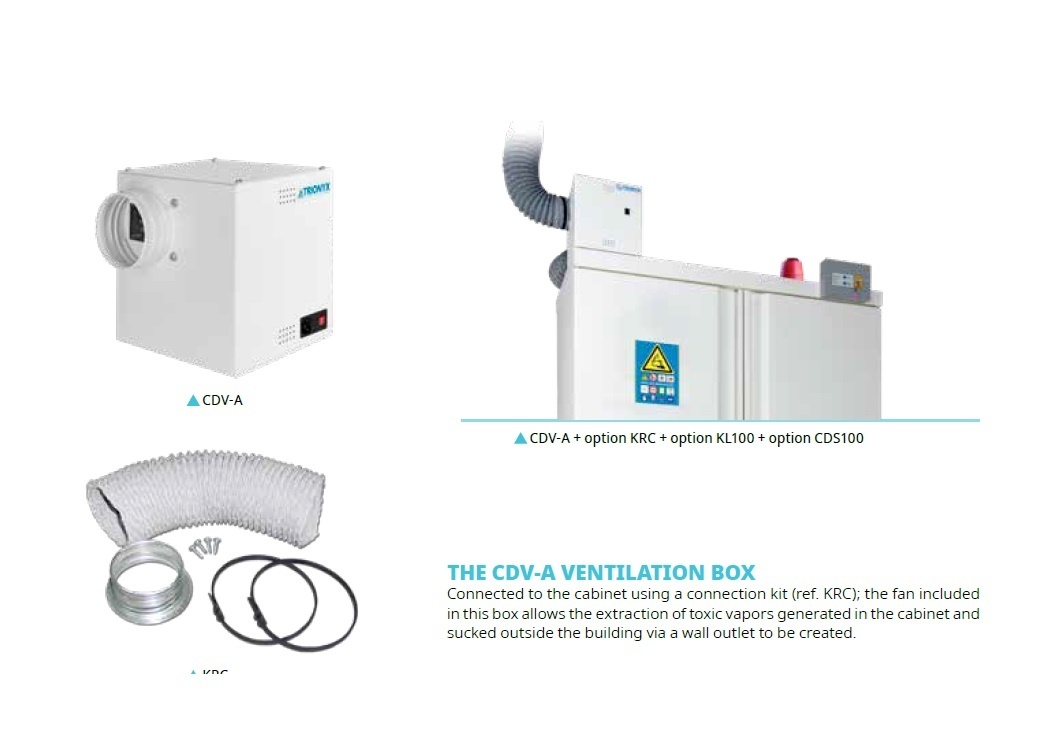

• Filtration/Ventilation Boxes: Enhance safety with activated carbon filters.
• Containment Sump: 40L retention capacity, 30 min fire resistance.
• Electrical Outlets: Rack of 9 outlets for charging solutions.

Recommendations:

• Simple Storage: Use with perforated shelves and a containment sump.
• Storage & Charging: Includes shelves, sump, and electrical outlet racks.
• Advanced Protection: Add fire extinguisher or security set with alarms and detectors.

Online Price Includes  2 shelves + 1 x (visual and audible alarm, control box, automatic smoke detector, Fire Extinguisher and Cable Duct on top Proven 105-minute Fire Resistant. Made in France.

Additional RECOMMANDATION

• For Simple battery storage: Cabinet equipped with perforated shelves and a Containment sump.
• For Storage and charging of batteries: Cabinet equipped with perforated shelves, a Containment sump and electrical outlet racks .
• For Simple battery storage + advanced protection system: Cabinet equipped with perforated shelves with  a Containment sump + optional advanced protection system (either a fire extinguisher or a security set including visual and sound alarm, control box, automatic smoke detector, fire extinguisher and cable passthrough)..
• For Storage and charging of batteries + advanced protection system: Cabinet equipped with perforated shelves, a Containment sump and electrical outlet racks + optional advanced protection
  system (either a fire extinguisher or a security set including visual and sound alarm, control box, automatic smoke detector, fire extinguisher and cable pass-through)

In the event of a fire, the cabinets must not be moved except by the fire brigade.

For inquiries, contact Salesbridges at [email protected] or call/WhatsApp +971543554679. Ensure the utmost safety and compliance with our high-quality security cabinets.
