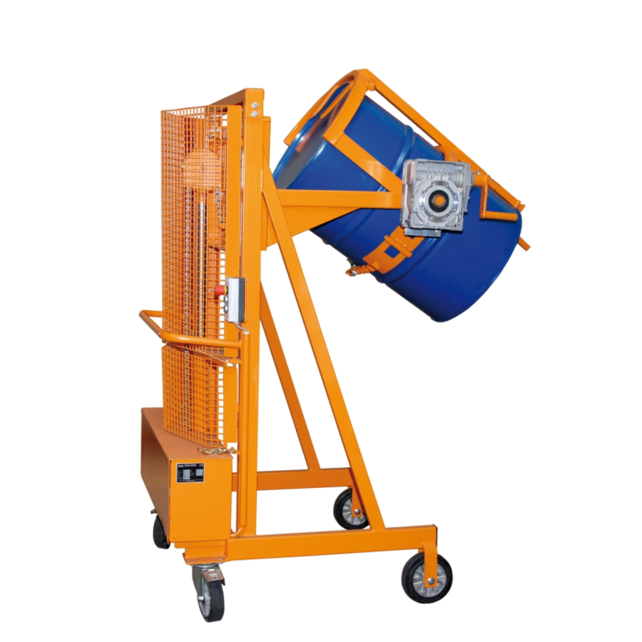

Electro-Hydraulic Drum Lift and Turn -110-220 Liter 350Kg

110 to 220 Liter Steel Drum Lift and Tilt  CE certified - Made in Germany

Controlled emptying of steel bunghole drums, steel drums with a lid, steel rolling hoop drums, plastic L-ring drums, plastic double L-ring drums and plastic drums with a lid ranging from 110 to 220 litres

• Range of rotation up to 270°

• 2 swivel castors Ø 175 mm and 2 fixed castors Ø 200 mm made of solid rubber,

  both swivel castors with brake.

• Safe pick-up guaranteed; drum is held by the tension band at the front and

  spindle at the top.

• Crank handle and self-braking gear box

• Battery 12V/88Ah and

• Charger 230 V

• Design Dimensions (l x w x h) in mm 1390 x 1120 x 1915

• Load capacity in kg 350

• Lift height in mm 110

• Emptying height in mm 1300

• Range of rotation in degree 270

• Weight paint. / galv. in kg 220 / 238

Electro-hydraulic construction fitted with maintenance-free battery 12V/88Ah and charger for 230 V mains connection

Types available: electro-hydraulic and manual hydraulic.
