Heavy Duty Clamp for Drum lifting 600Kg CE

Lightweight heavy duty SBDCTVKH clamp for upright drum lifting

Application

• Designed for lifting, handling and transporting of (oil) drums, where the drums have to stay in a upright position

• Single clamp application on empty or filled drums

• During lifting and transportation the centre of gravity of the drum is always below the lifting point

• Jaw openings available from: 0 to 25 mm

• Working load limit (WLL) 600kg

Features and benefits

• Lightweight design for easy handling in tight spaces between other drums

• Tough quality heavy duty welded shell body

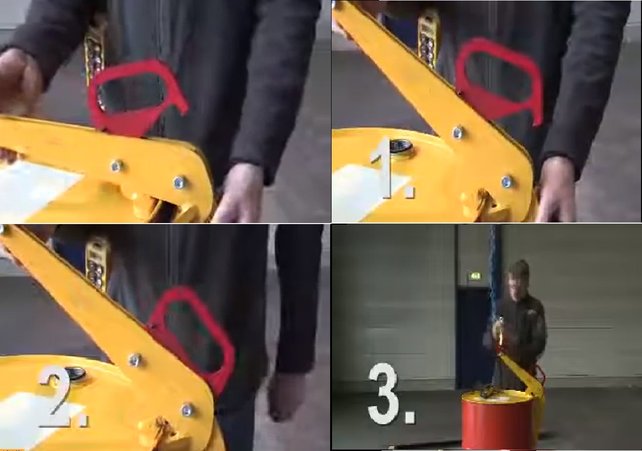

• Equipped with a manual safety lock mechanism so that the clamp is locked in the open position

• Maintenance-friendly, easy to exchange parts which are available upon request

Specifications:

Load Capacity (kg) :600

Weight (kg) :7

Jaw opening (mm) :0 - 25

Dimensions (referring to picture) (mm):

u (mm) : 765

s (mm) : 434

v (mm) : 305

t (mm) : 50

x (mm) : 100

y(mm) : 10

5 years warranty

The TVKH lifting clamps meet all standards and requirements like: European Norm NEN 13155, American Norm ASME B30.20-2010, Australian Norm 4991and European Machine Directive 2006/42/EC.
