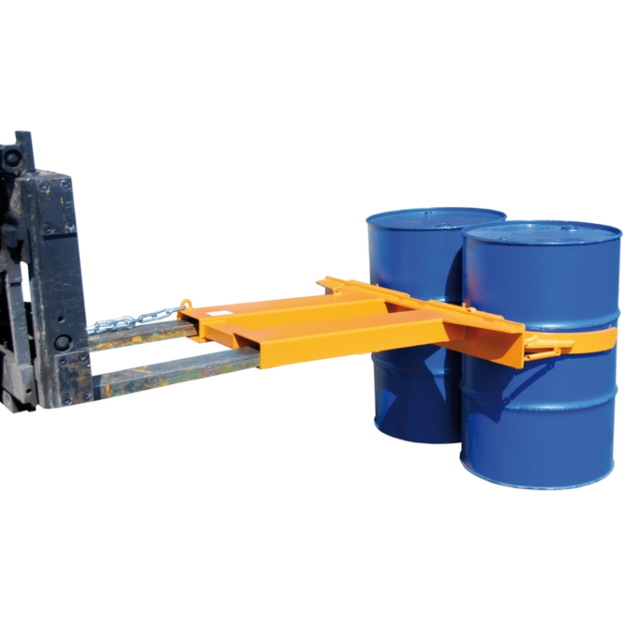

Double Barrel clamp for Steel Barrel, Forklift drum grabber

Double Barrel clamp for Steel Drum Suitable for use with Forklift

The safe way to pick up and transport 200 liter steel bunghole drums, steel drums with a lid and rolling hoop drums

2x Drum grabber for forklift

Barrel clamp dimensions:

Length: 1320 mm

Width: 1230 mm

Height:  165 mm

Barrel clamp weight: 99 kg

Load capacity: 1000 kg

Finish: powder coating

Color: Orange

Pocket sizes: (A) 250 x (B) 170 x(C) 75 mm (A: space between sleeves, B: width of the sleeve, C: Height of the sleeve)

Suitable for steel drums:

Diameter barrel: 550 mm

Height of barrel: 800 mm

Barrel volume: 200L

The barrel clamp is slid onto the forks of the forktruck. It is secured with 2 wing nuts. The forktruck drives with the drum clamp onto the drum and puts the clamps on top of the drum. The barrel clamp is lowered to the center of the barrel. When the barrel is lifted, it is automatically clamped between the drum clamps. When the drum has to be disconnected again, the drum is placed on the ground and the forklift truck drives backwards. The clamps release automatically. The barrel clamp is suitable for 2x 200L drums.

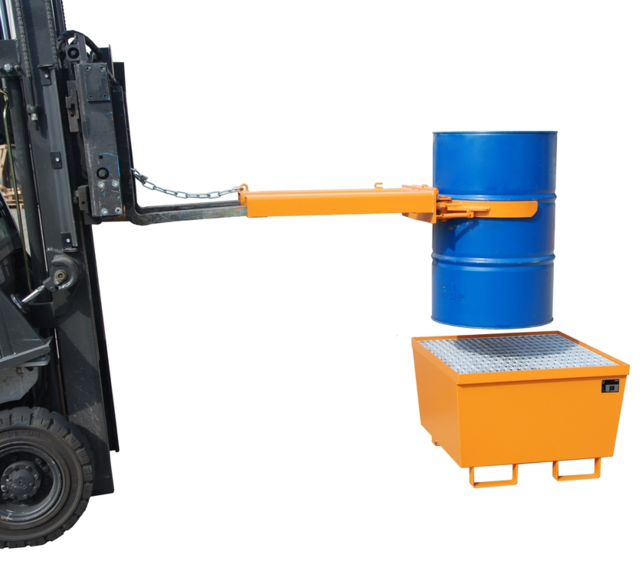

• available for 1 or 2 drums

• opens automatically when set down

• can be secured to prevent slipping

Made in EU
