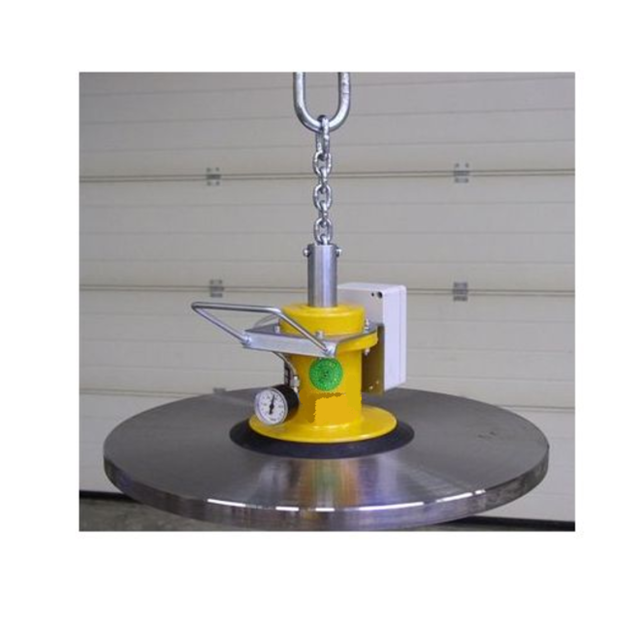

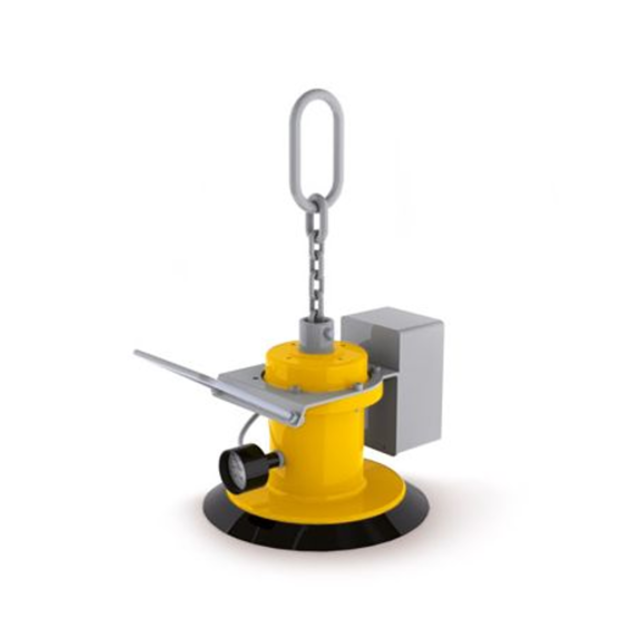

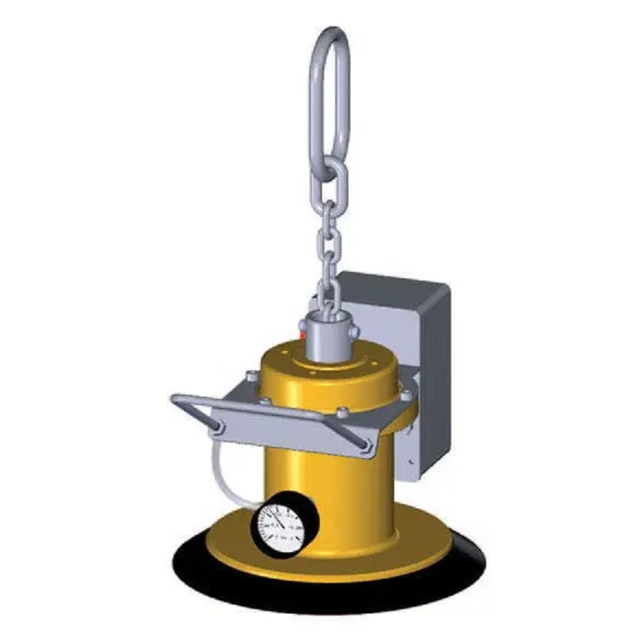

Plates Vacuum Lifting Device up to 75 Kg
Mechanical Vaccum Device For Horizontal Transport Aluminum, Stainless Steel Glass, Granite, Marble, Steel Plate.
Very Light Suction lifter Weight 5 Kg, Suction pads no./size : 1 / Ø 210 mm
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Vacuum Lifting Pads – Up to 75 kg
The Vacuum Lifting Pad is a compact and efficient lifting solution for the safe handling of smooth-surface loads up to 75 kg. Designed for horizontal lifting and easy crane operation, this unit works independently of an electrical power supply, making it a practical and reliable choice for both indoor and outdoor use.
With its automatic switching mechanism and plug-and-play operation, the lifter is immediately ready for use. It is especially suitable for the gentle transport of loads with sensitive surfaces, while the integrated optical and acoustic warning device provides enhanced operational safety.
Manufactured in accordance with DIN EN 13155, this lifting pad is built for dependable long-term use and is largely maintenance-free even under heavy-duty conditions.
Key Features
- Payload up to 75 kg
- Works independently of electrical power supply
- Automatic switching mechanism
- Plug and play – ready for immediate use
- Suitable for sensitive surfaces
- Optical and acoustic warning device for added safety
- Suitable for indoor and outdoor use
- Largely maintenance-free
- Easy operation, including use via crane control
- Manufactured according to DIN EN 13155
- 30-year spare parts availability
Specifications
| Specification | Value |
|---|---|
| Product | Vacuum Lifting Pad |
| Payload | 75 kg |
| Maximum load dimensions (reference sheet metal) | 1000 × 1000 mm |
| Minimum load dimension | Ø 210 mm |
| Minimum thickness for steel | 2 mm |
| Minimum load | 5 kg |
| Dead weight | 5 kg |
| Number of suction pads | 1 |
| Suction pad size | Ø 210 mm |
| Dimensions (L × W × Switching Height) | 210 × 210 × 440 mm |
| Maximum operating temperature | 50°C |
| Minimum operating temperature | -10°C |
| Standard | DIN EN 13155 |
| Corrosion resistance | Yes |
| Material | Steel |
| Direction of load attachment | Horizontal |
| Type of control | Mechanical |
| Surface of load | Smooth |
| Type of suction | Self suction |
Applications
Ideal for:
- Sheet handling
- Smooth surface material transport
- Workshop lifting tasks
- Production environments
- Crane-assisted lifting operations
- Indoor and outdoor material handling
Product Benefits
This vacuum lifting pad offers a safe and gentle way to transport loads without damaging sensitive surfaces. Its power-independent design, minimal maintenance requirements, and compact construction make it a practical solution for professional lifting applications.
Additional Information
- Standard and custom solutions are available for different surfaces
- Enhanced safety through optical and acoustic warning signals
- Long-term support with 30-year spare parts availability
