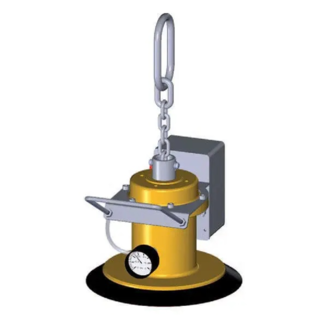

Plates Vacuum Lifting Device 1,100 - 1,250kg
Price on request
Mechanical Vaccum Device For Horizontal Transport Aluminum, Stainless Steel Glass, Granite, Marble, Steel Plate.
Very Light Suction lifter Weight 135Kg, Suction pads no./size : 1 / Ø 625 mm, Minimum load thickness from 2 mm
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Vacuum Lifting Pads up to 1100-1250 Kg
Independent from electric power supply, Automatic switching mechanism, Plug and play – immediately ready for use. Standard and individual solutions for different surfaces, Largely maintenance-free even under heavy duty conditions.
Gentle transport of loads with sensitive surfaces. Enhanced safety by additional optical and acoustic warning device (according to DIN EN 13155) DIN EN 13155 Easy operation e.g. by the crane control. Suitable for in- and outdoor use, 30-year warranty on spare parts availability.
Payload : 1100 kg
Max. load dimension (reference sheet metal) : 2000 x 2000 mm
Min. load dimension : Ø 625 mm
Min. thickness (for steel) : 2 mm
Dead weigth : 135 kg
Suction pads no./size : 1/ Ø 625 mm
Minimum load : 35 kg
Length x widht x switching height : 625 x 625 x 950 mm
Standard : DIN EN 13155
Corrosion resistance : Yes
Material : Steel
Direction of Load Attachment :Horizontal
Type of Control : Mechanical
Surface of Load : Smooth
Type of Suction : Self Suction
The vacuum is created by pulling the piston (chain) and therefore does not need an additional source. The manipulator is equipped with a vacuum manometer and optical-acoustic signaling , which alerts the operator in case of loss of pressure.
This vacuum lifter, more commonly called "mechanical suction cup", is very popular in the fields of metallurgy and aeronautics because it has the following advantages compared to traditional electric / pneumatic vacuum lifters:
Simplicity of implementation: No pneumatic or electric connection is to be expected, which is an additional cost in the case of the acquisition of an electric or pneumatic lifter. In addition, electrical or pneumatic consumption will also be an additional cost to be paid when using the device.
Ease of use: Each time the lifter is used, when it is set up at the end of the bridge / jib crane / etc. no connection is required. Just put the lifting ring in place.
Ease of maintenance: With the exception of the safety box powered by 2 LR6 batteries, the entire system is mechanical. The failure rate is lower than on electric suction cups and the maintenance costs are reduced.
