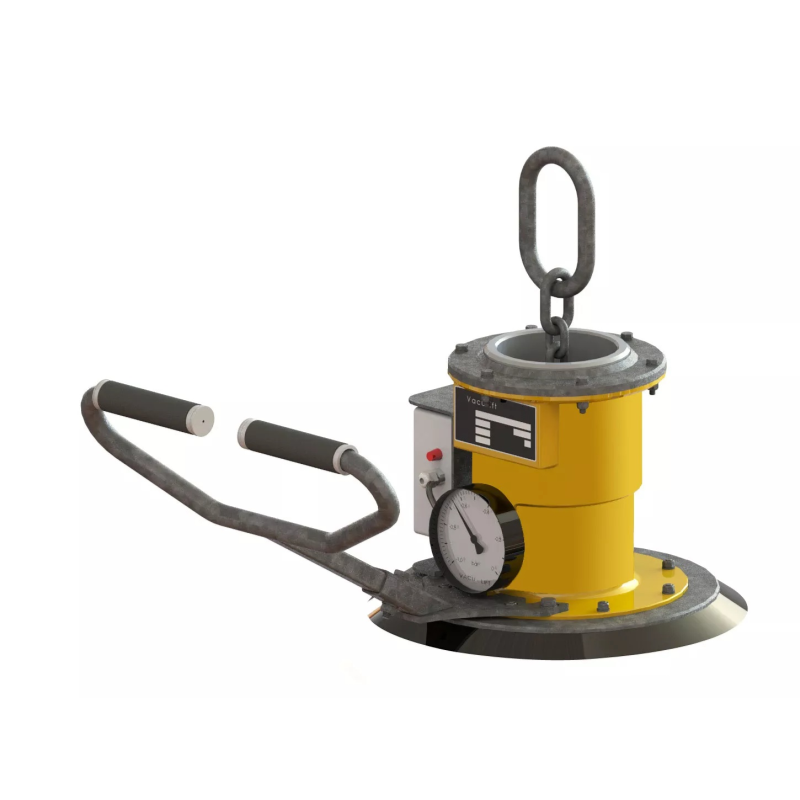

Plates Vacuum Lifting Device 270 - 300 Kg

Vacuum Lifting Pads up to 270 - 300  Kg

Independent from electric power supply, Automatic switching mechanism, Plug and play – immediately ready for use
Standard and individual solutions for different surfaces, Largely maintenance-free even under heavy duty conditions.
Gentle transport of loads with sensitive surfaces. Enhanced safety by additional optical and acoustic warning device
(according to DIN EN 13155) DIN EN 13155 Easy operation e.g. by the crane control. Suitable for in- and outdoor use, 30-year warranty on spare parts availability

Description:

• Payload : 270 kg

• Max. load dimension (reference sheet metal) : 2000 x 1000 mm

• Min. load dimension : Ø 350 mm

• Min. thickness (for steel) : 2 mm

• Dead weight : 22 kg

• Suction pads no./size : 1/ Ø 350 mm

• Minimum load : 10 kg

• Length x widht x switching height : 350 x 350 x 615 mm

• Min. operating temperature : -10 °C

• Standard : DIN EN 13155

• Corrosion resistance : Yes

• Material : Steel

• Direction of Load Attachment :Horizontal

• Type of Control : Mechanical

• Surface of Load : Smooth

• Type of Suction : Self Suction

The vacuum is created by pulling the piston (chain) and therefore does not need an additional source. The manipulator is equipped with a vacuum manometer and optical-acoustic signaling , which alerts the operator in case of loss of pressure.

• Simplicity of implementation: No pneumatic or electric connection is to be expected, which is an additional cost in the case of the acquisition of an electric or pneumatic lifter. In addition, electrical or pneumatic consumption will also be an additional cost to be paid when using the device.

• Ease of use: Each time the lifter is used, when it is set up at the end of the bridge / jib crane / etc. no connection is required. Just put the lifting ring in place.

• Ease of maintenance: With the exception of the safety box powered by 2 LR6 batteries, the entire system is mechanical. The failure rate is lower than on electric suction cups and the maintenance costs are reduced.
