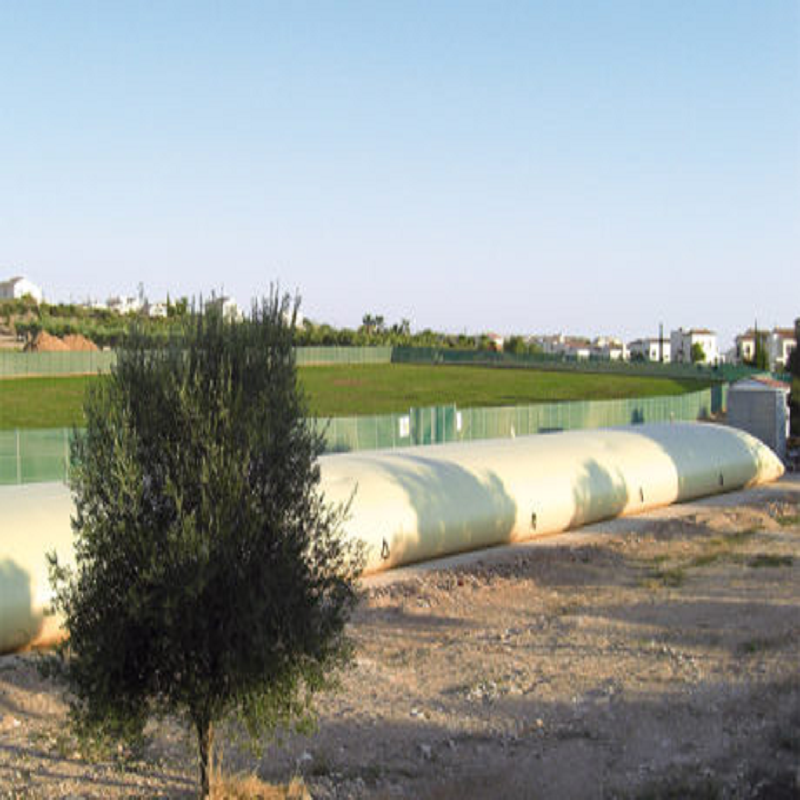

Temporary storage of drinking water-Flexible A tank- capacity up to 500 m³

Temporary storage of drinking water-Flexible A tank- capacity up to 500 m³

Suitable for the storage drinking water .We supply any size between 5 m³ and 500 m³. Can be installed on any stable, flat surface. Available with various connections and equipped with an air vent opening.(Small) drinking water tanks can be used multiple times at different locations. For example: at festivals, during desalination projects and in disaster areas.

Descriptions:

• Made from a polyester fabric with a high-grade plastic coating applied to both sides.

  • Produced in potable water material.( from a sand-colored or blue plastic fabric)

  • All High Frequency welded with flat welded corners with rigid PE strips.

• Type of fluids: drinking water

• Filling Height : up to 1.25m

• Supplied in a  rectangular shape

• Can be used on any flat surface. (recommend using a protective layer underneath the tank whenever you want to install it on a hardened surface)

•  Minimal impact on the surrounding landscape

• Has been awarded quality certificate and warranty certificate.

As a standard, the Tank is provided with :

•  Equipped with an air vent opening (Ventilation point on top).

• Available with various connections

•  English manual welded on the tank.

OPTIONS :

• A surface protection cloth

• Hand pump

• water hoses

• Valves or tabs in almost any size.

• Multiple valves or tabs.

•  Repair set.

• Standard sizes:

Specifications:

• Closed storage system, square or rectangular with a V-shaped bottom.

• Needs to be installed in a groundwork, which is partly excavated below ground level.

• Made of a two sides coated polyester fabric, membrane PES-PVC RM2

  ( 1100 gr/m², 0,9 mm., 4000 N/50 mm.) material certified by KIWA (K 5111).

• All seams are High Frequency welded.

• Production plant certified by KIWA (K 5114).

• Employees  are VCA certified

• Bagtank certified by KIWA (K 2448)

•  Ventilation tubes (4-8) on top.

• Central inspection opening Ø 155 cm.

• Pipe set: pipes PVC Ø 200 mm. at the end reduced till Ø 160 mm, safety-valve Ø 200 mm,

  valve block with spill drum. Standard connection 6” Perrot KKV.

• Incl. drawing for excavation works.

• Incl. protection material (PE woven fabric 5 m. wide) to cover the dike slope.

3 years*; when used accordingly to the manual.

(quotation upon request)

KIWA CERTIFICATES

Made in the EU
