Storage of non-aggressive liquids-LTank

Storage of non-aggressive liquids-L-Tank- capacity up to 2,000 m³

Solution to store liquids rapidly or temporarily all non-aggressive liquids, Available up to 2,000 m³. Can be installed on any stable, flat surface. Reliable in all wind and weather condition.

Available with various connections

Equipped with an air vent opening.

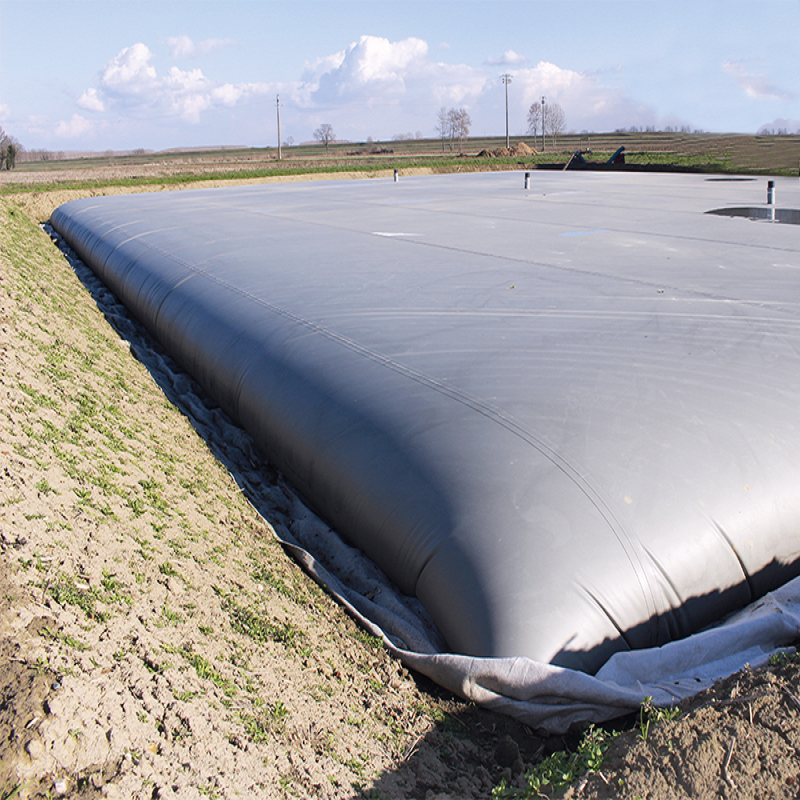

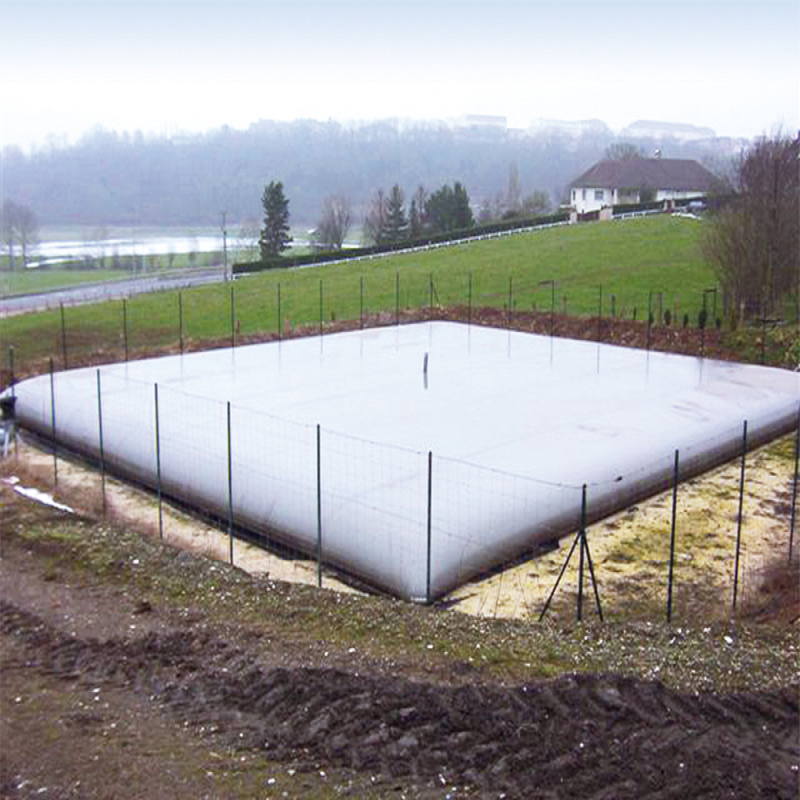

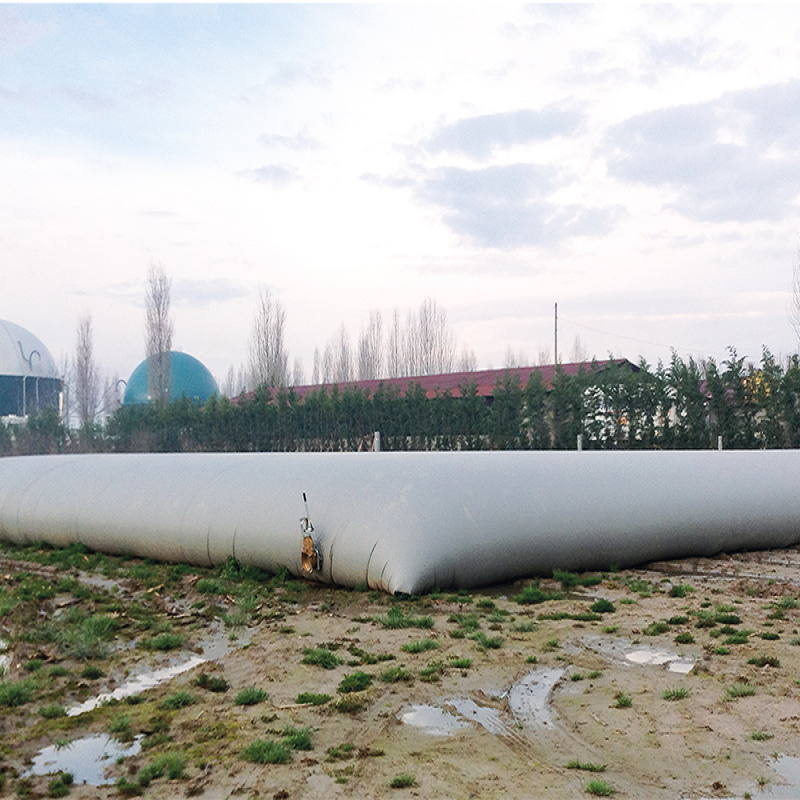

This L-tank is very easy to install at any stable and levelled surface. On a hard surface a protection layer is advisable. Due to its low shape, the L-tank fits easily into the landscape.

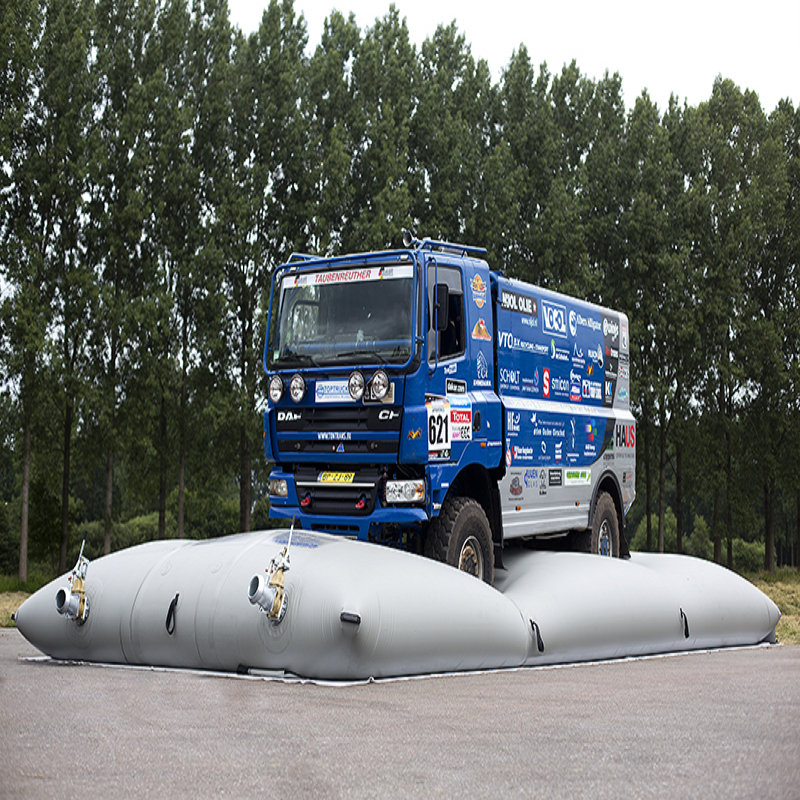

the L-tank is produced from a polyester fabric which is coated on both sides with PVC. The reinforced material is especially suited to resist all mechanical forces which may occur during use of the L-tank.

Descriptions:

• Made from a polyester fabric with a high-grade plastic coating applied to both sides.

• All High Frequency welded with flat welded corners with rigid PE strips.

• De-aeration point on top

• Type of fluids: non-aggressive, particularly homogenous liquids

• Filling Height : up to 1.25m

• Supplied in a  rectangular shape

• Can be used on any flat surface. (recommend using a protective layer underneath the L-tank whenever you want to install it on a hardened surface)

•  Minimal impact on the surrounding landscape

• Has been awarded quality certificate and warranty certificate.

As a standard, the L-Tank is provided with :

•  Equipped with an air vent opening (Ventilation point on top).

• Available with various connections

•  English manual welded on the tank.

OPTIONS :

• Protection felt.

• Valves or tabs in almost any size.

• Multiple valves or tabs.

•  Repair set.

• Produced in potable water material.

• Standard sizes:

Specifications:

• Closed storage system, square or rectangular with a V-shaped bottom.

• Needs to be installed in a groundwork, which is partly excavated below ground level.

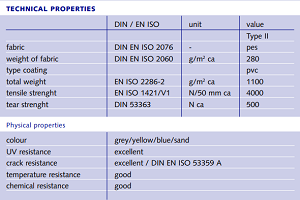

• Made of a two sides coated polyester fabric, membrane PES-PVC RM2

  ( 1100 gr/m², 0,9 mm., 4000 N/50 mm.) material certified by KIWA (K 5111).

• All seams are High Frequency welded.

• Production plant certified by KIWA (K 5114).

• Employees  are VCA certified

• Bagtank certified by KIWA (K 2448)

•  Ventilation tubes (4-8) on top.

• Central inspection opening Ø 155 cm.

• Pipe set: pipes PVC Ø 200 mm. at the end reduced till Ø 160 mm, safety-valve Ø 200 mm,

  valve block with spill drum. Standard connection 6” Perrot KKV.

• Incl. drawing for excavation works.

• Incl. protection material (PE woven fabric 5 m. wide) to cover the dike slope.

A long lifetime is guaranteed thanks to maximum stabilization against the effects of ultraviolet radiation.
To store drinking water a special material is available.
The L-tank can be provided with almost every kind of connection or valve.

3 years*; when used accordingly to the manual.

(quotation upon request)

KIWA CERTIFICATES

Made in the EU
