17 Gallon Flammable Safety Cabinet 61 x 109 x 46 cm 1 Shelf, 2 Doors
Sure-Grip® EX Piggyback Safety Cabinets. Protect workers, reduce fire risks, and improve productivity by storing flammable fuels and chemicals in code-compliant safety cabinets. Storage capacity of flammable liquids by 17 gal (64 l).
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Flammable Safety Cabinet – 17 Gallon (64 L), 2 Doors, Self-Close, 24” Height (Yellow)
Compact Fire-Safe Storage for Limited Spaces
The 17 Gallon Flammable Safety Cabinet is a compact, high-performance solution for safe storage of flammable liquids where floor space is limited. Designed to meet OSHA, NFPA 30, NFPA 1, and IFC standards, it ensures maximum safety and compliance in industrial and laboratory environments.
Advanced Fire Protection with Self-Closing Doors
Constructed from double-wall 18-gauge steel with a 38 mm insulating air gap, this cabinet provides excellent fire resistance. The self-closing doors with fusible link automatically shut during fire conditions, ensuring enhanced protection.
Key Features
- Compact storage capacity: 17 gallons (64 L)
- Self-closing double doors for fire safety
- FM approved and fire-tested design
- Double-wall steel construction with insulation
- Leakproof sump for spill containment
- High-visibility reflective warning labels
Technical Specifications
| Specification | Value |
|---|---|
| Capacity | 17 Gallons (64 L) |
| Material | 18-gauge double-wall steel |
| Insulation Gap | 38 mm air space |
| Weight | 56 kg |
| Color | Yellow |
| Door Type | Self-close |
| Number of Doors | 2 |
| Shelves | 1 (adjustable) |

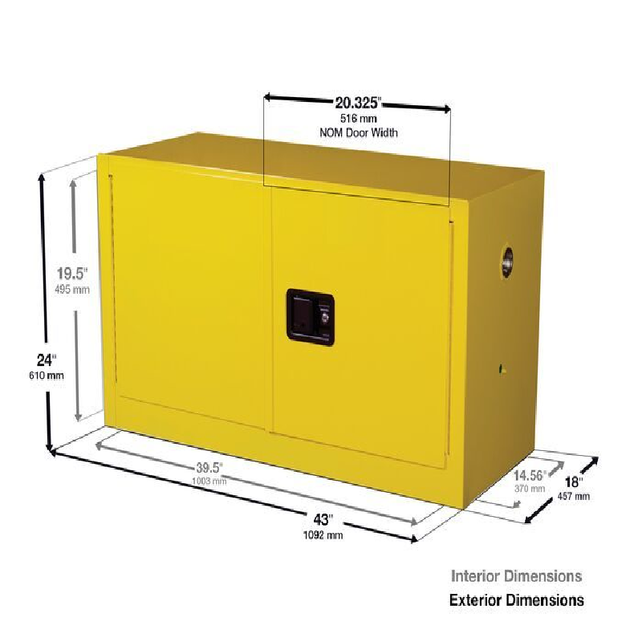

Dimensions
| Type | Size |
|---|---|
| External (H × W × D) | 610 × 1092 × 457 mm |
| Internal (H × W × D) | 495 × 1003 × 370 mm |
Construction Details
- Double-wall welded steel for fire resistance

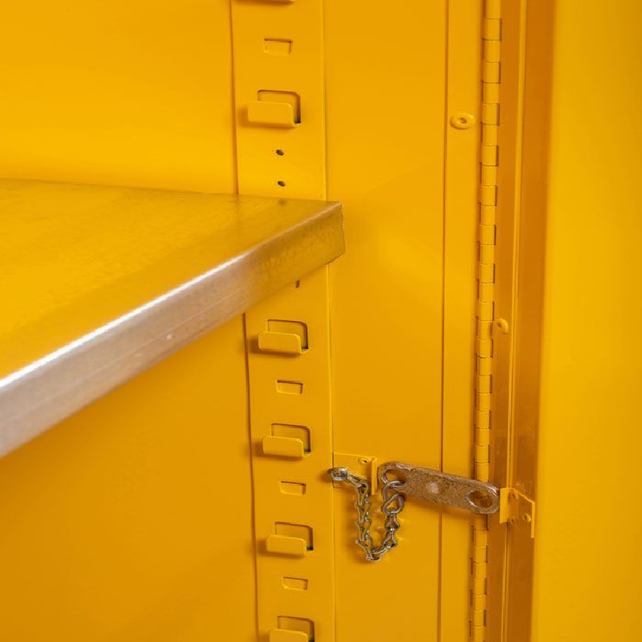

- Self-latching 3-point stainless steel locking system
- Fusible link mechanism activates at 74°C (165°F)

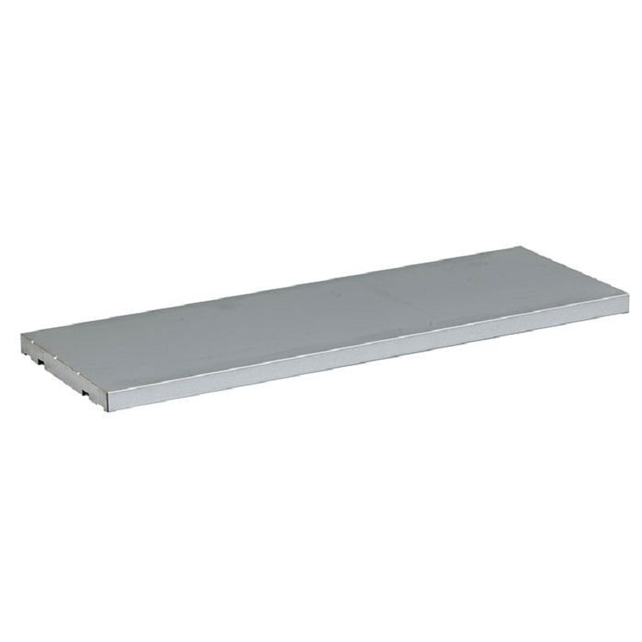

- Galvanized steel shelf directs spills to sump
- 51 mm leakproof bottom sump
- Dual vents with flame arresters
- Adjustable leveling feet and grounding connector
- Cylinder lock with key set
Compliance & Certification
- FM Approved
- OSHA compliant
- NFPA 30 compliant
- NFPA 1 compliant
- International Fire Code compliant
- 10-year manufacturer warranty
Standard Delivery
- Flammable safety cabinet (2 doors)
- 1 adjustable shelf
- Lock with keys
- Ready for installation
Optional Accessories
- Additional shelves
- Document storage boxes
- Vapor trap filters (SB29916 – pack of 2)
- Polyethylene tray liners (SB29962)
Applications
- Laboratories and chemical storage rooms
- Industrial facilities and workshops
- Warehouses with hazardous materials
- Maintenance and service areas
Advantages
- Compact design saves floor space
- Automatic self-closing for fire safety
- High durability and chemical resistance
- Compliant with international safety standards
- Easy to install and maintain
Contact Us for a Quote or Consultation
- Email: [email protected]
- Call: +971 44058154
- WhatsApp: +971543554679
Ensure safe and compliant storage of flammable liquids with the SALESBRIDGES safety cabinet. Request your quote today.
| Brand | Salesbridges |
| Article code | SB8917001 |
| SKU | SB8917001 |
| EAN | 9509821498696 |
