Gravity Box Roller Conveyor Set 2400x500 mm (Steel Rollers) incl. Adjustable Support Leg 651–959 mm
Overview

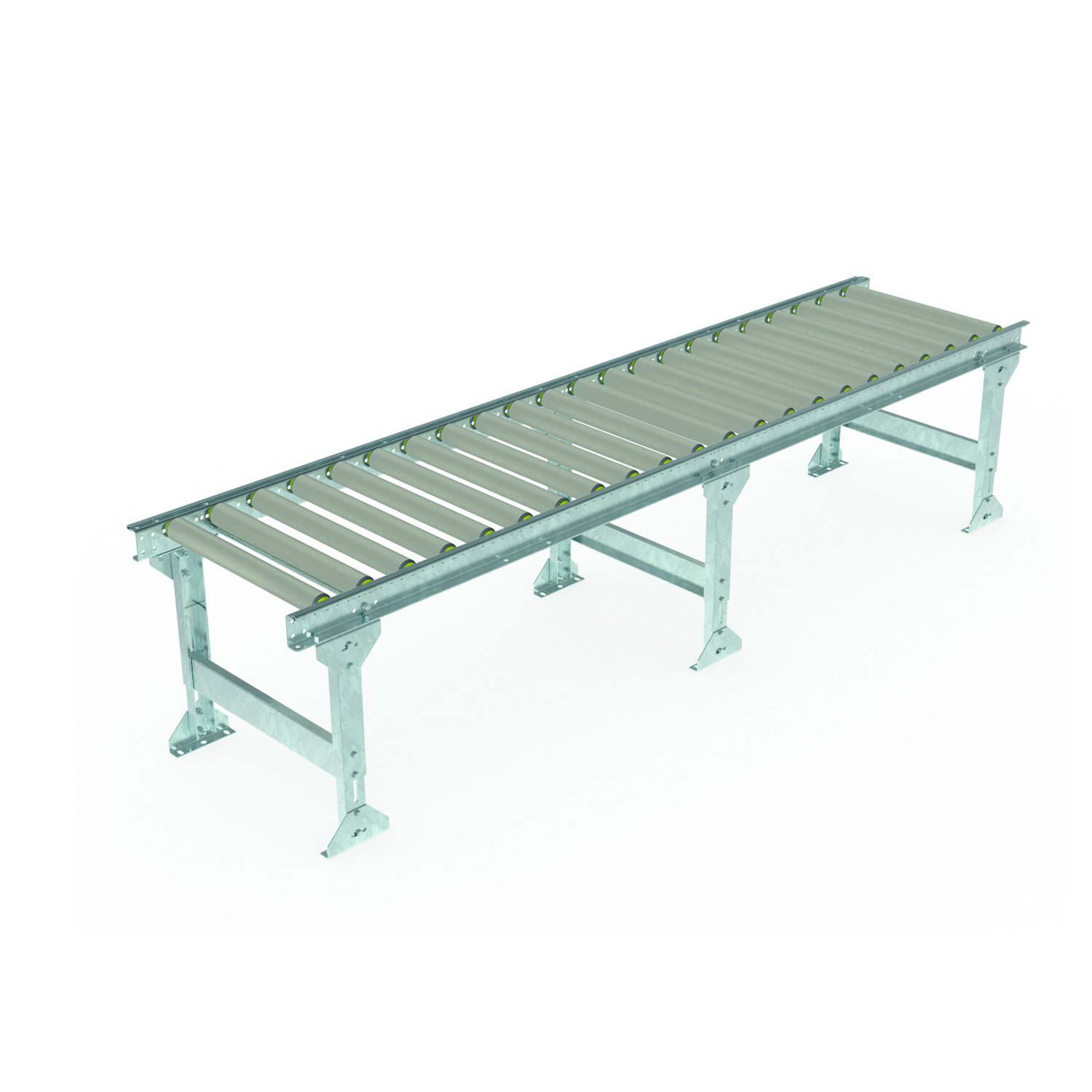

This complete gravity box roller conveyor set combines a non-powered roller conveyor section 2400x500 mm with steel rollers and an adjustable support leg (651–959 mm). Ideal for moving cartons, trays, parcels and lightweight unit loads using gravity flow.
Key benefits
- Steel rollers (Ø50 mm): suited for heavier-duty use and higher loads
- Adjustable leg (651–959 mm): set incline and working height quickly
- 105 mm roller pitch (c/c): stable support for cartons and totes
- Spring-loaded axle (8x11 mm): reliable roller mounting and easy service
- Caster-ready option: leg connection plate can be replaced by SLG999-AC (for caster with 105x85 mm top plate)
Typical applications
- Warehouses, DCs and fulfilment operations
- Picking/packing gravity lanes
- Buffer and transfer lines for cartons and parcels
- Internal transport without powered conveying
What’s included

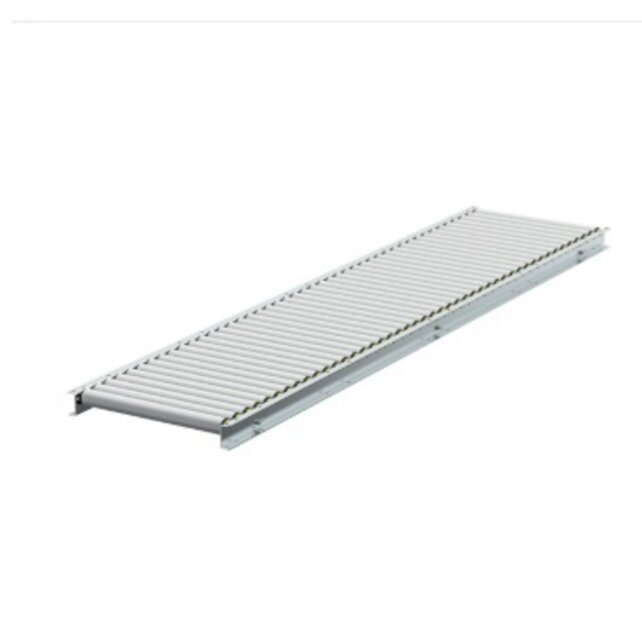

- 1× Gravity box conveyor 2400x500 mm, steel rollers, 105 mm pitch (c/c) (Art. S02450050ZF-23)

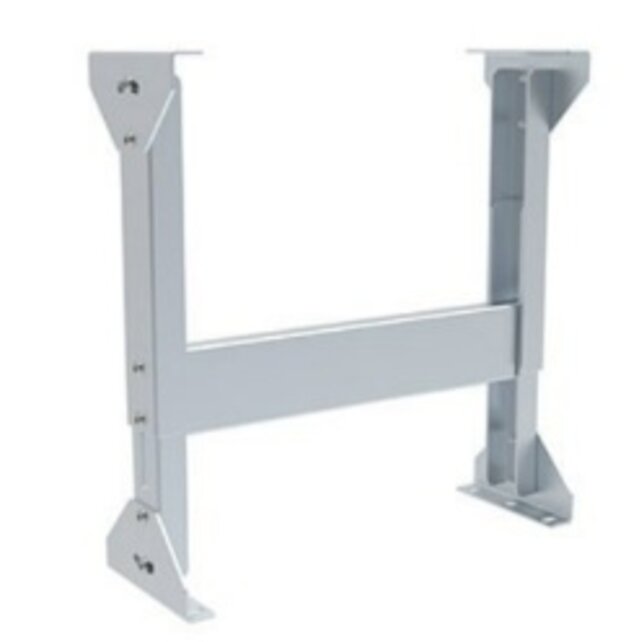

- 1× Adjustable support leg 651–959 mm (Art. S00005062)
- Optional: SLG999-AC connection plate for caster mounting (105x85 mm top plate)
Technical specifications
Note: values may be nominal/rounded; refer to drawings for exact dimensions. Images may differ from the actual product.
| Specification | Conveyor (2400 mm, steel rollers) | Support Leg (adjustable) | Notes |
|---|---|---|---|
| Article number | S02450050ZF-23 | S00005062 | Supplied as one set |
| Length | 2400 mm | — | Conveyor section |
| Roller width | 500 mm | 500 mm | Matching width |
| Total width | 560 mm | 560 mm | Overall width |
| Roller diameter | 50 mm | — | Steel roller |
| Total height (conveyor) | 75 mm | — | Section height |
| Leg height range | — | 651–959 mm | For incline/working height |
| Roller pitch (c/c) | 105 mm | — | Center-to-center distance |
| Tread material | Steel | — | |
| Axle design | Spring-loaded axle 8x11 mm | — | |
| Heat resistant | No | No | |
| Load capacity (with legs c/c 1.2 m) | 250 kg | — | Depends on layout/conditions |
| Load capacity (with legs c/c 2.4 m) | 125 kg | — | Depends on layout/conditions |
| Product weight | 39 kg | 6.53 kg | Total set approx. 45.53 kg |
Other options and sizes are available upon request; standard roller/conveyor widths are 300 mm, 400 mm, 500 mm and 600 mm—contact our sales team for more information or send your project details to [email protected] to receive a technical and commercial offer.
Delivery & support
- Shipping and project deliveries across the GCC
- Help with configuration (extra sections, extra legs, transitions) on request
RFQ / Request a quote
Email: [email protected]
Tel: +971 44058154
WhatsApp: +971543554679
| Brand | Salesbridges |
| Article code | SB2450050VF23KIT |
| SKU | SB2450050VF23KIT |
| EAN | 9509289244293 |
