Gravity Box Roller Conveyor Set 1200x500 mm (Plastic Rollers) incl. Adjustable Support Leg 651–959 mm
Complete gravity conveyor set: 1200x500 mm section with plastic rollers (105 mm pitch) plus adjustable support leg 651–959 mm. For cartons, trays and parcels. Delivery across the GCC.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Gravity Box Roller Conveyor Set 1200x500 mm (Plastic Rollers) incl. Adjustable Support Leg 651–959 mm
Overview

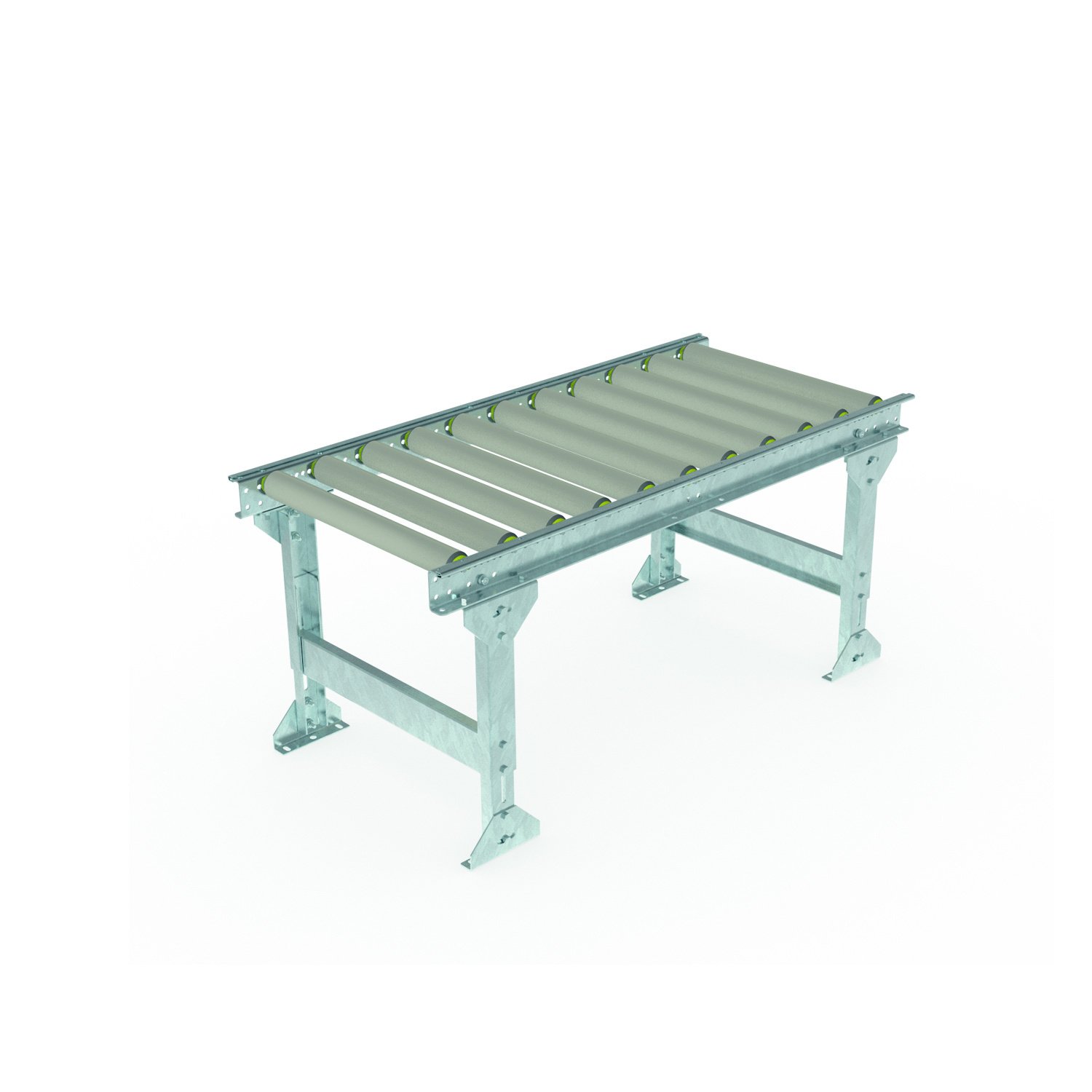

This complete gravity box roller conveyor set combines one conveyor section with an adjustable support leg to create the correct incline. Ideal for moving cartons, trays, and parcels in warehouses, production, and fulfilment.
Key benefits
- One ready-to-buy set: conveyor + leg support as a single webshop product
- Height adjustable (651–959 mm): set the incline for smooth gravity flow
- Plastic rollers: suited for lightweight loads and quieter conveying
- Robust design: side profiles with spring-loaded roller axle
- Caster-ready option: lower connection plate can be replaced by SLG999-AC (for a caster with 105x85 top plate)
Typical applications
- Carton and parcel handling lanes
- Picking/packing lines
- Gravity flow buffers
- Internal transport for lightweight unit loads
What’s included

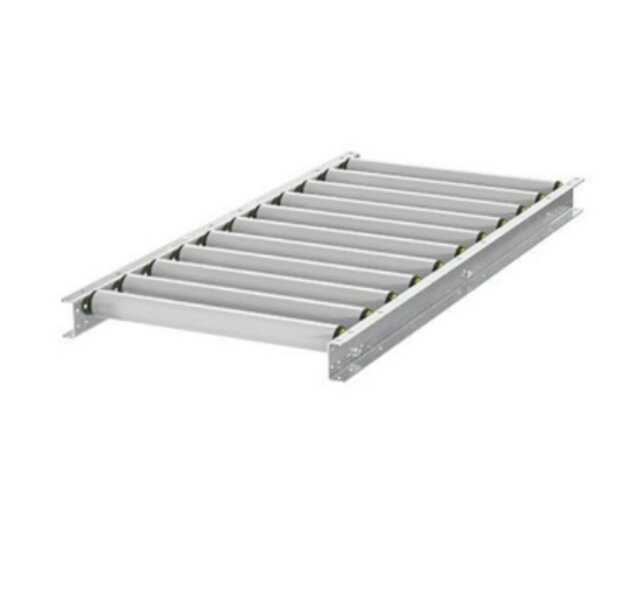

- 1× Gravity box conveyor 1200x500 mm, plastic rollers, 105 mm pitch (c/c)

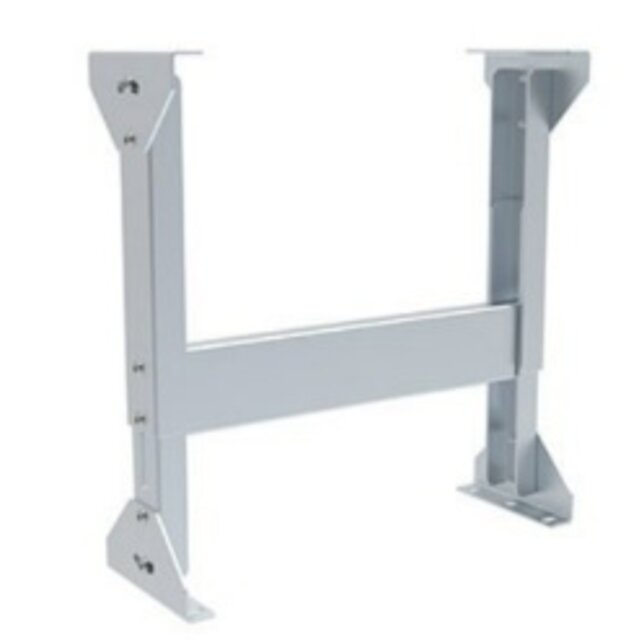

- 1× Adjustable leg support height 651–959 mm
- Optional: SLG999-AC connection plate for caster mounting (105x85 mm top plate)
Technical specifications
Note: values may be nominal/rounded; refer to drawings for exact dimensions. Images may differ from the actual product.
| Specification | Conveyor (Gravity Box Conveyor) | Support Leg (Leg Support) | Notes |
|---|---|---|---|
| Article number | S01250050VF-12 | S00005062 | Supplied as one set |
| Length | 1200 mm | — | Conveyor section length |
| Roller width | 500 mm | 500 mm | Matching conveyor width |
| Total width | 560 mm | 560 mm | Overall width |
| Roller diameter | 50 mm | — | Plastic roller |
| Total height (conveyor) | 75 mm | — | Conveyor section height |
| Leg height range | — | 651–959 mm | For incline/working height |
| Roller pitch (c/c) | 105 mm | — | Center-to-center distance |
| Tread material | Plastic | — | |
| Axle design | Spring-loaded axle Ø8x11 mm | — | |
| Heat resistant | No | No | |
| Load capacity (with legs c/c 1.2 m) | 160 kg | — | Depends on layout/conditions |
| Product weight | 13.05 kg | 6.53 kg | Total set approx. 19.58 kg |
Other options and sizes are available upon request; standard roller/conveyor widths are 300 mm, 400 mm, 500 mm and 600 mm—contact our sales team for more information or send your project details to [email protected] to receive a technical and commercial offer.
Delivery & support
- Shipping and project deliveries across the GCC
- Support for sizing, adding extra sections/legs, and integration into existing conveyor lines
RFQ / Quotation
Contact us for price and lead time: [email protected] | +971 44058154
