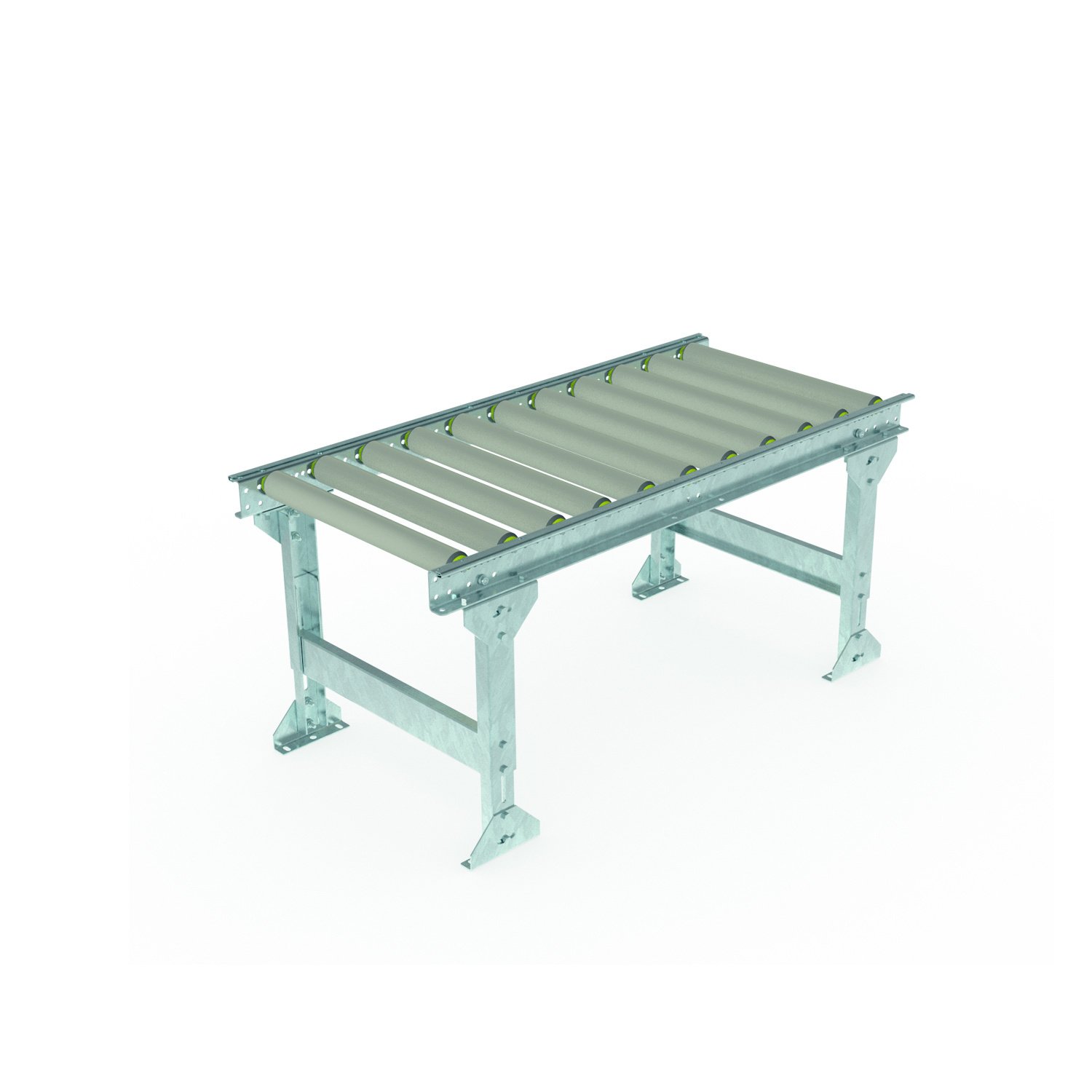

Gravity Box Roller Conveyor Set 1200x500 mm (Steel Rollers) incl. Adjustable Support Leg 651–959 mm
Complete gravity conveyor set: 1200x500 mm section with steel rollers (105 mm pitch) plus adjustable support leg 651–959 mm. Load up to 250 kg (with legs). Delivery across the GCC.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Gravity Box Roller Conveyor Set 1200x500 mm (Steel Rollers) incl. Adjustable Support Leg 651–959 mm
Overview
This gravity box roller conveyor set combines a conveyor section with steel rollers and an adjustable support leg. Build a dependable gravity lane quickly and set the correct incline for moving cartons, trays and parcels without powered drive.
Key benefits
- Complete set: conveyor + support leg as one webshop product
- Steel rollers: suited for tougher use and higher loads
- Height adjustable 651–959 mm: fine-tune the incline for smooth gravity flow
- Higher load rating: up to 250 kg (with legs at 1.2 m centers)
- Robust build: side profiles and rollers with spring-loaded axle (Ø8x11 mm)
- Caster option: lower connection plate can be replaced by SLG999-AC (for caster with 105x85 mm top plate)
Typical applications
- Carton and parcel handling in warehouses and DCs
- Picking and packing lines
- Gravity flow buffers
- Internal transport where powered conveying is not required
What’s included

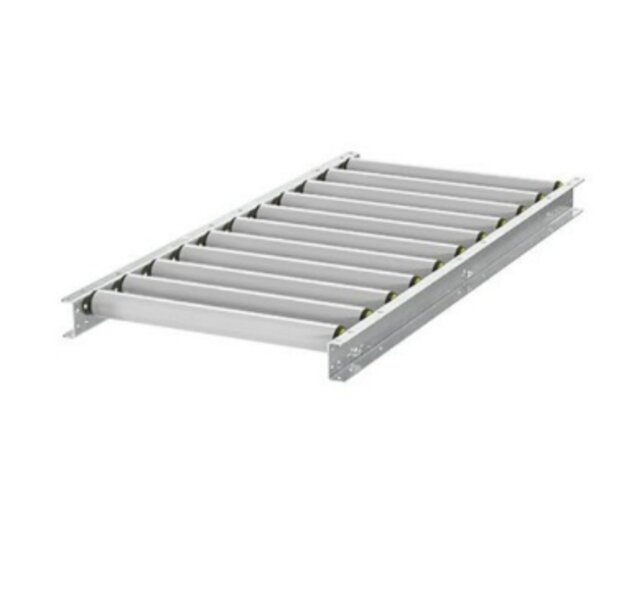

- 1× Gravity box conveyor 1200x500 mm, steel rollers, 105 mm pitch (c/c)

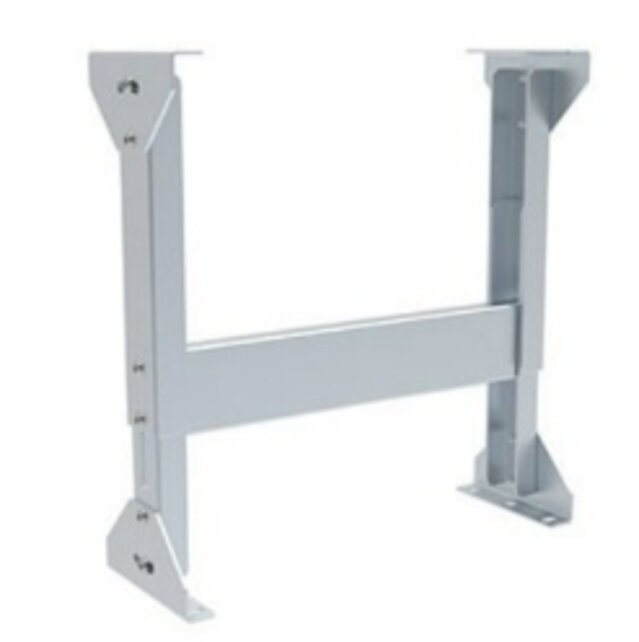

- 1× Adjustable support leg 651–959 mm
- Optional: SLG999-AC connection plate for caster mounting (105x85 mm top plate)
Technical specifications
Note: values may be nominal/rounded; refer to drawings for exact dimensions. Images may differ from the actual product.
| Specification | Conveyor (Steel Roller) | Support Leg | Notes |
|---|---|---|---|
| Article number | S01250050ZF-12 | S00005062 | Supplied as one set |
| Length | 1200 mm | — | Conveyor section |
| Roller width | 500 mm | 500 mm | Matching width |
| Total width | 560 mm | 560 mm | Overall width |
| Roller diameter | 50 mm | — | Steel roller |
| Total height (conveyor) | 75 mm | — | Section height |
| Leg height range | — | 651–959 mm | For incline/working height |
| Roller pitch (c/c) | 105 mm | — | Center-to-center |
| Tread material | Steel | — | |
| Axle design | Spring-loaded axle Ø8x11 mm | — | |
| Heat resistant | No | No | |
| Load capacity (with legs c/c 1.2 m) | 250 kg | — | Depends on layout/conditions |
| Product weight | 14.28 kg | 6.53 kg | Total set approx. 20.81 kg |
Other options and sizes are available upon request; standard roller/conveyor widths are 300 mm, 400 mm, 500 mm and 600 mm—contact our sales team for more information or send your project details to [email protected] to receive a technical and commercial offer.
Delivery & support
- Shipping and project deliveries across the GCC
- Support for sizing, expansion (extra sections/legs), and integration into existing lines
RFQ / Request a quote
Email: [email protected]
Tel: +971 44058154
WhatsApp: +971543554679
