Gravity Box Roller Conveyor Set 2400x500 mm (Plastic Rollers) incl. Adjustable Support Leg 651–959 mm
Complete gravity conveyor set: 2400x500 mm section with plastic rollers (105 mm pitch) plus adjustable support leg 651–959 mm. For cartons and parcels. Load up to 160 kg (legs at 1.2 m). Delivery across the GCC.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Gravity Box Roller Conveyor Set 2400x500 mm (Plastic Rollers) incl. Adjustable Support Leg 651–959 mm
Overview

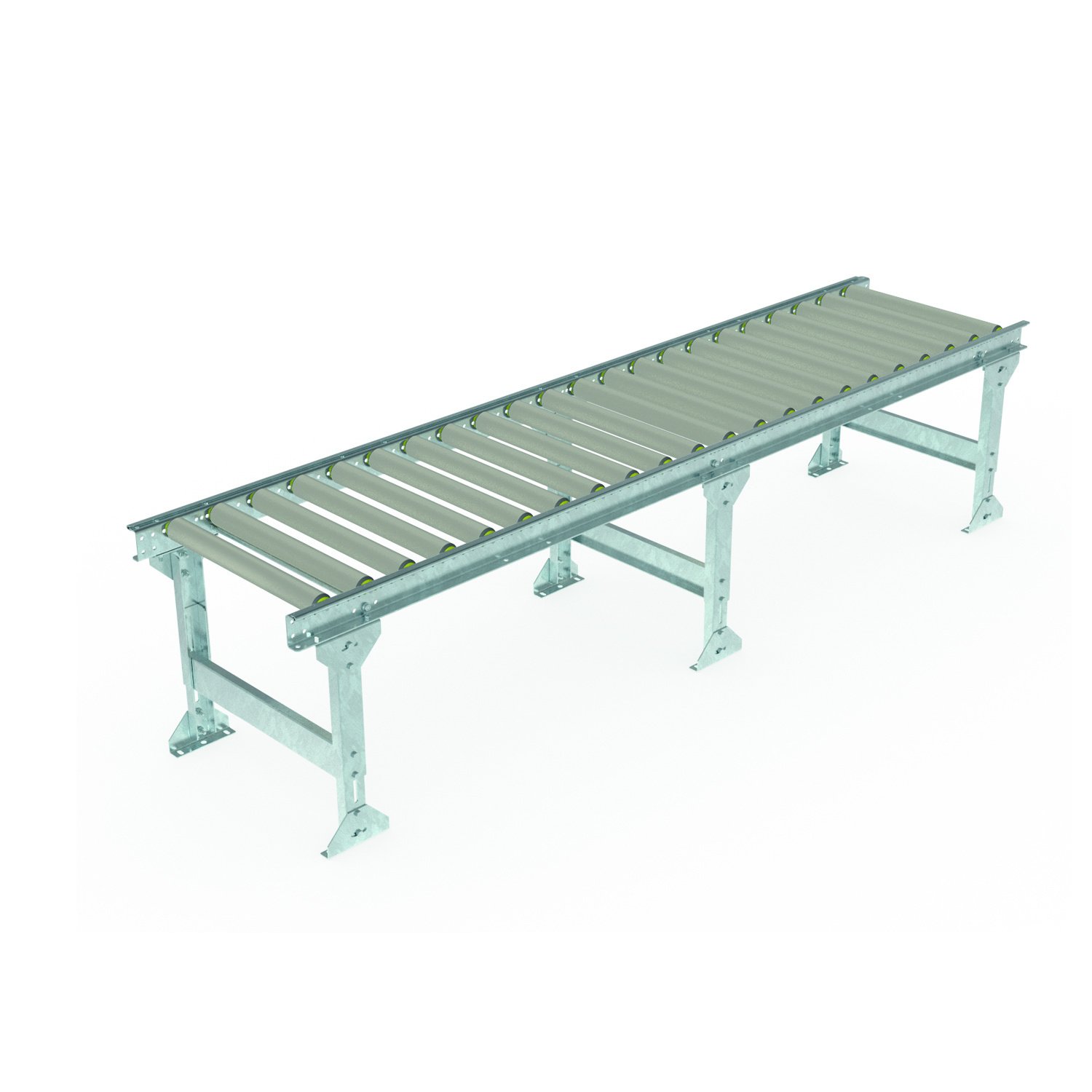

This complete gravity box roller conveyor set includes a non-powered roller conveyor section 2400x500 mm with plastic rollers plus an adjustable support leg. Set the right incline for smooth gravity flow of cartons, parcels, trays and lightweight unit loads.
Key benefits
- All-in-one set: conveyor + support leg as one webshop product
- Height adjustable (651–959 mm): easy incline/working height adjustment
- Plastic rollers (Ø50 mm): suitable for lightweight handling and quieter operation
- Spring-loaded axle (8x11 mm): stable roller mounting and easier service
- Caster-ready option: lower connection plate can be replaced by SLG999-AC (for a caster with 105x85 mm top plate)
Typical applications
- Gravity flow lanes for picking and packing
- Buffer and sorting lanes for cartons/parcels
- Internal logistics without powered conveying
What’s included

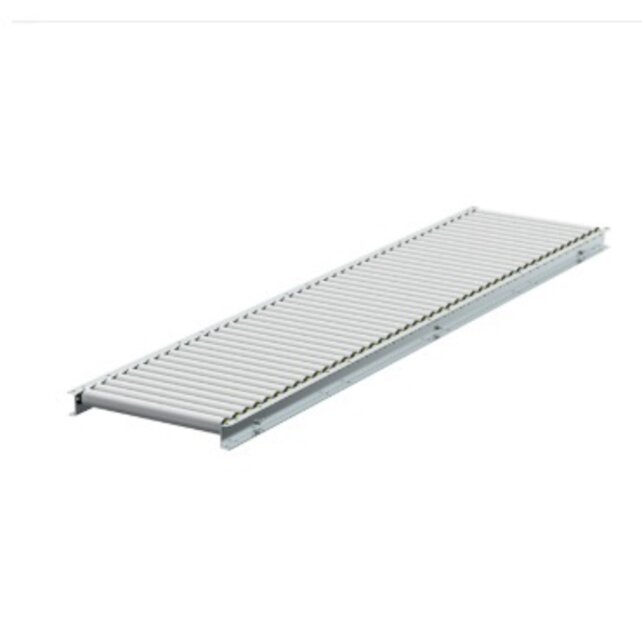

- 1× Gravity box conveyor 2400x500 mm, plastic rollers, 105 mm pitch (c/c) (Art. S02450050VF-23)

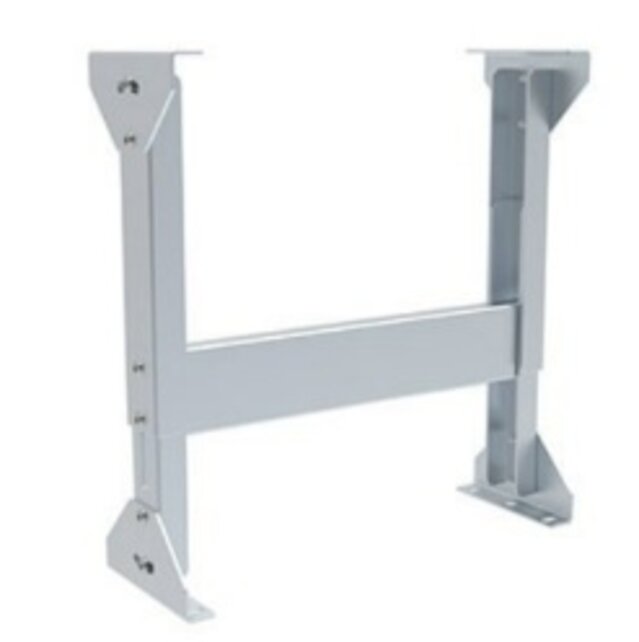

- 1× Adjustable support leg 651–959 mm (Art. S00005062)
- Optional: SLG999-AC connection plate for caster mounting (105x85 mm top plate)
Technical specifications
Note: values may be nominal/rounded; refer to drawings for exact dimensions. Images may differ from the actual product.
| Specification | Conveyor (2400 mm, plastic rollers) | Support Leg (adjustable) | Notes |
|---|---|---|---|
| Article number | S02450050VF-23 | S00005062 | Supplied as one set |
| Length | 2400 mm | — | Conveyor section |
| Roller width | 500 mm | 500 mm | Matching width |
| Total width | 560 mm | 560 mm | Overall width |
| Roller diameter | 50 mm | — | Plastic roller |
| Total height (conveyor) | 75 mm | — | Section height |
| Leg height range | — | 651–959 mm | For incline/working height |
| Roller pitch (c/c) | 105 mm | — | Center-to-center distance |
| Tread material | Plastic | — | |
| Axle design | Spring-loaded axle 8x11 mm | — | |
| Heat resistant | No | No | |
| Load capacity (with legs c/c 1.2 m) | 160 kg | — | Depends on layout/conditions |
| Load capacity (with legs c/c 2.4 m) | 125 kg | — | Depends on layout/conditions |
| Product weight | 25.94 kg | 6.53 kg | Total set approx. 32.47 kg |
Other options and sizes are available upon request; standard roller/conveyor widths are 300 mm, 400 mm, 500 mm and 600 mm—contact our sales team for more information or send your project details to [email protected] to receive a technical and commercial offer.
Delivery & support
- Shipping and project deliveries across the GCC
- Support for configuration (extra sections, extra legs, curves, transitions) on request
RFQ / Request a quote
Contact: [email protected] | +971 44058154
