Full ESD SI Workbenches – Mechanical & Fixed Models with 30mm ESD Laminate Top - High load capacity

Professional ESD Workstations for Industrial & Electronic Environments

The SI workbench range includes both mechanically height-adjustable and fixed models, designed for environments where robustness, ergonomics, and electrostatic discharge (ESD) protection are critical. The 30 mm ESD laminate worktop ensures safe dissipation of static electricity, protecting sensitive electronic components.

Mechanical Height-Adjustable SI Workbench

The mechanically adjustable SI workbench offers flexibility and ergonomic comfort, allowing users to adapt the working height easily without disassembly.

Key Features

• 30 mm ESD laminate worktop
• Height adjustment via sliding notches every 20 mm
• Adjustment range: 770 – 1050 mm (excluding top)
• High load capacity: 1000 KG
• Reinforced steel frame for heavy-duty use
• No visible screws for improved safety and clean design

Construction

• Steel structure with 2 mm tubing and 2.5 mm folded sheet metal
• Welded 40 × 40 mm tubular legs
• 40 × 60 × 40 mm U-shaped crossbars
• Three crossbars (2 upper + 1 lower) for maximum stability

Finish & Safety

• Epoxy powder coating cured at 180°C
• Anti-puncture plastic feet
• Durable and easy to maintain

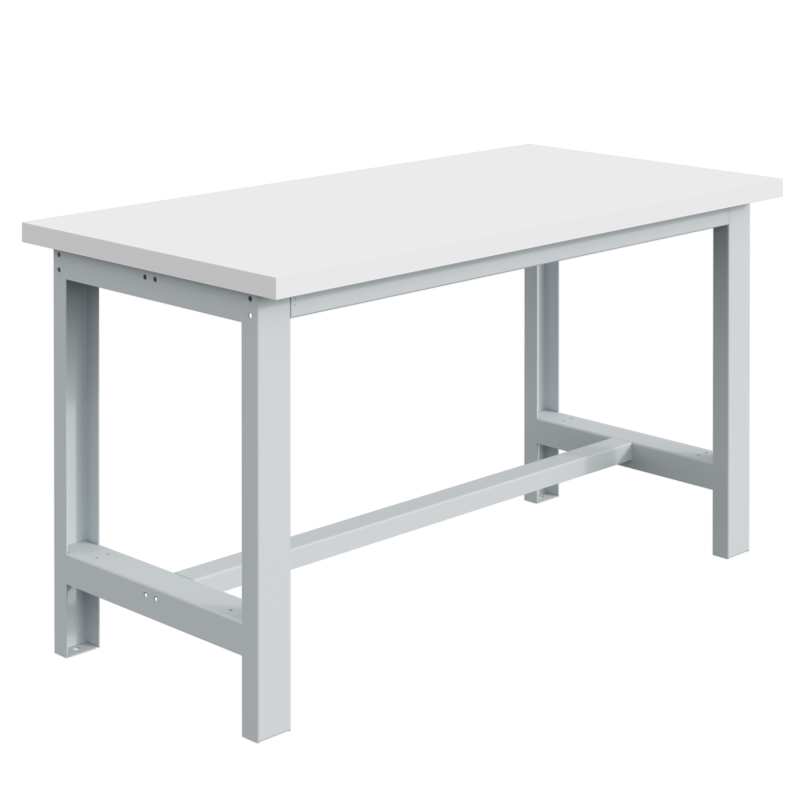

Fixed SI Workbench – 30 mm ESD Laminate Top

The fixed SI workbench is designed for maximum stability and load capacity, making it ideal for permanent workstations in electronics and industrial environments.

Key Features

• 30 mm ESD laminate worktop
• Designed for ESD-safe environments (EPA compliant)
• High load capacity: 1000 KG
• High load capacity and structural rigidity
• Screwless and boltless design for safety

Construction

• Reinforced steel frame with thick-walled tubes and folded sheet metal
• Welded 40 × 40 mm tubular legs
• Horizontal crossbars for added strength
• Epoxy-coated finish for long-term durability

ESD Protection & Performance

• Efficient electrostatic discharge (ESD) control
• Protects sensitive electronics during assembly and testing
• Suitable for EPA (Electrostatic Protected Area) zones

Applications

• Electronics assembly and repair
• Testing and maintenance workstations
• Industrial production lines
• Laboratories and clean environments

Advantages

• Reliable ESD protection for sensitive components
• Choice between adjustable or fixed configurations
• Heavy-duty industrial construction
• Ergonomic and user-friendly design
• Modular system with expandable accessories

Standard Delivery

• Workbench (mechanical or fixed version)
• 30 mm ESD laminate worktop
• Ready for installation (Delivered Flatpack)

Contact Us for a Quote or Consultation

• Email: [email protected]
• Call: +971 44058154
• WhatsApp: +971543554679

Upgrade your workspace with a professional ESD-safe solution from SALESBRIDGES. Contact us today for a customized quotation.
