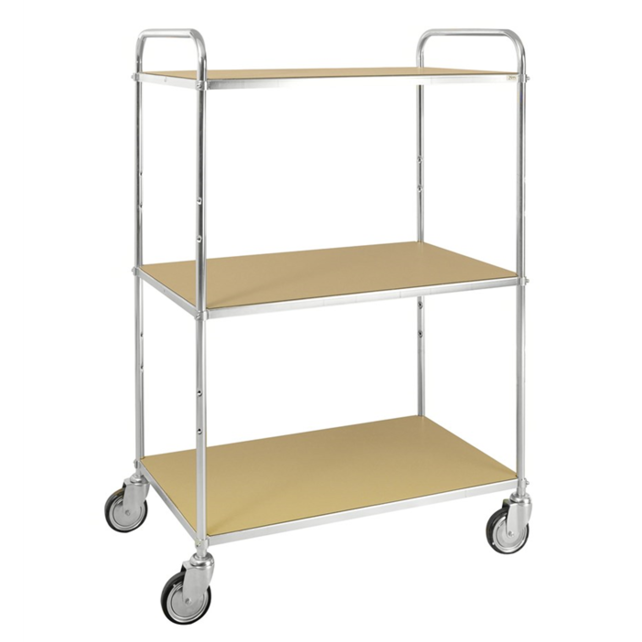

ESD Trolley With 3 Shelves adjustable in height L98xW58xH144 cm
- Buy 2 for AED 5,670.00 each and save 29%
- Buy 4 for AED 4,500.00 each and save 44%
Electro Galvanized with ESD Shelves extra large size , 3 Shelves Can be Mounted on Different Heights. Adjustable handle 4 swivel castors 125 mm. ESD Trolleys are equipped with Dissipative Carpets and are SP Approved.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
ESD Trolley 3 Shelves 980×585×1445 mm – 250 kg Capacity | Anti-Static Shelf Trolley IEC 61340-5-1
The ESD Trolley with 3 Adjustable Shelves is designed for safe handling of sensitive electronic components in ESD-controlled environments. Built with electro-galvanized steel and equipped with dissipative ESD shelves, this trolley ensures full protection against electrostatic discharge.
Compliant with the international IEC 61340-5-1, it provides reliable grounding and controlled conductivity, making it ideal for electronics manufacturing and assembly areas.
Key Features
- ESD-safe design compliant with IEC 61340-5-1
- 3 adjustable shelves with dissipative surfaces
- Total load capacity: 250 kg
- Electro-galvanized steel construction
- Heat-resistant ESD carpets (up to 400°C)
- Smooth mobility with 4 swivel castors (125 mm)
- Adjustable handle for ergonomic use
- Excellent conductivity via grounded chassis and wheels
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | ESD Shelf Trolley |
| Number of Shelves | 3 |
| Load Capacity | 250 kg |
| Shelf Capacity | 83 kg per shelf |
| Length | 980 mm |
| Width | 585 mm |
| Height | 1445 mm |
| Shelf Dimensions | 940 × 540 mm |
| Distance Between Shelves | 530 mm |
| Height to First Shelf | 240 mm |
| Height to Second Shelf | 785 mm |
| Height to Top Shelf | 1340 mm |
| Material | Electro-galvanized steel |
| Shelves | ESD dissipative with carpets |
| Wheels | 4 swivel castors |
| Wheel Diameter | 125 mm |
| Net Weight | 41.5 kg |
| Gross Weight | 43 kg |
| Freight Volume | 0.14 m³ |
ESD Compliance & Performance
- Meets IEC 61340-5-1 standard requirements
- Resistance to ground (Rg): ≤ 10⁹ Ω (1 GΩ)
- Surface resistance (Rp-p): ≤ 10⁹ Ω (1 GΩ)
- Continuous grounding via conductive wheels and chassis
- ESD carpets ensure safe discharge of static electricity
Applications
- Electronics manufacturing
- ESD protected areas (EPA)
- Assembly lines
- Laboratories
- Cleanrooms
- Repair and testing facilities
Delivery & Support
-
Delivery available across the GCC region
Request a Quotation
For pricing, configuration options, or technical support:
Email: [email protected]
Phone: +971 4405 8154
WhatsApp: +971543554679
| Brand | Kongamek |
| Article code | SB4123ESD |
| SKU | SB4123ESD |
| EAN | 9505238755810 |
