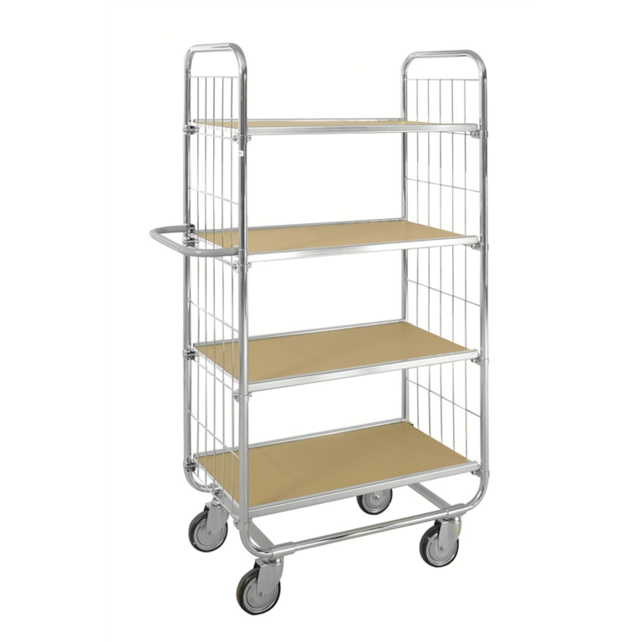

ESD Trolley With 4 Shelves adjustable in height L1395xW470xH1590 mm

Product description

ESD Trolley with 4 Flexible Shelves and Adjustable Handle - 1395 x 470 x 1590 mm, 250 kg

The ESD trolley with 4 flexible shelves is a reliable and versatile solution for handling materials in ESD-sensitive environments. Designed with adjustable shelf heights, dissipative shelf carpets, and conductive wheels, it helps protect sensitive components while providing efficient storage and transport in production, assembly, and technical work areas.

Key Features

4 flexible ESD shelves
Shelves adjustable in height
Adjustable handle
Electro-galvanized construction
Dissipative shelf carpets
SP approved
Shelf carpets withstand heat up to 400°C
4 swivel castors, 2 with brake
Meets IEC61340-5-1 ESD requirements

Technical Specifications

Specification	Value
Length	1395 mm
Width	470 mm
Height	1590 mm
Capacity	250 kg static load
Weight	45 kg net
Material	Electro-galvanized steel with ESD shelves and dissipative carpets
Color	Galvanized finish
Additional	Gross weight: 46.5 kg, freight volume: 0.15 m³, 4 shelves, shelf capacity: 62 kg each, shelf size: 1200 x 425 mm, 4 swivel castors Ø125 mm, 2 with brake

Construction & Details

Electro-galvanized frame for durability and corrosion resistance
ESD shelves fitted with dissipative carpets for controlled static discharge
Shelf heights can be adjusted to suit different storage and handling needs
Adjustable handle improves user comfort and flexibility
Dissipative carpets withstand temperatures up to 400°C
Conductive wheels provide electrical contact with the ground
Shelf carpets are connected to the chassis for full ESD functionality
Meets IEC61340-5-1 requirements for resistance to ground (Rg) and surface resistance (Rp-p), max 10⁹ Ω / 1 GΩ
