Notrax ESD 457 Electrostatic Discharge Mat – Black

Description

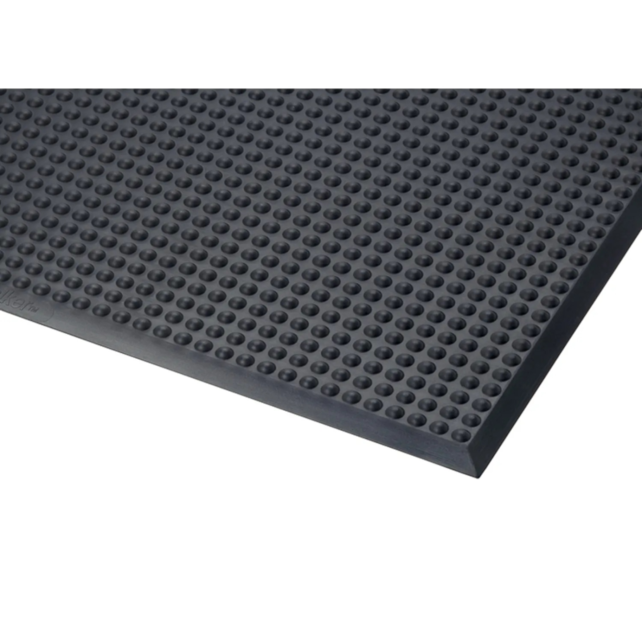

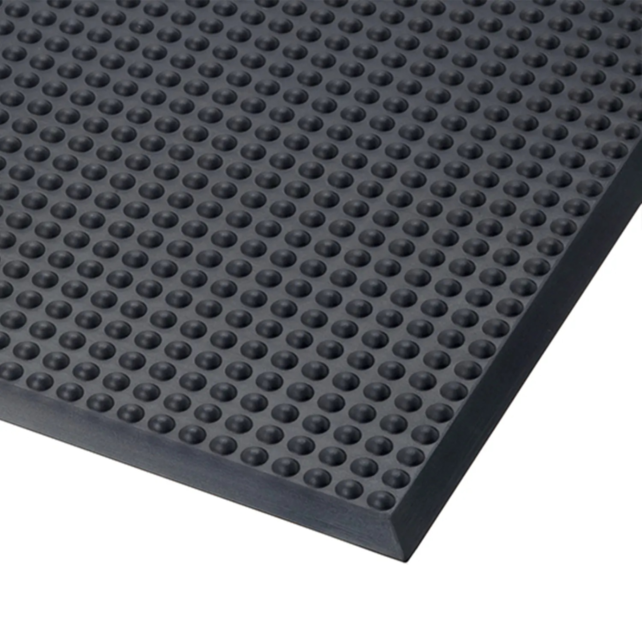

The Notrax ESD 457 mat is a medium-duty anti-fatigue mat designed for dry work areas where electrostatic discharge protection is required. It is ideal for ESD assembly lines, picking and packing stations, logistics warehouses, sit-stand desks, and individual workstations.

Made from a static-dissipative natural rubber compound, the mat helps protect sensitive electrical equipment while improving standing comfort for workers. The ergonomic bubble surface provides both traction and fatigue relief, while the built-in air chamber design creates a cushioning effect and helps keep the mat lightweight.

Integrated bevelled edges on all four sides help reduce trip hazards, and the mat can be loose laid for quick and easy installation.

Key Features

• ESD static-dissipative mat
• Medium-duty construction
• Ergonomic bubble surface for comfort and grip
• Anti-fatigue support for standing workstations
• Suitable for dry areas
• Ideal for ESD assembly, packing, logistics, and workstations
• Bevelled edges on all four sides to reduce trip risk
• Loose lay installation – no fixing required
• Lightweight cushioning effect through trapped air chambers
• Environmentally friendly production
• Free of DOP, DMF, silicone, ozone-depleting substances, and heavy metals

Specifications

• Material: Static-dissipative natural rubber
• Colour: Black
• Thickness: 13 mm
• Usage intensity: Medium duty
• Surface pattern: Ergonomic anti-slip bubble pattern
• Edges: Bevelled edges on all sides
• Manufacturing process: Injection moulding

Available Sizes

• 60 x 90 cm
• 90 x 120 cm
• 90 x 150 cm

Recommended Use

Suitable for:

• Dry areas
• ESD assembly lines
• Picking and packing stations
• Logistics warehouses
• Individual workstations
• Sit-stand desks
• Reception areas
• Service counters
• Cashier stations

ESD Performance

The static-dissipative natural rubber compound meets:

• IEC 61340-4-1 (Category DIF)

Measured resistance:

• Rg: 10⁶ – 10⁹ Ω
• Rp: 10⁶ – 10⁹ Ω

Slip Resistance

• Slip resistance rating: R9 according to DIN 51130 and BG-rule BGR181

Accessories

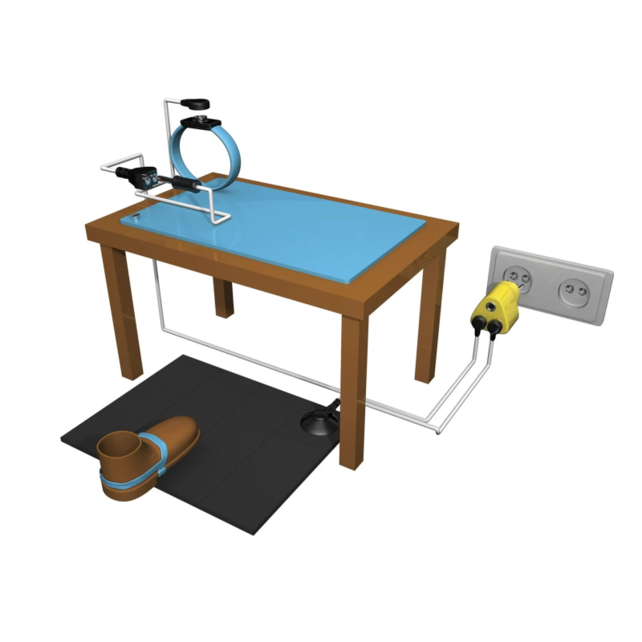

ESD Floor Grounding Cord 051 Notrax Accessories

Available with:

• Ring connector
• 10 mm female connector

Features:

• Easy to install
• 4.5 m cable length
• 1 Meg resistor mat-to-ground
• Low-profile bevelled cap helps prevent accidental removal
• Connects mat to a common grounding point for controlled discharge of static electricity

Meets the requirements of:

• ANSI/ESD S20.20
• EIA 625
