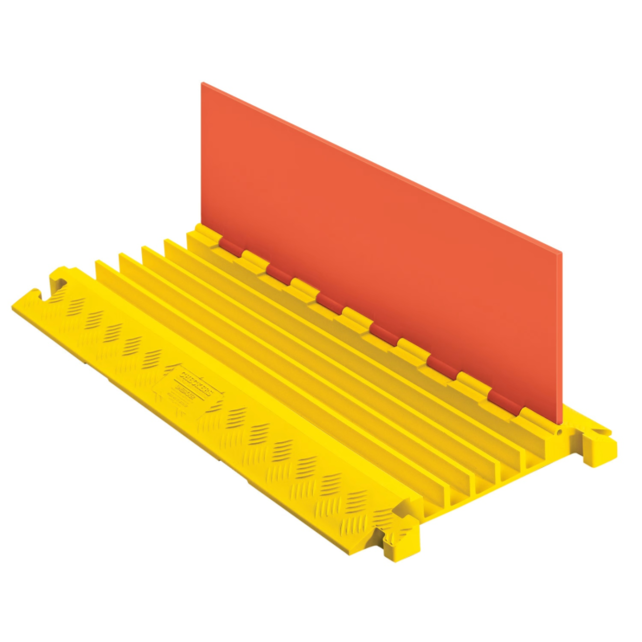

5 Channel General Pupose Cable Protector for 1.3" (3.3cm) Lines - Y/O
Cable protector with with hinged lid. (Load Capacity per Axle is 10 tons). General Purpose , Ideal for us in entertainment venues, sporting events, and most public, commercial, industrial, and utility applications.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Heavy-Duty Cable Bridge – 5 Channel Ø33 mm – 10 Ton Axle Capacity

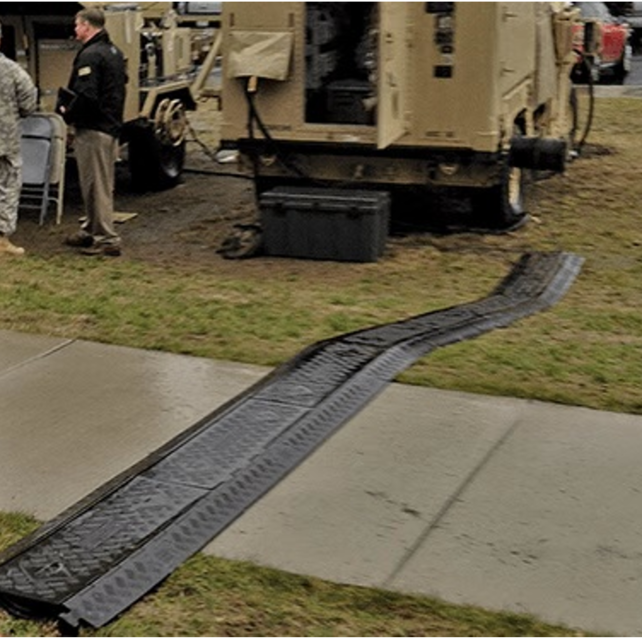

Industrial Cable Protection for Heavy Vehicles
The 5-channel heavy-duty cable bridge is designed to protect cables and hoses in demanding environments such as oil and gas sites, mining operations, military areas, industrial plants, and construction zones. With an axle load capacity of 10,000 kg, it provides safe passage for heavy trucks, forklifts, and machinery.
Constructed from UV-stabilized polyurethane, this cable protector is lighter and more durable than traditional rubber alternatives. It offers excellent resistance to weather, impact, and chemicals, while the hinged lid design allows cables to be inserted quickly without disconnecting them.
Key Features
- 5-channel cable protection system
- Suitable for cables and hoses up to Ø 33 mm (1.3")
- Heavy-duty 10,000 kg axle load capacity
- 4,762 kg per tire load capacity
- Made from UV-stabilized polyurethane
- Lighter and more durable than rubber
- Non-conductive material for added safety
- Hinged lid for easy cable access
- Patented 5-bar tread surface for maximum traction
- Modular interlocking system with T-connectors
- High-visibility yellow base with orange lid
- Easy to transport, install, and store
Technical Specifications
| Specification | Value |
|---|---|
| Material | UV-stabilized polyurethane |
| Number of channels | 5 |
| Length | 953 mm |
| Width | 441 mm |
| Height | 50 mm |
| Channel size | Ø 33 mm |
| Load capacity / axle | 10,000 kg |
| Load capacity / tire | 4,762 kg |
| Colour | Yellow base / Orange lid |
Construction and Performance
- All-weather polyurethane construction
- Non-conductive for cable and user protection
- Reinforced hinged lid for easy cable placement
- Patented tread pattern for improved grip and traction
- Modular design allows multiple units to be connected
- Quick to deploy and easy to maintain
Applications
Ideal for use in:
- Oil and gas operations
- Mining sites
- Military environments
- Industrial plants and factories
- Construction and heavy-duty worksites
Advantages
- Protects cables from damage caused by heavy vehicles
- Provides safe passage for equipment and personnel
- Lightweight yet extremely strong
- Expandable modular system
- Fast installation and easy maintenance
Standard Delivery
- 5-channel cable protector with hinged lid
- Modular connection system
- Ready for immediate use
Country of Origin
- Made in USA
Contact Us for a Quote or Consultation
- Email: [email protected]
- Call: +971 44058154
- WhatsApp: +971543554679
Enhance your operations with the reliable and cost-effective solution from SALESBRIDGES. Request your quote today.
| Brand | SalesBridges |
| Article code | SBCP5X125-GP-YO |
| SKU | SBCP5X125-GP-YO |
| EAN | 9508739773253 |
