Cable Bridge with Cover 5 tunnels Ø 35 mm cable protection
The modular Crash Stop cable bridges with cover are a reliable protection for cables and small hoses in walking and driving paths or at events. The modular cable bridge system offers an easy installation by one person. The axle load of the item is 5t. Rec
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Cable Bridge with Cover – 5 Channels Ø35 mm (Heavy Duty 12T)
High-Capacity Cable Protection for Traffic & Industrial Use
The Cable Bridge with Cover (5 Channels, 12 Ton Axle Load) is a heavy-duty modular solution designed to protect cables and hoses in high-traffic environments. Ideal for construction sites, warehouses, and events, it ensures safe passage for vehicles while preventing cable damage.
Strong, Modular & Easy to Install

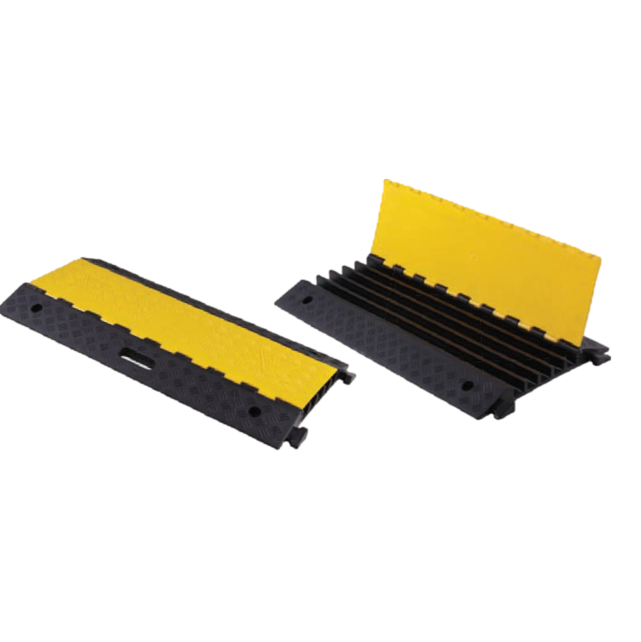

This cable bridge features a top-opening high-strength lid for quick cable placement and a modular connection system for easy expansion. Designed for heavy-duty use, it supports axle loads up to 12 tons, making it suitable for demanding applications.
Key Features
- 5 cable tunnels for efficient cable organization
- Heavy-duty design with 12-ton axle load capacity
- High visibility yellow lid with black base
- Durable rubber construction

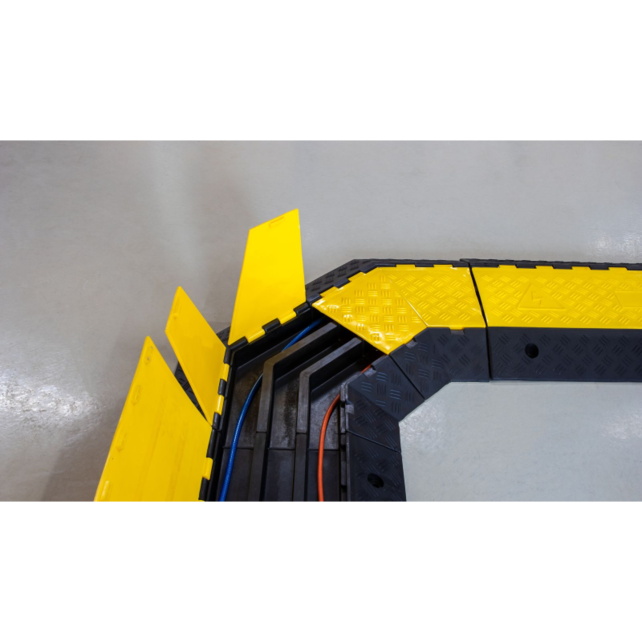

- Easy top-loading cable access
- Modular system with side connectors
- Suitable for indoor and outdoor use

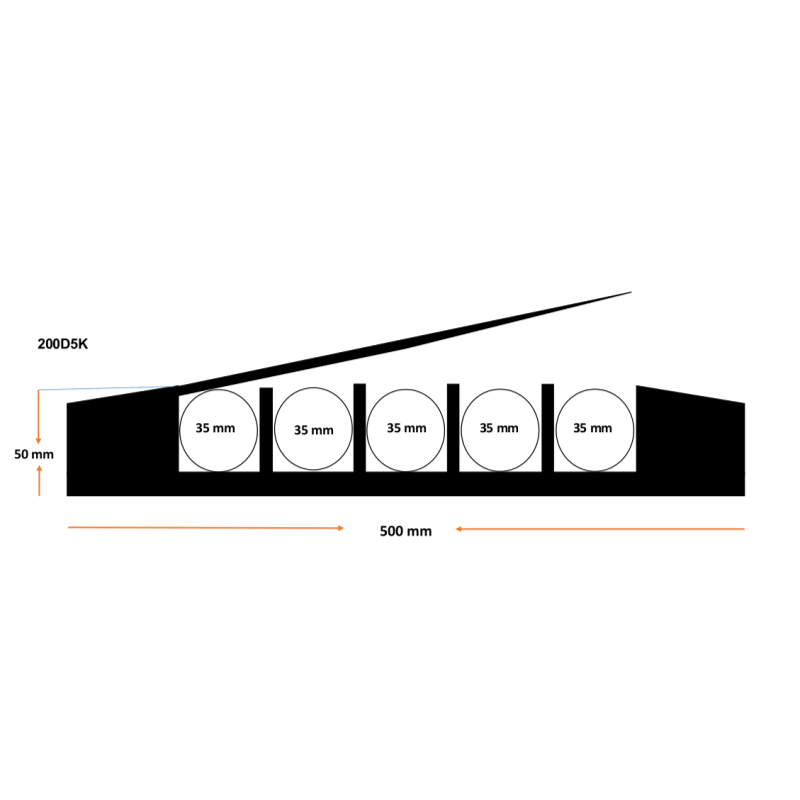

Technical Specifications
| Specification | Value |
|---|---|
| Length | 900 mm |
| Width | 500 mm |
| Height | 50 mm |
| Number of Channels | 5 |
| Cable Diameter | Up to Ø 35 mm |
| Tunnel Size | 35.3 × 38 mm |
| Weight | 17 kg |
| Material | Rubber + high-strength plastic lid |
| Color | Black with yellow cover |
| Axle Load | 12 tons |
| Recommended Speed | 5–10 km/h |
| Usage | Indoor & Outdoor |
Construction Details
- Heavy-duty rubber base for high load resistance
- High-strength plastic lid for secure cable protection
- Chamfered edges for smooth vehicle crossing
- UV-resistant and weatherproof materials

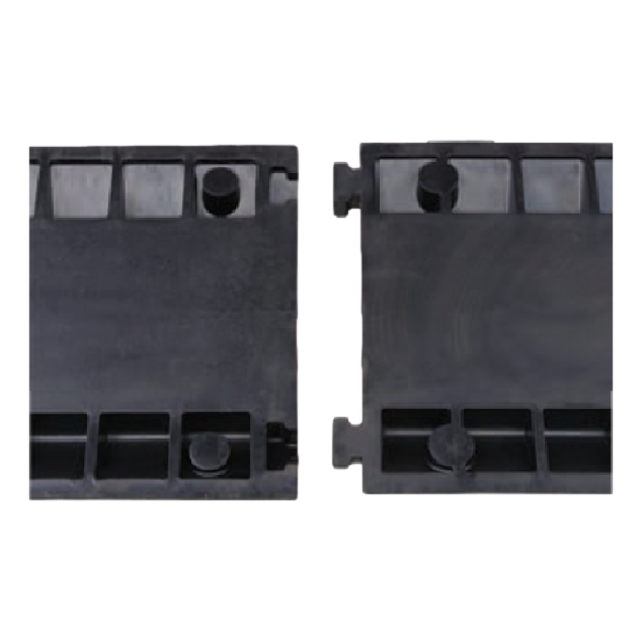

- Modular connectors for quick and flexible setup
Available Models
| Art. No. | Description | Size (L×W) | Height | Weight | Load |
|---|---|---|---|---|---|

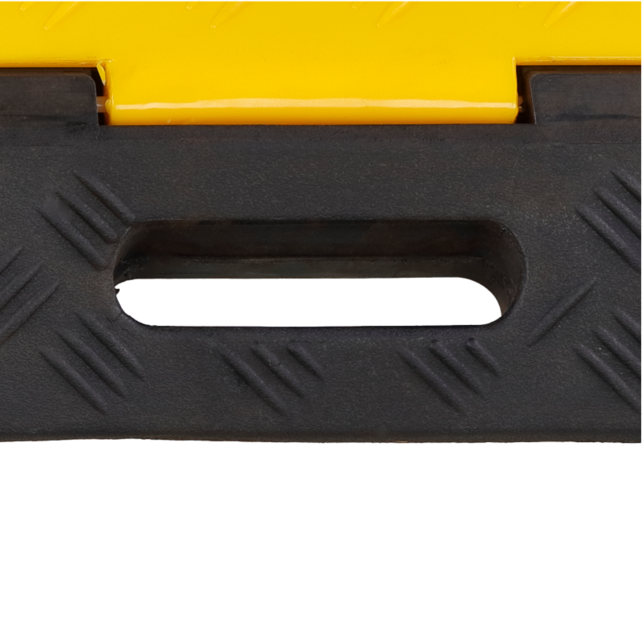

| SBKB200D2 | 2 channels with handle | 980 × 240 mm | 45 mm | 6.5 kg | 5 t |
| SBKB200D3 | 3 channels with handle | 900 × 500 mm | 70 mm | 16.5 kg | 8 t |
| SBKB200D5 | 5 channels with handle | 900 × 500 mm | 50 mm | 17.0 kg | 8 t |

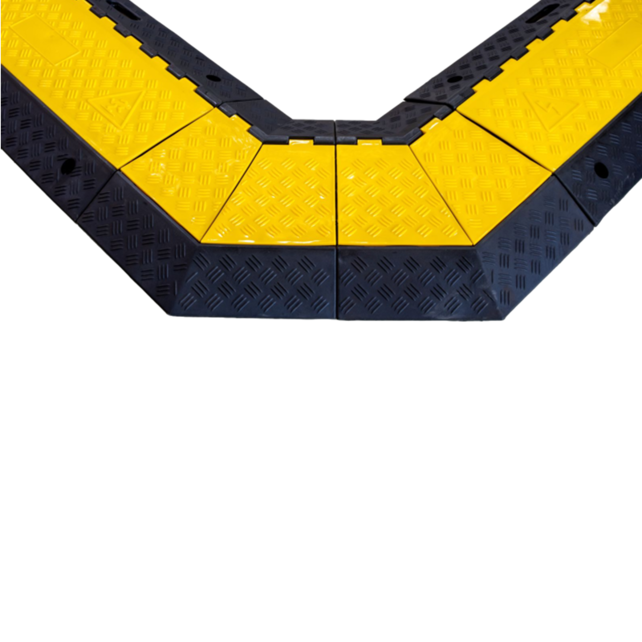

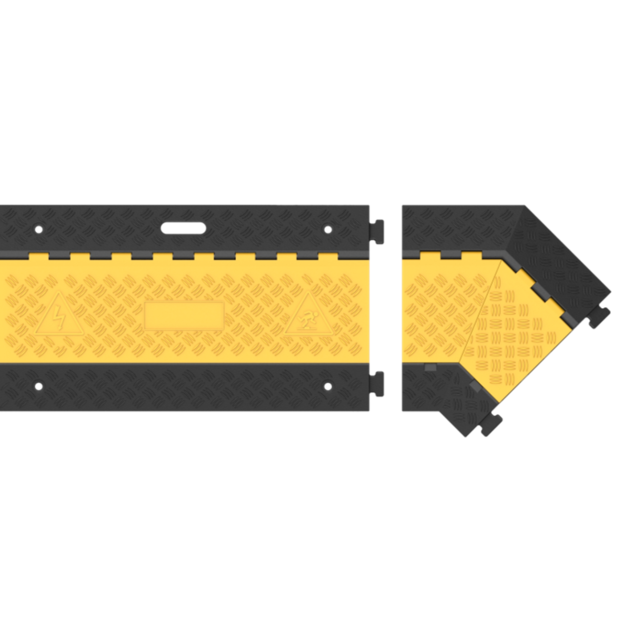

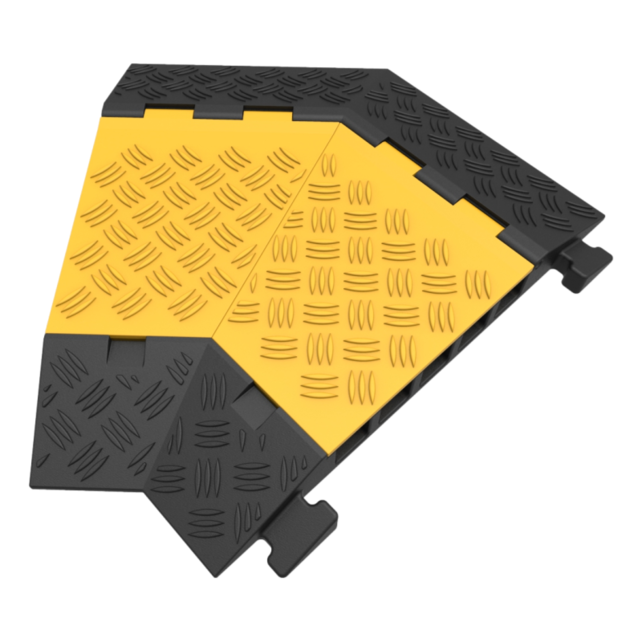

| SBKB200D3R | 45° right, 3 channels | 500 mm | 70 mm | 7.5 kg | 8 t |
| SBKB200D3L | 45° left, 3 channels | 500 mm | 70 mm | 7.5 kg | 8 t |
| SBKB200D5R | 45° right, 5 channels | 500 mm | 50 mm | 6 kg | 8 t |
| SBKB200D5L | 45° left, 5 channels | 500 mm | 50 mm | 6 kg | 8 t |
Standard Delivery
- Cable bridge module (selected model)
- Integrated connectors
- Ready for immediate use
Applications

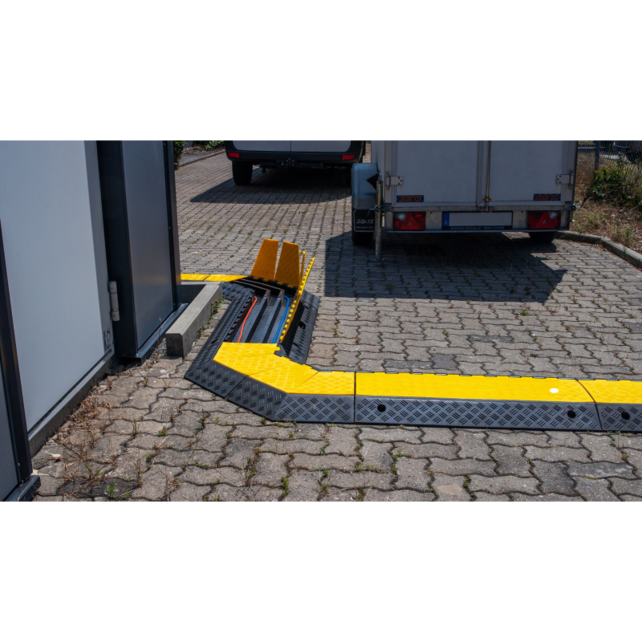

- Construction sites
- Industrial facilities and warehouses
- Events and exhibitions

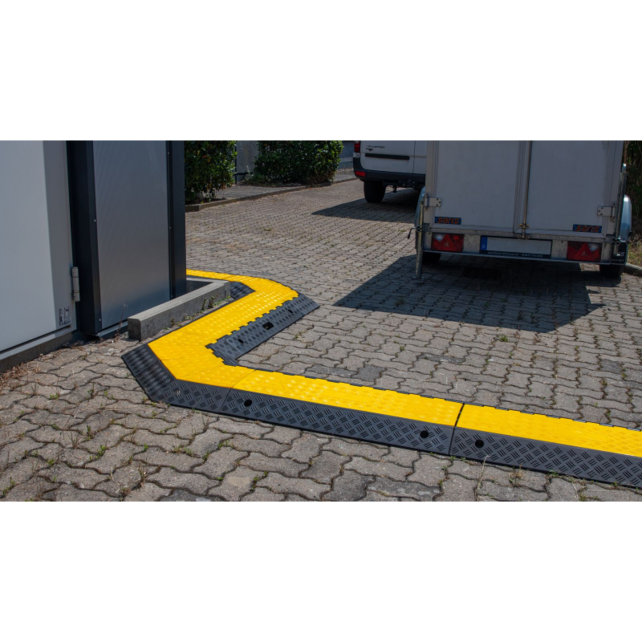

- Parking and traffic areas
Advantages
- Protects cables and hoses from heavy vehicle traffic
- High load capacity for industrial use
- Quick and easy installation
- Expandable modular system
- Improves safety for pedestrians and vehicles
Contact Us for a Quote or Consultation
Email: [email protected]
Call: +971 44058154
WhatsApp: +971543554679
Optimize your cable protection and traffic safety with the SALESBRIDGES heavy-duty cable bridge system. Request your quote today.
| Brand | SalesBridges |
| Article code | SBKB200D5 |
| SKU | SBKB200D5 |
| EAN | 9505987923560 |
