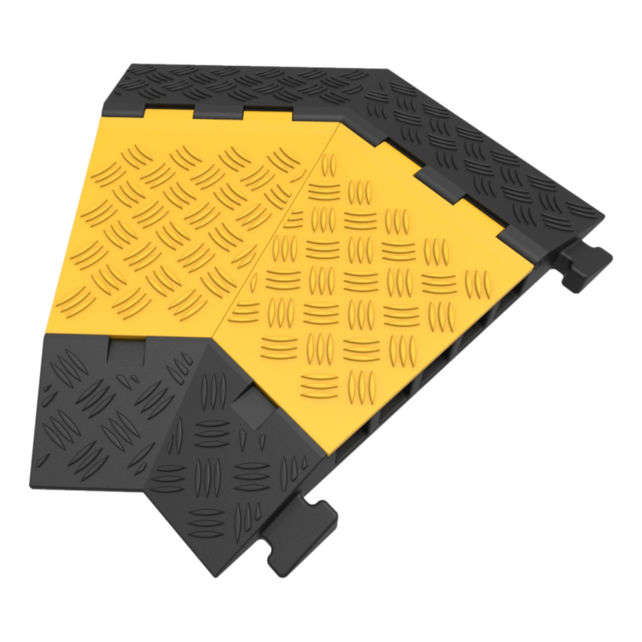

Cable Bridge with Cover 5 tunnels Ø 35 mm cable protection 45° angle
The modular Crash Stop cable bridges with cover are a reliable protection for cables and small hoses in walking and driving paths or at events. The modular cable bridge system offers an easy installation by one person. The axle load of the item is 5t. Rec
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Cable Bridge with Cover – 5 Channels Ø35 mm (45° Angle)
Reliable Cable Protection for Traffic & Event Areas
The Cable Bridge with Cover (5 Channels, 45° Angle) is a modular and heavy-duty solution for protecting cables and hoses in pedestrian and vehicle traffic areas. Designed for both indoor and outdoor use, it ensures safe cable routing while maintaining smooth traffic flow.
Modular & Easy Installation

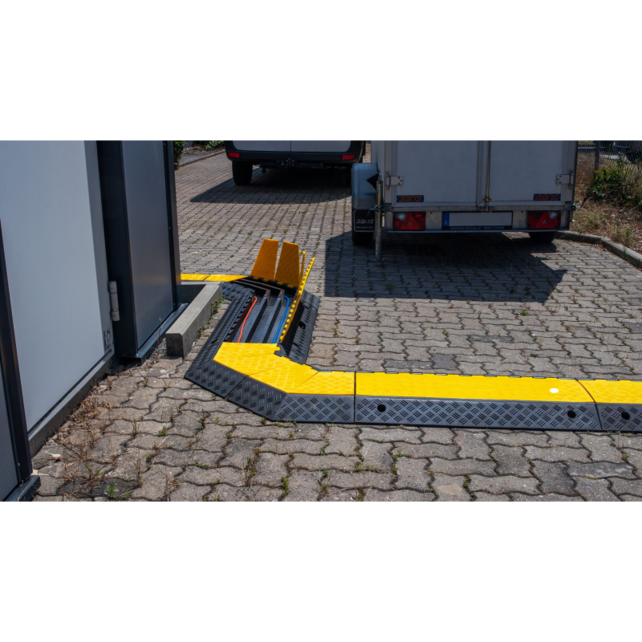

This system allows quick installation by a single person and can be easily expanded using integrated connectors. The top-loading lid enables fast cable placement, while the 45° angled design is ideal for flexible layouts and directional cable routing.
Key Features
- 5 cable tunnels for organized cable management

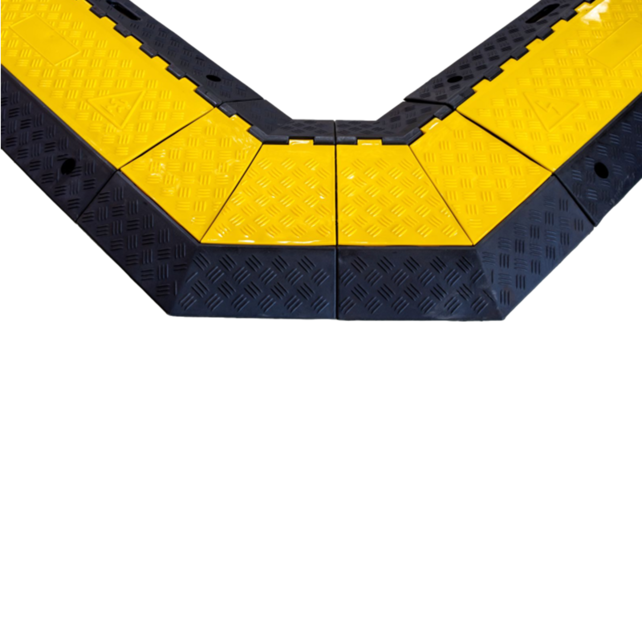

- 45° angle design for flexible layout configurations
- High visibility yellow lid with black base
- Heavy-duty rubber construction
- Easy top-loading cable access
- Modular system with side connectors
- Suitable for pedestrian and vehicle traffic
Technical Specifications
| Specification | Value |
|---|---|
| Length | 500 mm |
| Width | 500 mm |
| Height | 50 mm |
| Number of Channels | 5 |
| Cable Diameter | Up to Ø 35–50 mm |
| Tunnel Size | 68 / 57 / 65 mm |
| Weight | 6 kg |
| Material | Rubber + high-strength plastic lid |
| Color | Black with yellow cover |
| Axle Load | Up to 5–8 tons |
| Recommended Speed | 5–10 km/h |
| Usage | Indoor & Outdoor |
Construction Details
- Durable rubber base for high load resistance
- High-strength plastic lid for protection and easy access
- Chamfered edges for smooth vehicle crossing
- UV-resistant and weatherproof materials
- Modular connectors for easy expansion
Available Models
| Art. No. | Description | Size (L×W) | Height | Weight | Load |
|---|---|---|---|---|---|
| SBKB200D2 | 2 channels with handle | 980 × 240 mm | 45 mm | 6.5 kg | 5 t |
| SBKB200D3 | 3 channels with handle | 900 × 500 mm | 70 mm | 16.5 kg | 8 t |
| SBKB200D5 | 5 channels with handle | 900 × 500 mm | 50 mm | 17.0 kg | 8 t |
| SBKB200D3R | 45° right, 3 channels | 500 mm | 70 mm | 7.5 kg | 8 t |
| SBKB200D3L | 45° left, 3 channels | 500 mm | 70 mm | 7.5 kg | 8 t |
| SBKB200D5R | 45° right, 5 channels | 500 mm | 50 mm | 6 kg | 8 t |
| SBKB200D5L | 45° left, 5 channels | 500 mm | 50 mm | 6 kg | 8 t |
Standard Delivery
- Cable bridge module (selected model)
- Integrated connectors
- Ready for immediate use
Applications
- Construction sites
- Events and exhibitions
- Warehouses and logistics areas
- Parking areas and industrial zones
Advantages
- Protects cables and hoses from damage
- Improves safety for pedestrians and vehicles
- Quick and easy installation
- Expandable modular system
- High load capacity for industrial use
Contact Us for a Quote or Consultation
Email: [email protected]
Call: +971 44058154
WhatsApp: +971543554679
Optimize your cable safety and traffic flow with the SALESBRIDGES cable bridge system. Request your quote today.
| Brand | SalesBridges |
| Article code | SBKB200D5R |
