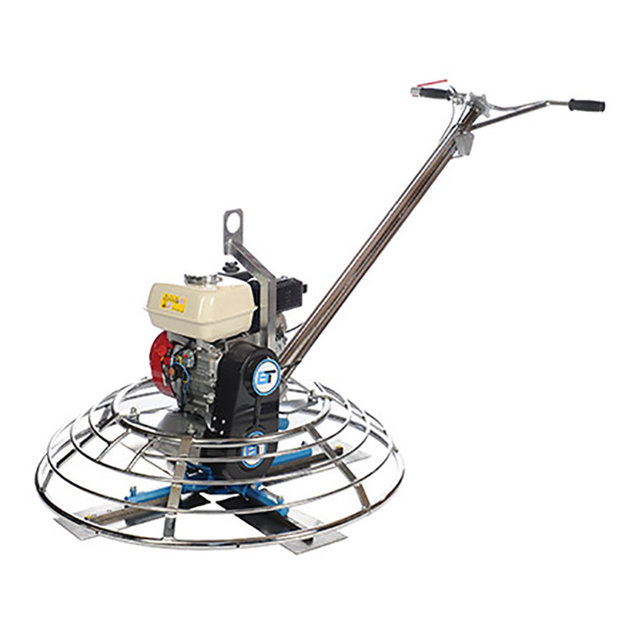

Trowel Concrete Machine 90CM HONDA GX160, 5.5 HP

Walk-behind Power Trowel "Butterfly" Concrete Machine 90CM (36") HONDA GX160, 5.5 HP

 Designed to flatten concrete by floating and finishing. Typically used on jobs smaller than 5,000 square feet.

• Specially designed handles for maximum comfort and machine control.

• Handlebar of 3 tubes welded sideways for strength and protection of all cables.

• Two-part safety system: dead man's clutch and centrifugal mechanical protection.

• Chrome protection ring and handle for easy cleaning.

• Solid bronze gear and hardened round worm shaft for long life.

• Robust aluminum gearbox.

• Trowel arms are fully adjustable for optimum balance of blade and machine.

• Supplied with a lifting eye as standard.

• Foldable handlebar optional.

• 24 months warranty on machine and motor.

SPECIFICATIONS

• WORKING DIAMETER: 90 CM , 36"

• ENGINE OPTIONS: HONDA GX160, 5.5 HP

• FOLDING HANDLE: NO

• BLADE & SANDING DISC OPTIONS: NO

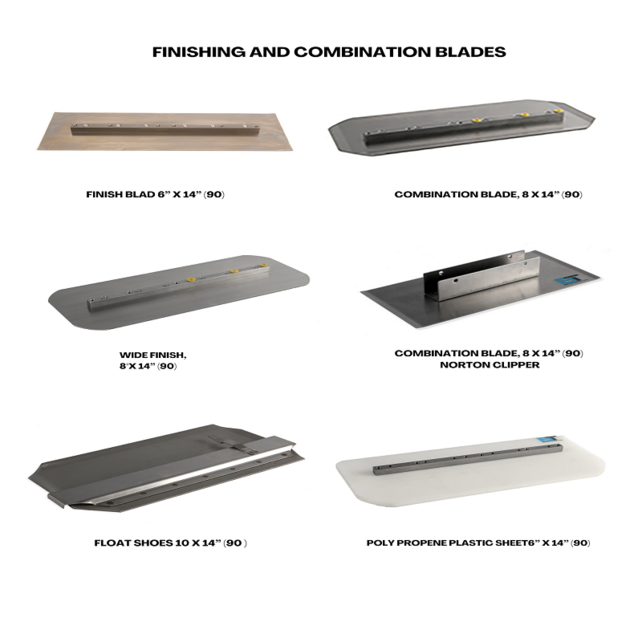

• FINISHING SHEETS: YES

• COMBINATION BLADES: YES

• WIDE FINISH TOPS: YES

• TRANSFER SHOES: YES

• PLASTIC SHEETS: YES

• SANDING DISCS: YES

• SANDING BLOCKS: YES

• Hoist hook

• Centrifugal clutch

• Dimensions: length 1850 mm x Height 960 mm x Width 960 mm

• Operating weight : 78 kg , 172 LBS

• Sound : 97-103 Lwa: 82-86 Lba

• Handle vibrations : 1.1 – 1.5 m/s

Additional information:

 Precision machines spider assembly
 Adjustable blade arms for fine tolerance
 Tritube handle for strength and protection of operating cables
 Dual safety stops

Available also in Diameter 75cm or HONDA GX270, 9 HP motor.

This model can be also supplied as 90 CM ELECTRIC 230V 50 HZ, 2.2 Kw.

CE Certified.
