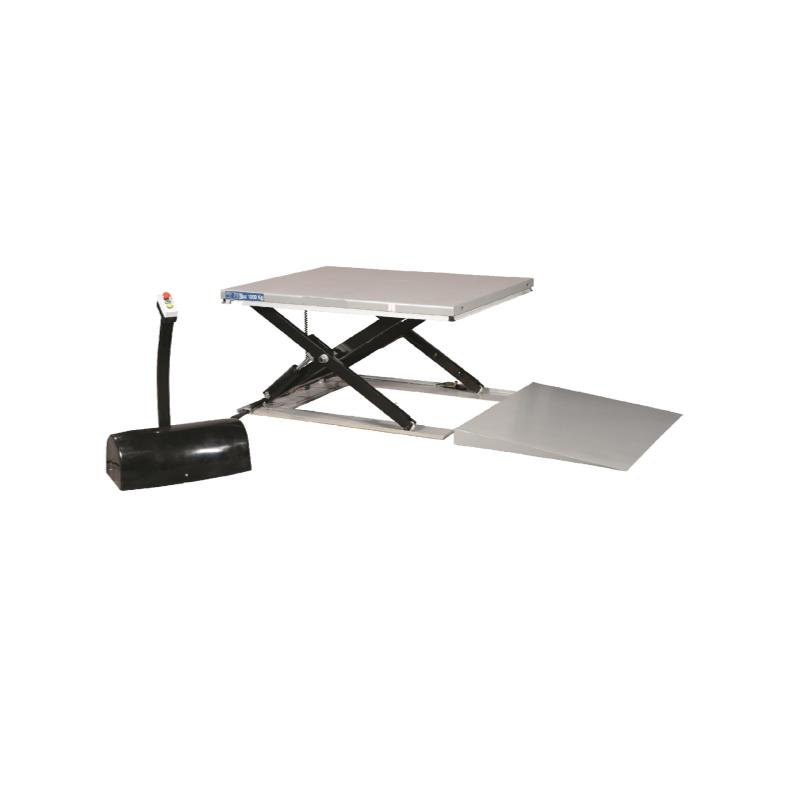

Stationary Low Profile Lift Table 1600×1000mm, 1500kg – Lifting Height 105–870mm

Stationary Low Profile Lift Table 1600×1000mm, 1500kg – Lifting Height 105–870mm

This low-profile stationary lift table is engineered for operations that require a durable, high-strength lifting solution without pit installation. With a lowered height of just 85 mm, it allows easy loading using the included moveable ramp, making it ideal for pallet trucks, warehouse logistics, production lines, and industrial workstations.

Constructed from solid steel plates, the table delivers exceptional stability and long-term reliability. The unit features a separate IP54 hydraulic power pack for easier service access and improved cooling. Equipped with a 380V/16A 3-phase power supply, the lift table provides smooth and efficient lifting with a rise time of 20 seconds.

Fully compliant with EN1570-1 and ANSI/ASME safety standards, this lift table is built for safe, continuous industrial operation.

Key Features

• Capacity: 1500 kg

• Low-profile design – only 85 mm lowered height

• Lifting height range: 105–870 mm

• Large table area: 1600 × 1000 mm

• Robust steel construction for maximum durability

• External hydraulic power pack (IP54 rated)

• Moveable ramp included for easy loading

• Complies with EN1570-1 and ANSI/ASME standards

• Smooth and quiet lifting with 3-phase 380V/16A motor

Technical Specifications
