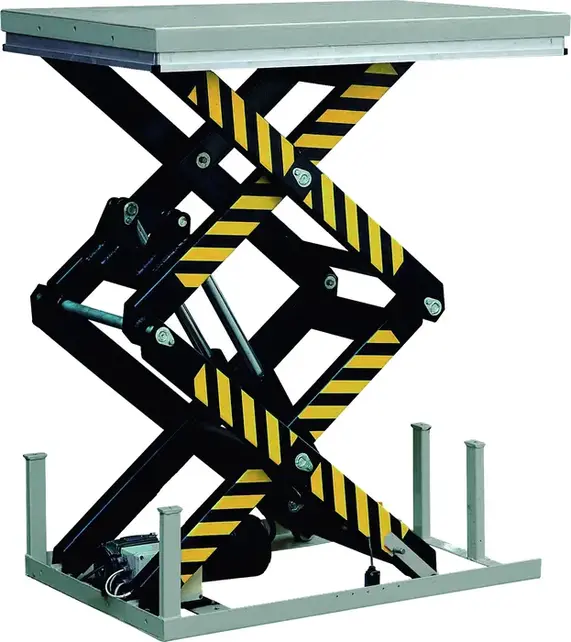

Stationary Electrical Lifting Table, Up to 1 ton, with Double Scissors up to 1780 mm
Platform Size : 1300 mm x 820 mm, Salesbridges Double Scissors Electrically lift loads of up to 1t to the desired level up to a maximum of 1780mm. Mainly used for loading or stocking in Warehouses, Forwarding Agencies or in Industrial Companies.
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Stationary Lifting Table SBHTHD1000 – Double Scissor
1000 kg Capacity | High Lift Industrial Platform
Heavy-Duty Lifting for High Reach Applications
The Salesbridges SBHTHD1000 Double Scissor Lift Table is engineered for high lifting heights and handling long goods in industrial environments. Designed for fixed floor installation, this robust lift table delivers maximum stability, safety, and performance for demanding operations.
With a lifting range up to 1780 mm, it is ideal for production lines, assembly stations, and warehouse operations requiring elevated working positions.
Key Features
- Capacity: 1000 kg
- Double scissor design for extended lifting height
- Lifting height: 305 – 1780 mm
- Stroke length: 1475 mm
- Table size: 1300 × 820 mm
- Designed for floor fixing with bolted joints
- Low-noise hydraulic power pack
- Maintenance-free pivot bushings
- Internal drainage lift cylinder
- Overload protection valve
- Safety valve (hose burst protection)
- Emergency stop and key switch (standard)
- Complies with EN 1570-1
Technical Specifications
| Specification | Value |
|---|---|
| Type | Double Scissor |
| Capacity | 1000 kg |
| Table Area (L × W) | 1300 × 820 mm |
| Base Frame Size | 1250 × 680 mm |
| Lifting Height | 305 – 1780 mm |
| Stroke Length | 1475 mm |
| Lifting Time | 20 – 25 s |
| Motor | 380V / 50Hz – 1.5 kW |
| Optional Motor | 2.2 kW (380V) |
| Weight | 210 kg |
| Power Supply | 3-phase 380V / 16A |
Construction & Design
- Double scissor mechanism:
- Provides high lifting range
- Ensures stability under load
- Safety clearance:
- Prevents injury between scissor arms
- Hydraulic system:
- Smooth and controlled lifting
- Structure:
- Heavy-duty steel frame
Safety Features
- Hose burst safety valve
- Overload protection system
- Emergency stop button
- Key switch operation
- Top position safety switch
- Adjustable limit switch for max height
- 4 end-stops with lifting loops (for pit installation)
Functional Advantages
- Ideal for high lifting operations
- Suitable for long or bulky goods
- Stable and safe stationary design
- Quiet operation for indoor environments
- Low maintenance requirements
Applications
- Production and assembly lines
- Warehouses and logistics centers
- Industrial workstations
- Maintenance and repair areas
- Pit-installed lifting systems
Installation
- Designed for fixed installation (bolted to floor)
- Can be:
- Installed on floor
- Integrated into pit for flush loading
Advantages
- High lifting height (up to 1780 mm)
- Robust double scissor construction
- Advanced safety features
- Quiet and efficient hydraulic system
- Compliant with European safety standards
Contact Us for Orders & Technical Support
- Email: [email protected]
- Call: +971 44058154
- WhatsApp: +971543554679
Upgrade your lifting operations with a reliable high-lift solution. Contact Salesbridges today for pricing and customization.
| Brand | Salesbridges |
| Article code | SBHTHD1000 |
| SKU | SBHTHD1000 |
| EAN | 9505498451965 |
