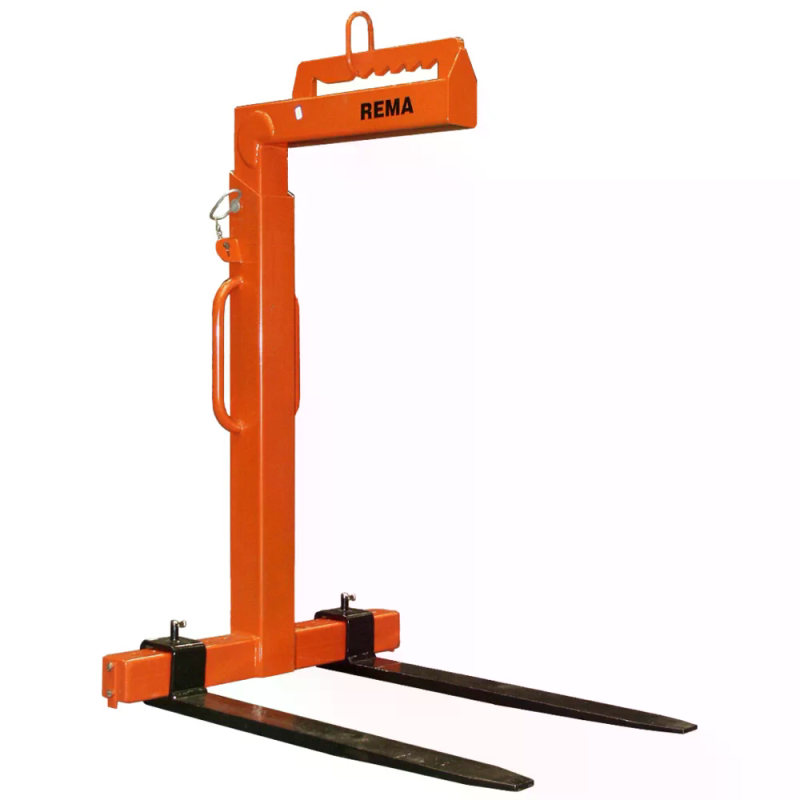

Pallet Hook with Manual Balancing – 1 to 5 Ton CE Certified
RPHM pallet hooks are designed for the safe and efficient transport of palletized loads using cranes. These models feature adjustable forks and height, making them ideal for various pallet sizes and load types. Constructed by EN 13155 and EN 12100 standar
- Excellent quality
- Large product range
- Smart sollutions
- More information? Contact us about this product
- Add to comparison list
Pallet Hook with Manual Balancing – 1 to 5 Ton CE Certified
RPHM pallet hooks are designed for the safe and efficient transport of palletized loads using cranes. These models feature adjustable forks and height, making them ideal for various pallet sizes and load types. The manual balancing mechanism allows the center of gravity to be easily aligned, ensuring stability during lifting. Constructed by EN 13155 and EN 12100 standards and CE marked for safety compliance.
Features:
-
Manual balancing system for stable lifting.
-
Adjustable fork width and height.
-
Designed for crane handling of palletized loads.
-
Sturdy construction for industrial environments.
-
Complies with EN 13155 and EN 12100.
-
CE Marked.
Model Specifications:

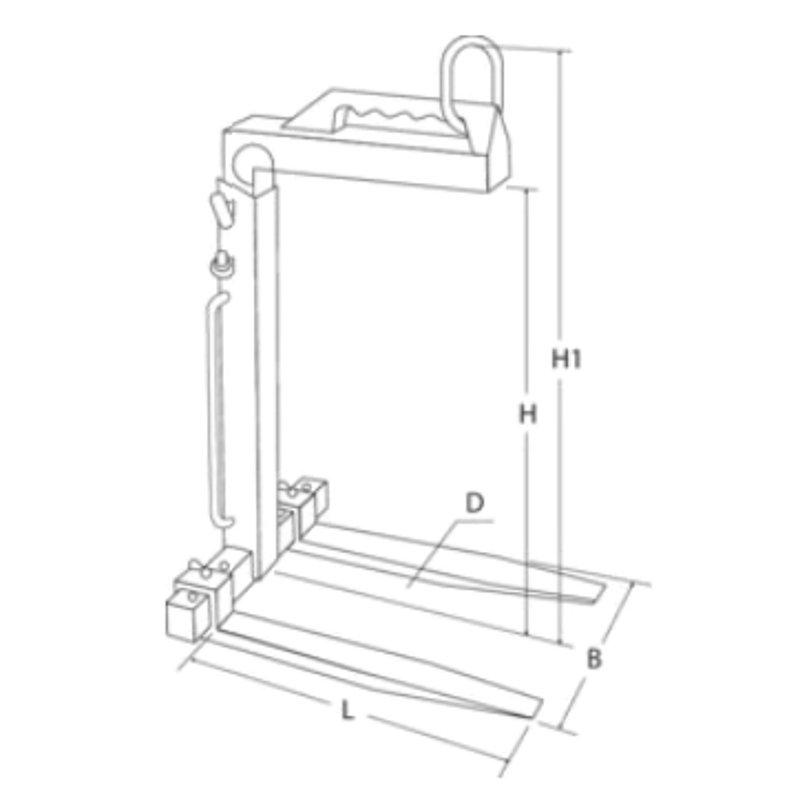

| Model | WLL (Ton) | Fork Size (mm) | Eye (mm) | Width B (mm) | D (mm) | Height Range H (mm) | Total Height H1 (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| RPHM-1 | 1 | 1000 x 100 x 30 | 100 x 80 | 350–900 | 100 x 30 | 1300–2000 | 1700–2400 | 130 |
| RPHM-2 | 2 | 1000 x 120 x 40 | 100 x 80 | 400–900 | 120 x 40 | 1300–2000 | 1700–2400 | 200 |
| RPHM-3 | 3 | 1000 x 120 x 50 | 120 x 100 | 450–900 | 120 x 50 | 1300–2000 | 1700–2400 | 250 |
| RPHM-5 | 5 | 1000 x 150 x 60 | 136 x 120 | 530–1000 | 150 x 60 | 1300–2000 | 1700–2450 | 370 |
| Brand | Salesbridges |
| Article code | SB3258010 |
| SKU | SB3258010 |
| EAN | 9501767734425 |
